Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

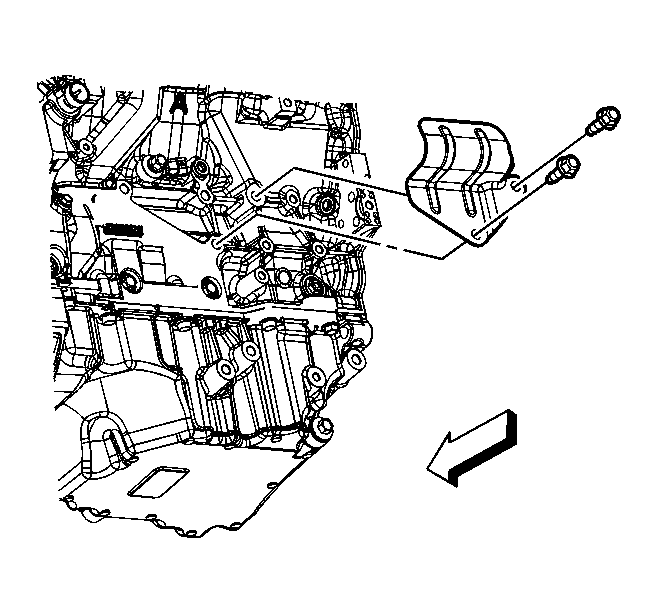

    Fig 1: Identifying Rear Exhaust Manifold Heat Shield Bolts
    GM1837367Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Position the rear exhaust manifold heat shield to the engine and install the bolts. Tighten the bolts to 50 N.m (37 lb ft).
  2. Lower the vehicle.
