Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

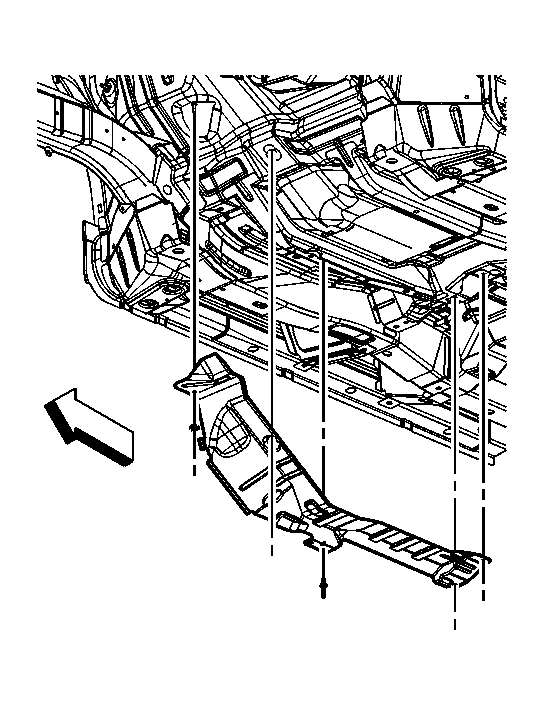

    Fig 1: Identifying Dash Panel Heat Shield
    GM1837368Courtesy of GENERAL MOTORS CORP.
  1. Position the dash panel heat shield to the underbody, installing the shield over the stud.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the dash panel heat shield nut and tighten to 10 N.m (89 lb in).
  3. Install NEW rivets.
  4. Lower the vehicle.
