Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Fresh Air PCV Line
    GM1828852Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine cover. Refer to Fuel Injector Sight Shield Replacement .
  2. Remove the air cleaner outlet duct.
  3. Reposition the fresh air positive crankcase ventilation (PCV) line from the air cleaner inlet tube.
    4. Fig 2: Identifying Electronic Throttle Control (ETC) Electrical Connector
    GM1828897Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electronic throttle control (ETC) electrical connector.
    5. Fig 3: Identifying PCV Line
    GM1828339Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the PCV line from the top of the intake manifold and reposition aside.
    6. Fig 4: Identifying EVAP Canister Purge Line
    GM1828971Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the evaporative emissions (EVAP) canister purge line and reposition aside.
    7. Fig 5: Identifying Bleed Pipe Bolts & Clamp
    GM1829016Courtesy of GENERAL MOTORS CORP.
  7. Remove the bleed pipe bolts (1).
  8. Remove the bleed pipe hose clamp (2).
  9. Reposition the bleed pipe.
  10. Remove the brake booster vacuum hose from the intake manifold.
    11. Fig 6: Identifying Engine Harness Retaining Clips
    GM1829153Courtesy of GENERAL MOTORS CORP.
  11. Remove the engine harness retaining clips.

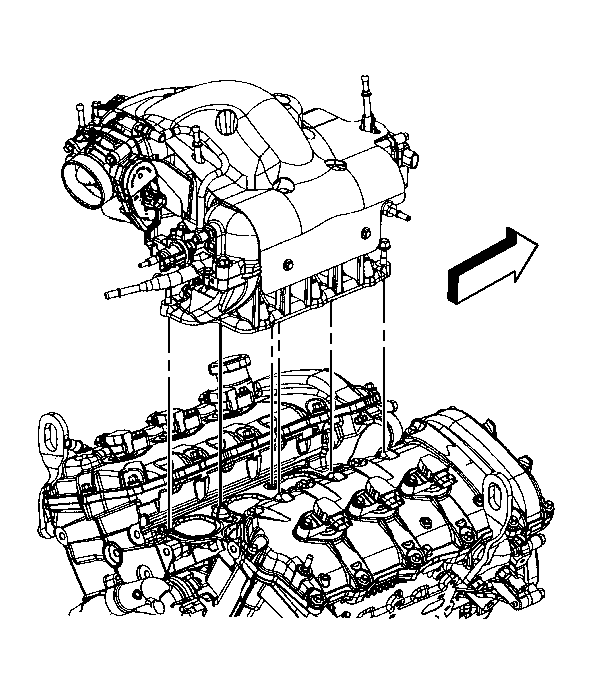

    12. Fig 7: Identifying Upper Intake Retaining Bolts
    GM1829177Courtesy of GENERAL MOTORS CORP.
  12. Remove the upper intake retaining bolts.
  13. Remove the upper intake manifold and gasket. Discard gasket.
  14. If replacing the upper intake manifold complete the following steps:
    1. Remove the EVAP purge solenoid valve. Refer to Evaporative Emission Canister Purge Solenoid Valve Replacement .
    2. Remove the throttle body. Refer to Throttle Body Assembly Replacement .
