Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

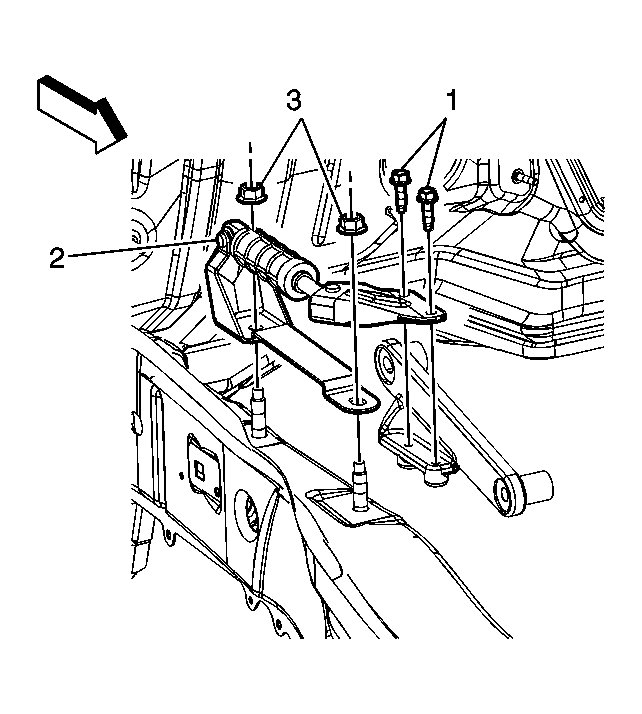

    Fig 1: Identifying Right Side Engine Mount Strut To Bracket Bolts
    GM1827957Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Position the strut (2) to the side rail, then install the strut to side rail nuts (3). Tighten the nuts to 110 N.m (81 lb ft).
  2. Install the engine mount strut to bracket bolts (1) and tighten to 25 N.m (18 lb ft).
  3. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
