Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

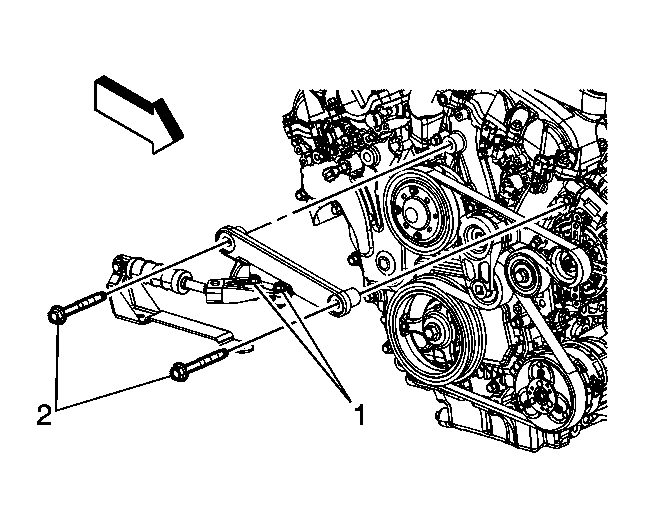

    Fig 1: Identifying Right Side Engine Mount Strut Bracket To Cylinder Head Bolts
    GM1827975Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Position the engine mount strut bracket.
  2. Install the engine mount strut bracket to cylinder head bolts (2) and tighten to 110 N.m (81 lb ft).
  3. Install the engine mount strut bracket bolts (1) and tighten to 25 N.m (18 lb ft).
  4. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
