Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Lower Engine Mount Bolts
    GM1827873Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount (3) to the lower bracket (4).

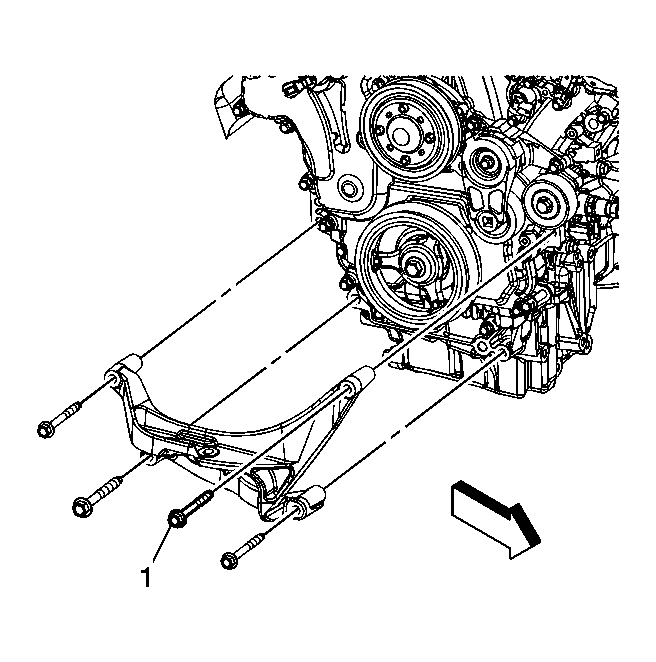

    2. Fig 2: Identifying Engine Mount Bracket & Bolts
    GM1827876Courtesy of GENERAL MOTORS CORP.
  2. Install the engine mount upper bracket and bolt (1) to the engine. Do not tighten the bolt.
  3. Install the ABS connector clip to the bracket.
    4. Fig 3: Identifying Lower Engine Mount Bolts
    GM1827873Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  4. Install the lower bracket bolts (2) and tighten to 50 N.m (37 lb ft).
  5. Tighten the upper engine mount bracket nuts (1) to 50 N.m (37 lb ft).

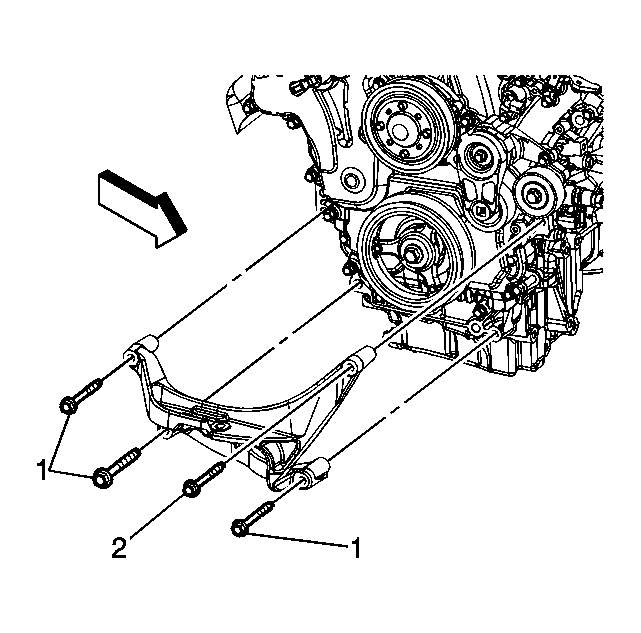

    6. Fig 4: Identifying Right Side Engine Mount
    GM1827856Courtesy of GENERAL MOTORS CORP.
  6. Install the upper engine mount bracket bolts (1) and tighten to 50 N.m (37 lb ft).
  7. Tighten the right upper engine mount bracket bolt (2) to 110 N.m (81 lb ft).
  8. Lower the vehicle.
  9. Remove the engine support. Refer to Engine Support Fixture .
  10. Install the drive belt. Refer to Drive Belt Replacement .
  11. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
