Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

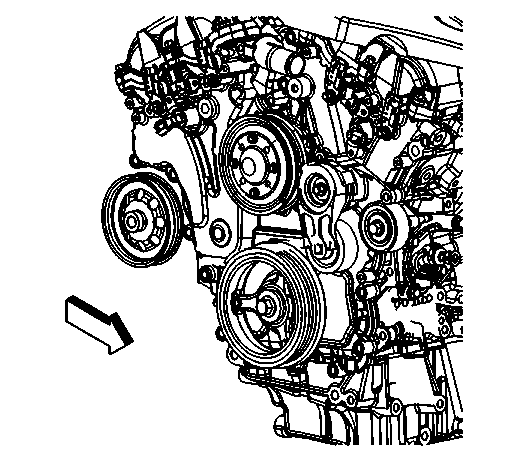

    Fig 1: Identifying Drive Belt Tensioner
    GM1826812Courtesy of GENERAL MOTORS CORP.
  1. Position the tensioner and install the tensioner bolts.
  2. Tighten the idler pulley.
  3. Install the drive belt. Refer to Drive Belt Replacement .
