Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Drive Belt Idler Pulley
    GM1826824Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt idler pulley.
  2. Position generator in place then install the generator bolts.
    3. Fig 2: View Of Generator Bolts
    GM1394079Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Tighten the generator and idler pulley bolt in sequence shown to 50 N.m (37 lb ft).

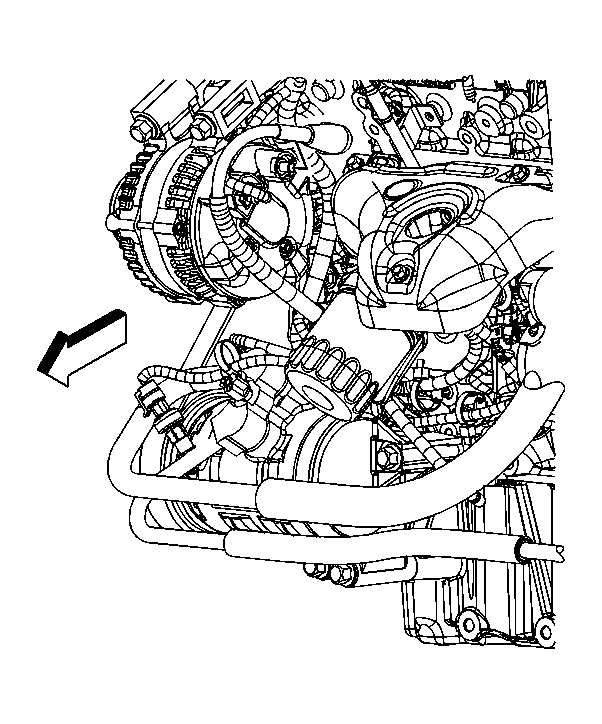

    4. Fig 3: View Of Battery Cable Boot
    GM1827004Courtesy of GENERAL MOTORS CORP.
  4. Install the battery cable.
  5. Install the battery cable boot.

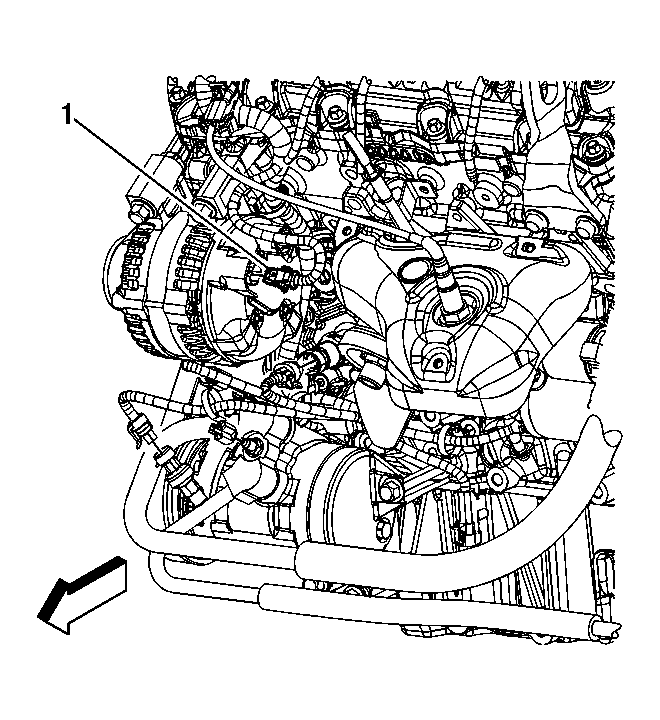

    6. Fig 4: Identifying Electrical Connector
    GM1827002Courtesy of GENERAL MOTORS CORP.
  6. Connect the generator electrical connector (1).
  7. Install the drive belt. Refer to Drive Belt Replacement .
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
