Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Lower the front suspension frame. Refer to Frame Replacement (LNJ) or Frame Replacement (LY7) .

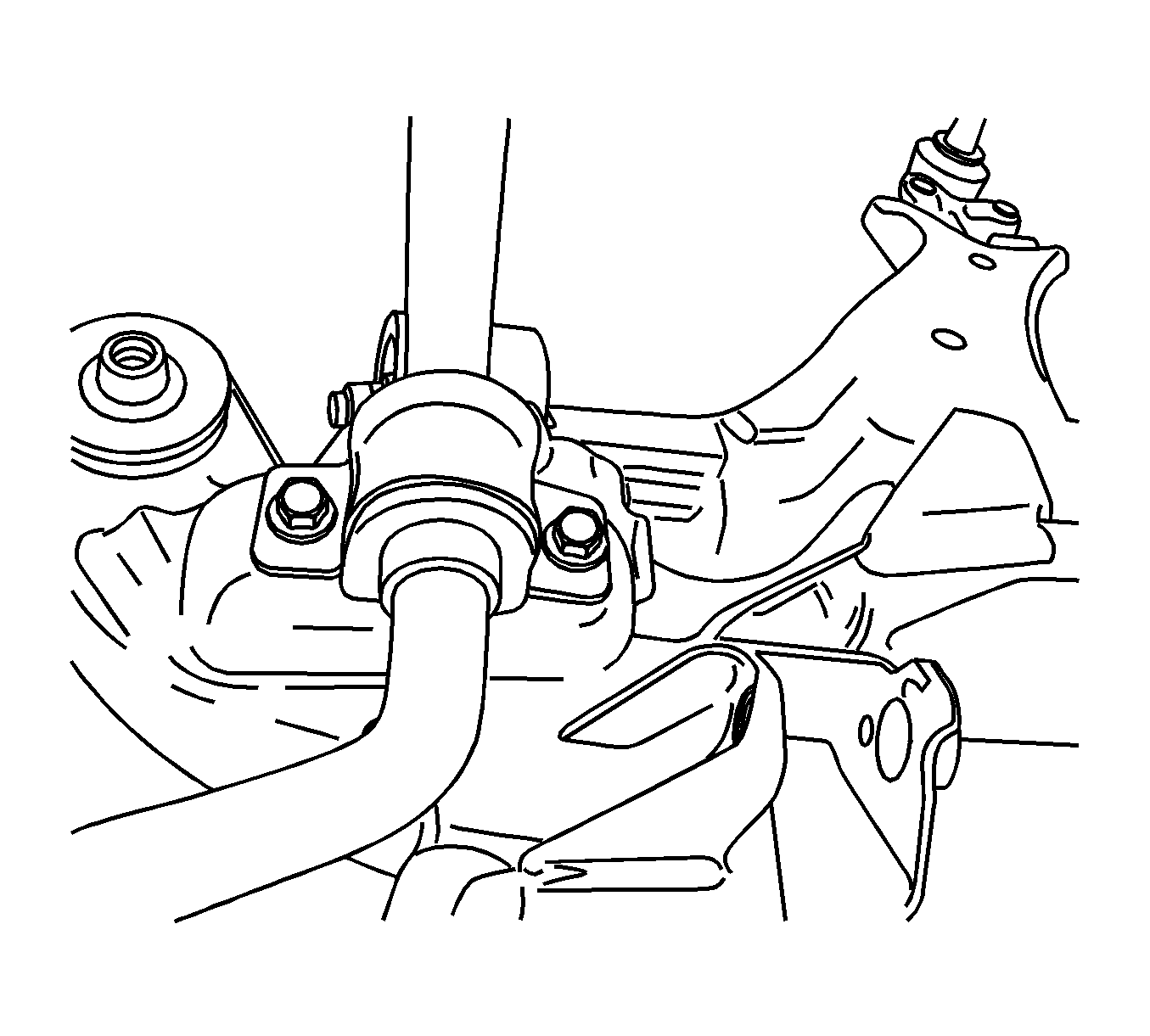

    3. Fig 1: Identifying Stabilizer Shaft Insulator Bracket Bolts
    GM1768834Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft insulator bracket bolts.
  4. Remove the stabilizer shaft assembly from the frame.
  5. Remove the stabilizer shaft insulator brackets.
  6. Remove the stabilizer shaft insulators.
