Front Side Door Window Switch Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

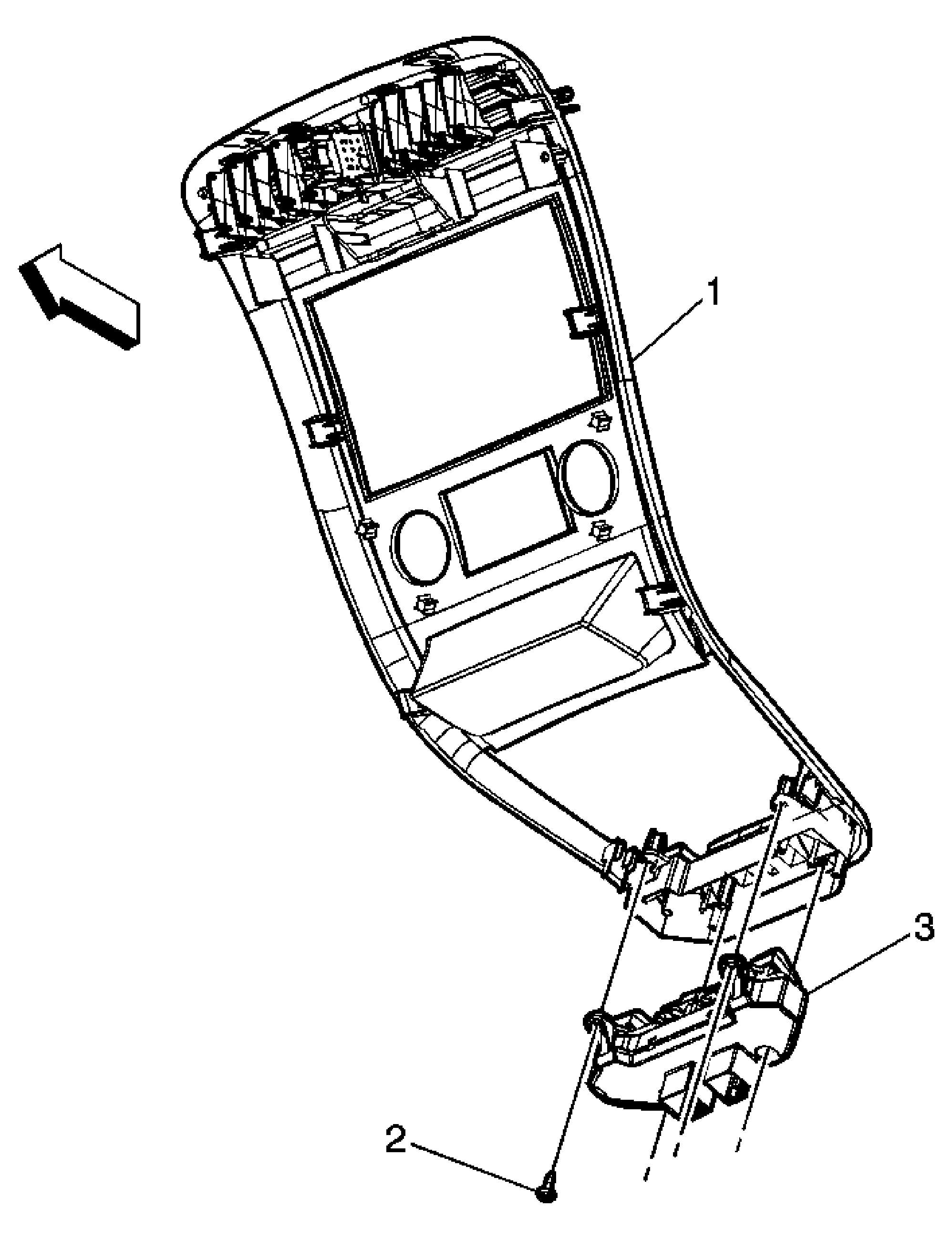

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Center Trim Bezel Refer to Instrument Panel Accessory Bezel Replacement |
| 2 | Front Power Window Switch Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 3 | Front Power Window Switch Assembly Procedure: Disconnect the electrical connectors. |
