Door Window Regulator Handle Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

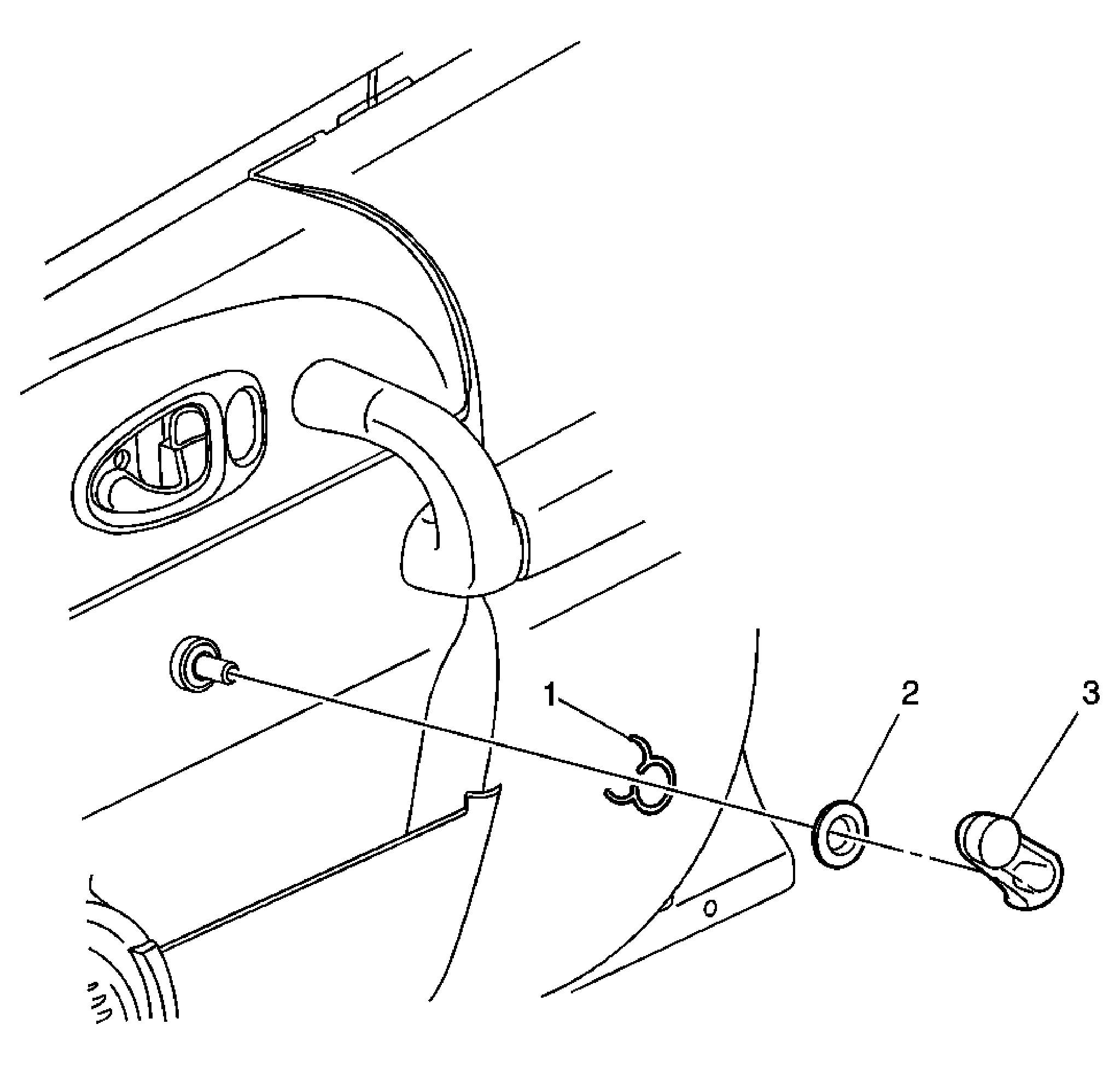

Fig 1: View Of Door Window Regulator Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Side Door Window Regulator Handle Retainer Clip
2	Side Door Window Regulator Bearing Plate
3	Side Door Window Regulator Handle Assembly Tip: Use the J 9886-01 Door Handle Clip Remover to remove the crank handle.
