Rear Wheelhouse Liner Panel Replacement

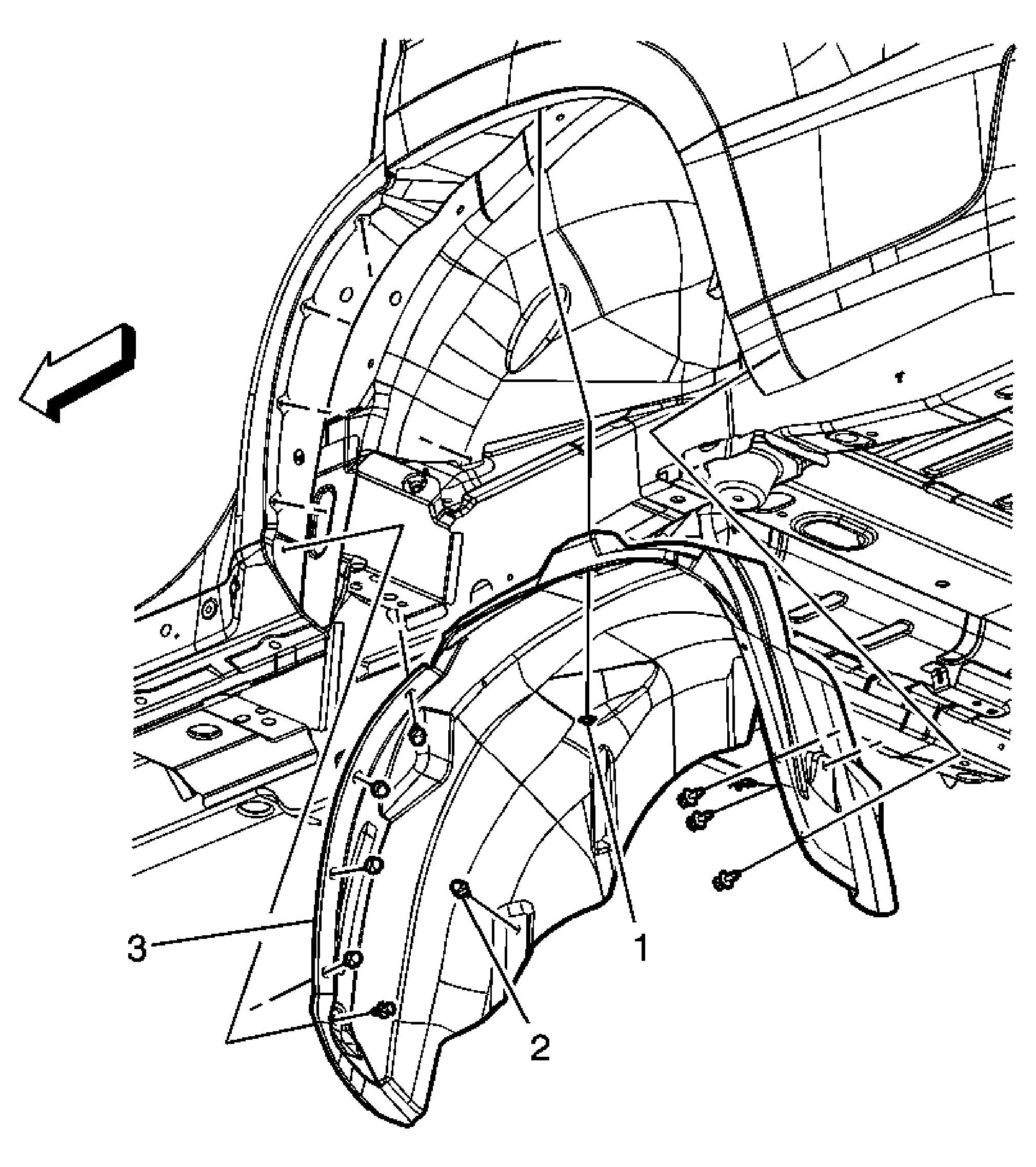

Fig 1: View Of Rear Wheelhouse Liner Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Rear Wheelhouse Liner Nut Tighten:  4 N.m (35 lb in)
2	Rear Wheelhouse Liner Retainer (Qty: 10)
3	Rear Wheelhouse Liner
