Transmission Control Lever Knob Replacement

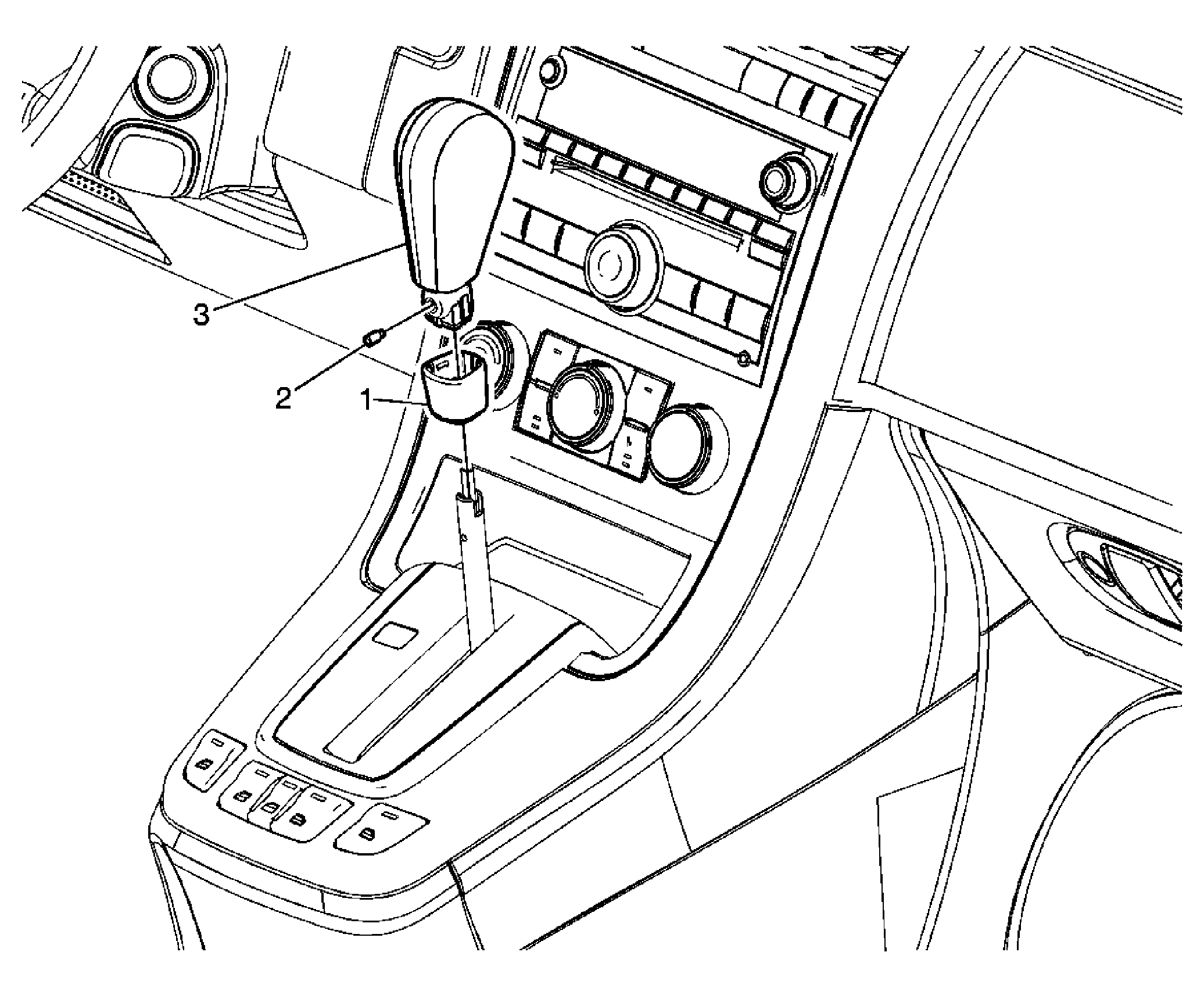

Fig 1: View Of Transmission Control Lever Knob

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Control Lever Knob Bezel Tip: Removal-Carefully insert a small flat-bladed tool between the bezel (1) and the shift lever knob (3). Apply careful downward pressure to the bezel to separate the bezel from the shift lever knob. The bezel will drop down approximately 13.0 mm (0.5 in) exposing the shift knob screw (2). Installation-Lift the bezel (1) up to the shift lever knob (3) until a click sound is heard indicating the bezel is secured to the shift knob.
2	Shift Control Lever Knob Screw NOTE: Refer to Fastener Notice . Procedure: Loosen the shift control lever knob screw approximately 4-5 turns. It is not necessary to fully remove the screw from the shift control lever knob. Tighten: 1.5 N.m (13 lb in).
3	Transmission Control Lever Knob
