Steering Column Trim Covers Replacement

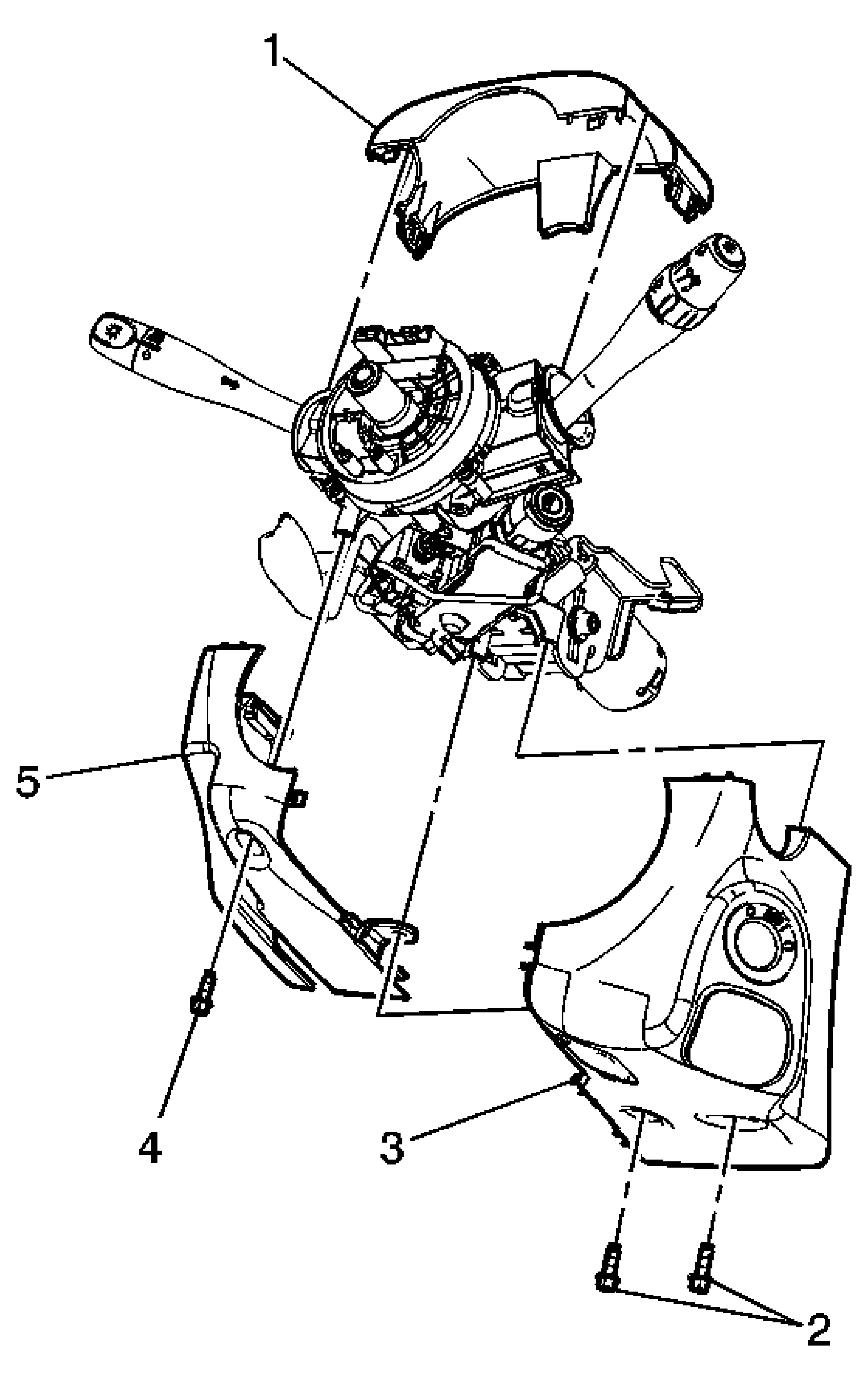

Fig 1: View Of Steering Column Trim Covers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column Upper Trim Cover Tip: Use gentle pressure to disengage the steering column upper trim cover.
2	Steering Column Lower Trim Cover Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
3	Steering Column Lower Trim Cover Tip: Use gentle pressure to disengage the steering column lower trim cover.
4	Steering Column Lower Trim Cover Screw Tighten: 2.5 N.m (22 lb in)
5	Steering Column Lower Trim Cover Tip: Use gentle pressure to disengage the steering column lower trim cover.
