Solstice L4-2.4L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Electrical Center Identification Views1
>>

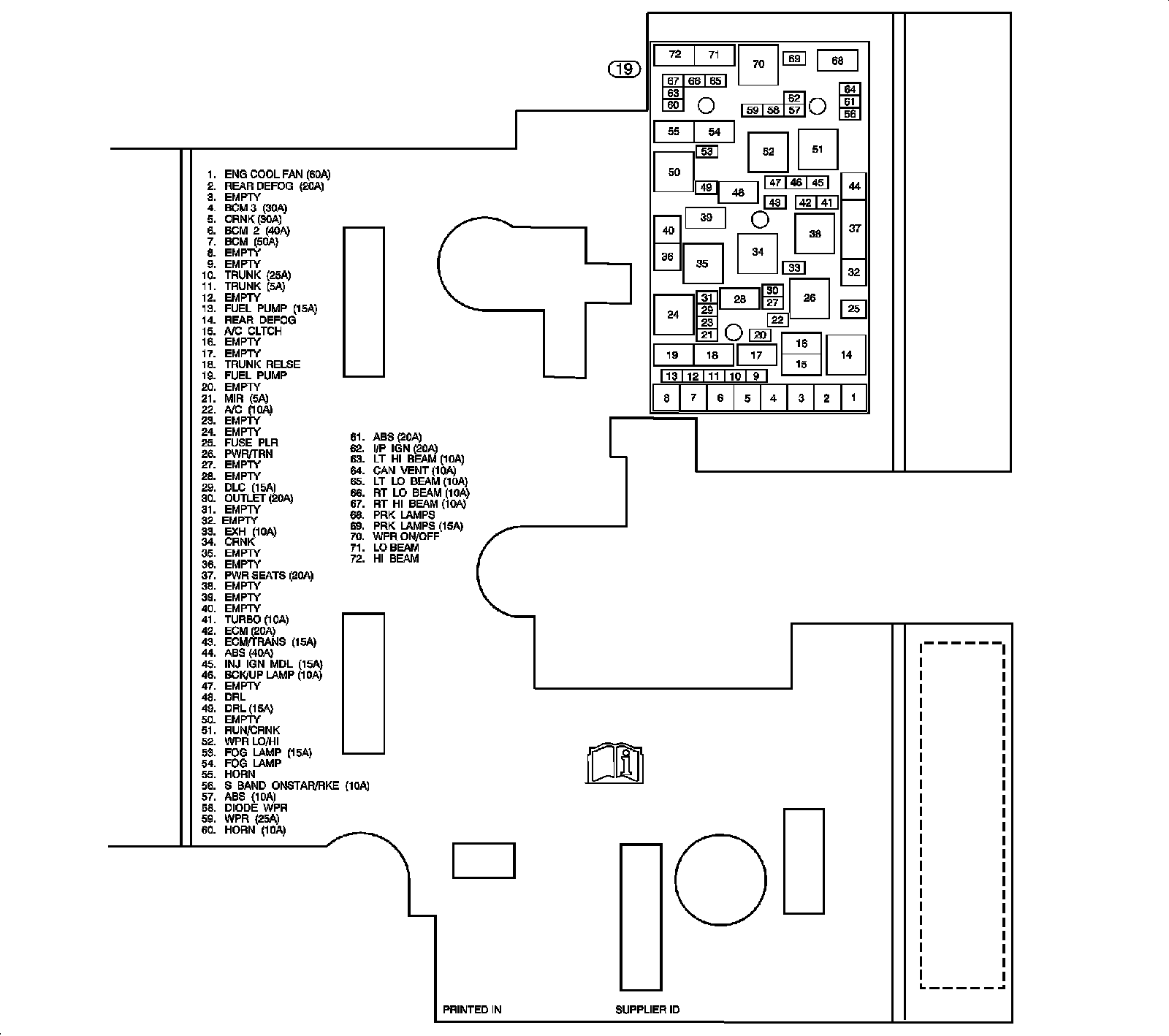

Fuse Block - Underhood Label (Lnf W/MA5)
Fuse Block - Underhood Label (Lnf W/MA5)
Electrical Center Identification Views
Fuse Block
- Underhood Label (LNF w/MA5)
