LEMON Manuals
: Even more car manuals for everyone
Home
>>
Pontiac
>>
2008
>>
Solstice L4-2.4L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>

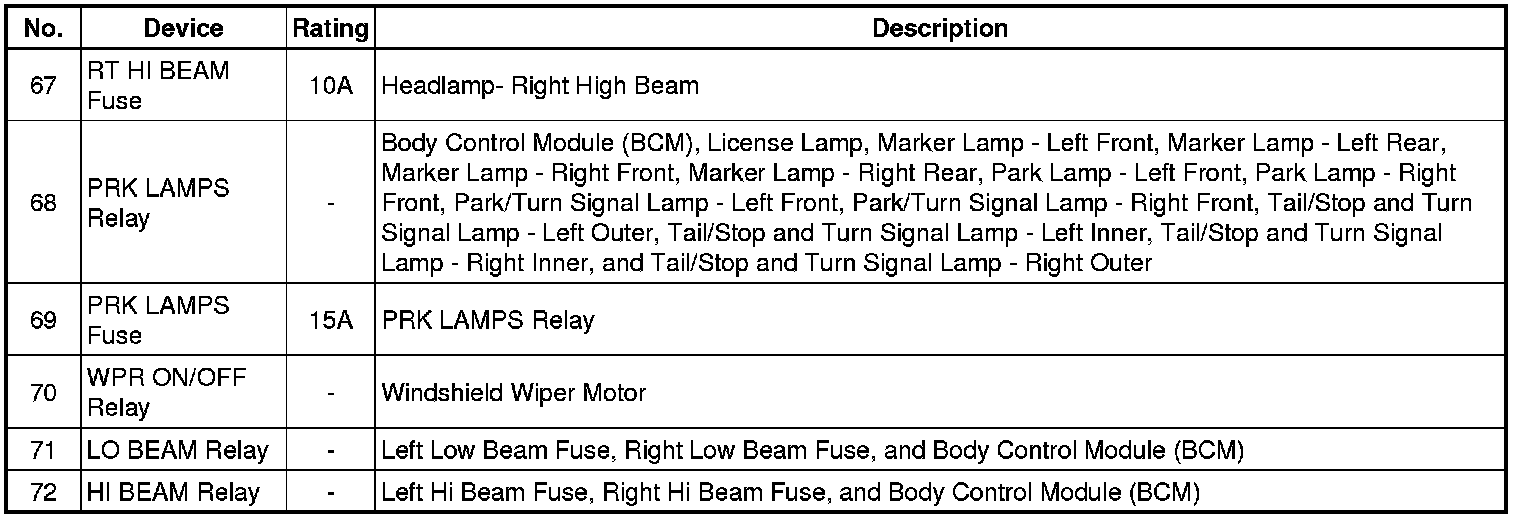

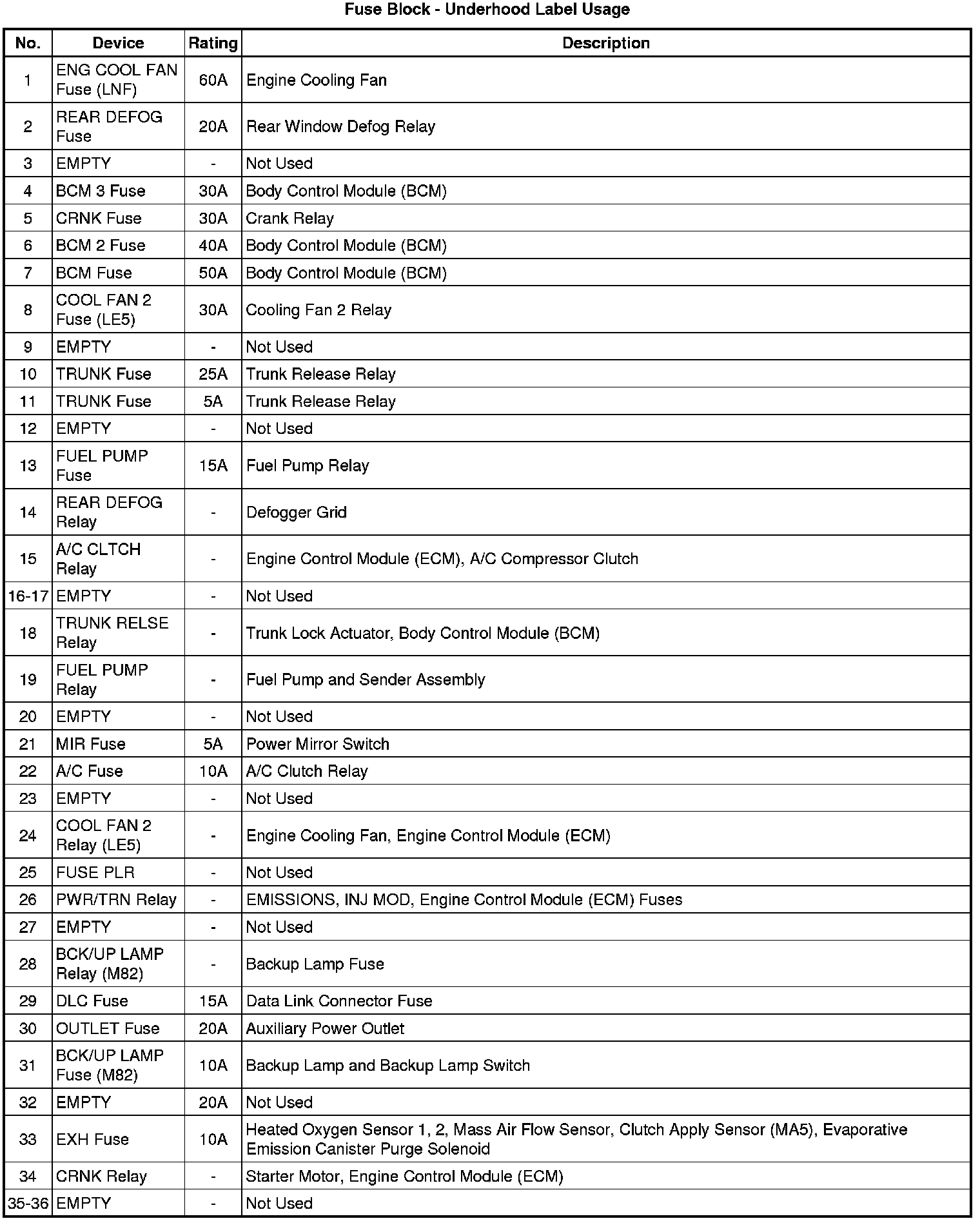

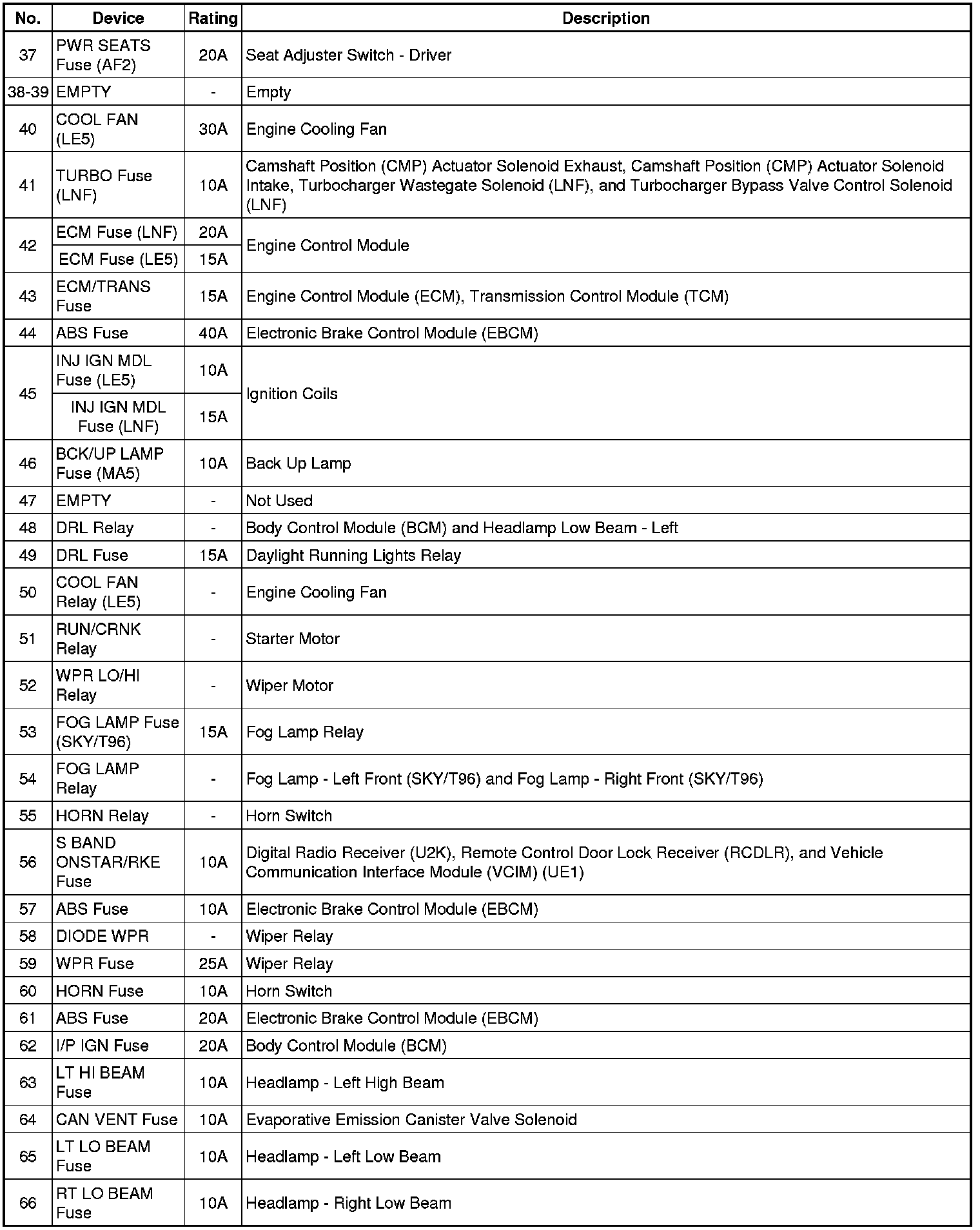

Fuse Block - Underhood Label (Lnf W/M82)
Fuse Block - Underhood Label (Lnf W/M82)

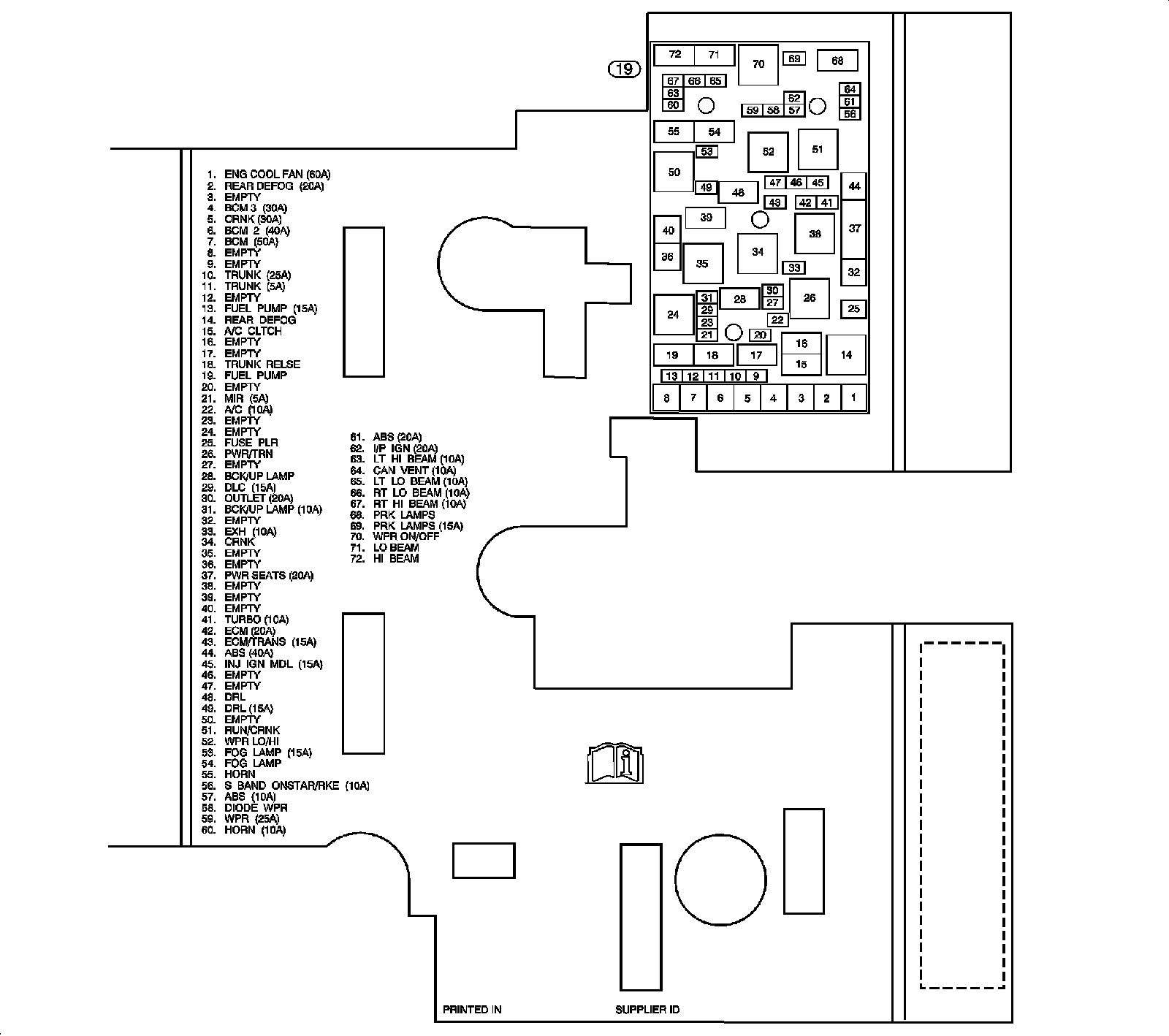

Electrical Center Identification Views
Fuse Block
- Underhood Label (LNF w/M82)
