Overdrive Clutch Housing Removal

Overdrive Clutch Housing Removal

Tools Required

J 45126 Snap Ring Pliers






Caution: Use care when removing or installing the snap ring. Be sure the J 45126 snap ring pliers are installed properly onto the snap ring or bodily injury may occur.

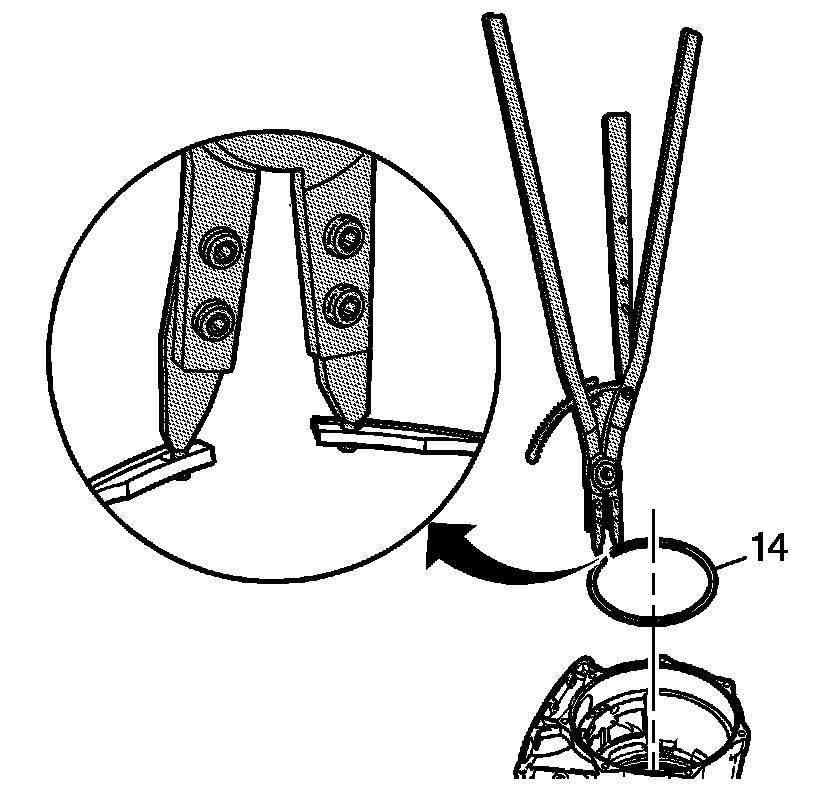

1. Use J 45126 to remove the snap ring (14).




2. Remove the overdrive clutch housing (15) from the case.
