Output Speed Sensor Removal



Output Speed Sensor Removal

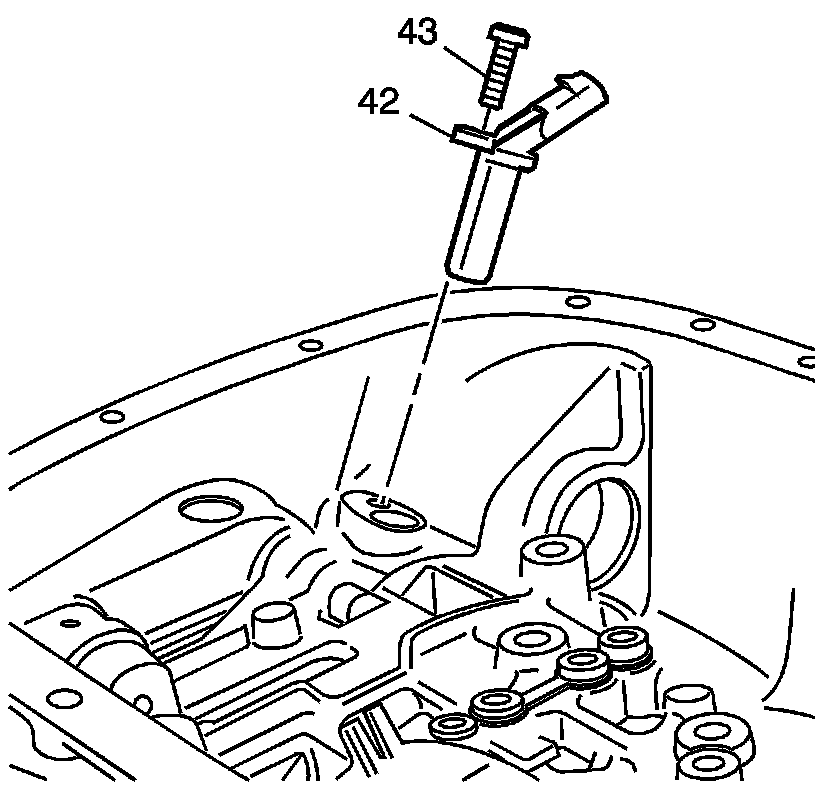

1. Remove the output speed sensor bolt (43).
2. Remove the output speed sensor (42) and spacer from the case.
