Holding Fixture Installation

Holding Fixture Installation

Tools Required

J 8763-B Holding Fixture and Base

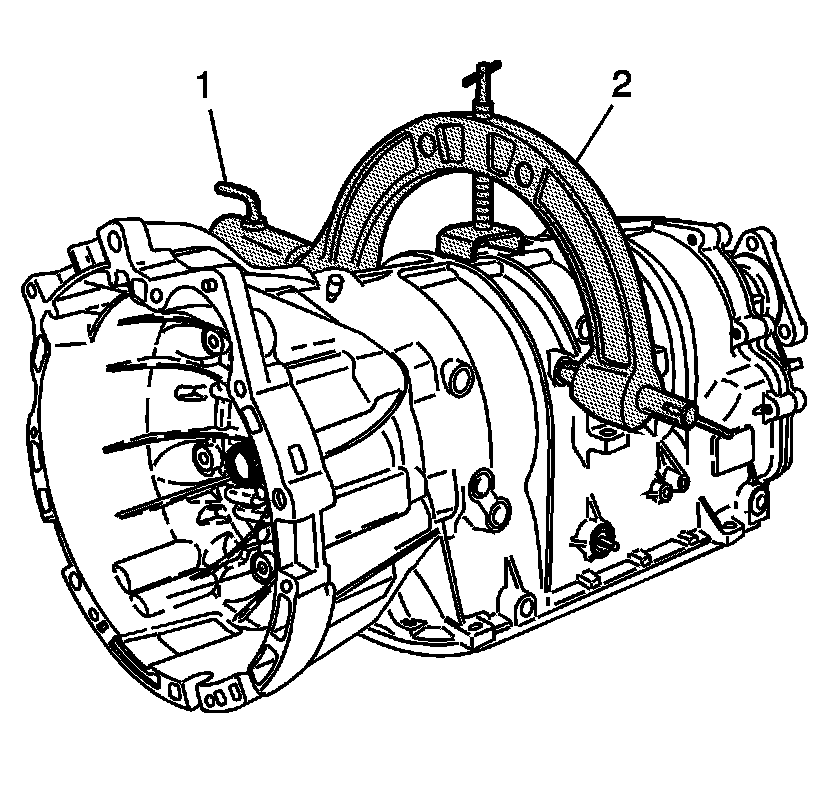

1. Install the J 8763-B onto the transmission assembly.
2. Install the transmission assembly into the tool base and use the pin to lock the holding fixture in place.
