Center Support Removal



Center Support Removal

Tools Required

J 45127 Center Support Removal Tool

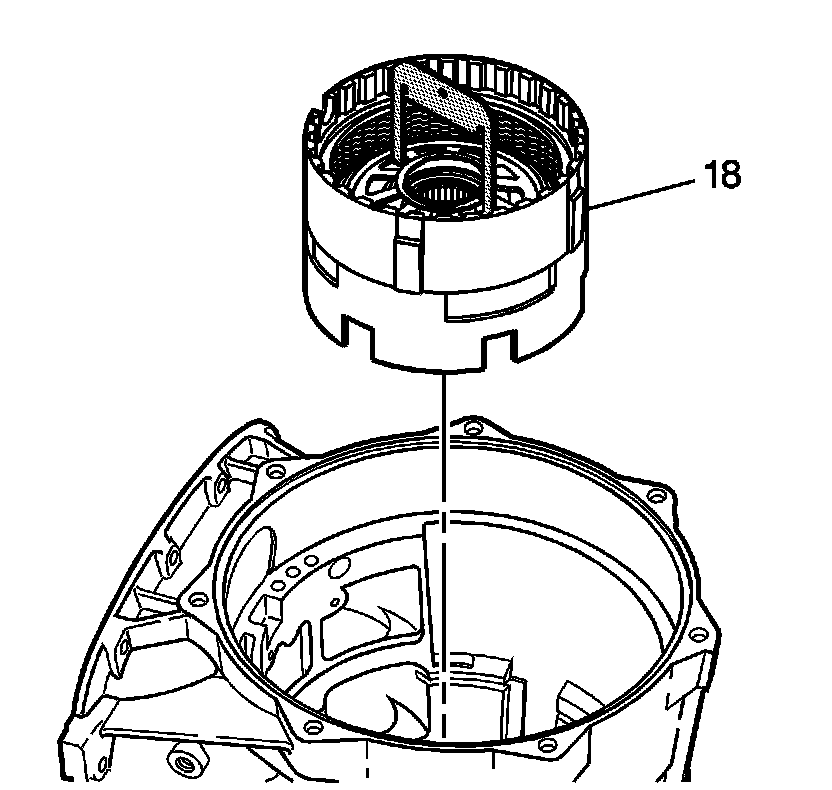

Use J 45127 to remove the center support (18) from the case.
