Intermediate Clutch Sprag Assemble



Intermediate Clutch Sprag Assemble

Tools Required

J 36850 Transjel Lubricant

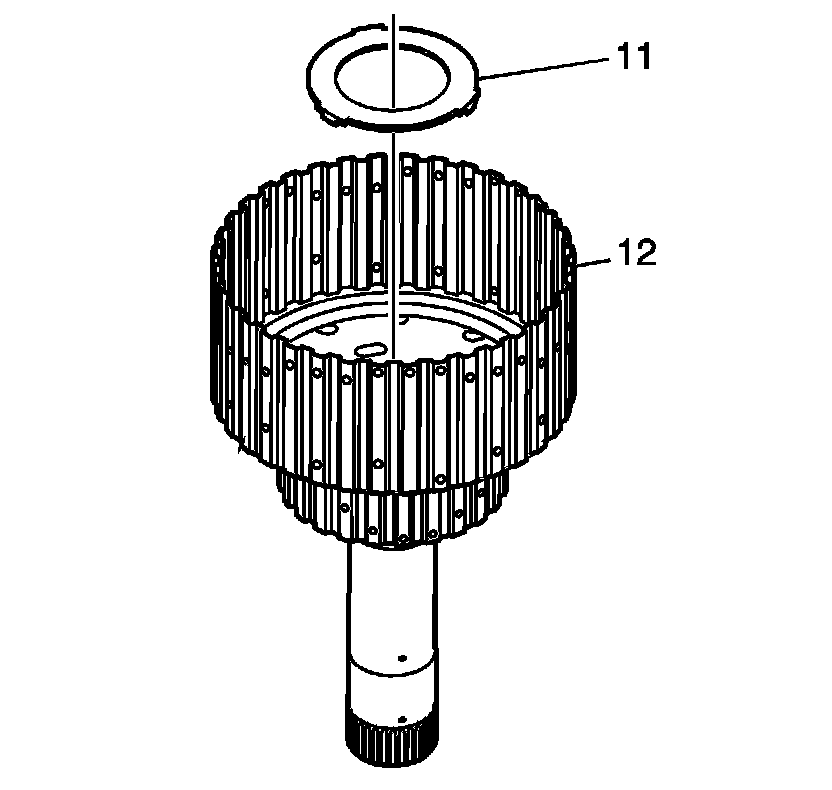

1. Apply J 36850 to the input and reaction carrier inner shaft thrust washer (11) and install into the intermediate sprag clutch assembly (12).




2. Install the intermediate sprag clutch assembly (12) into the case.
