Input Speed Sensor Installation



Input Speed Sensor Installation





1. Rotate the transmission 90 degrees.

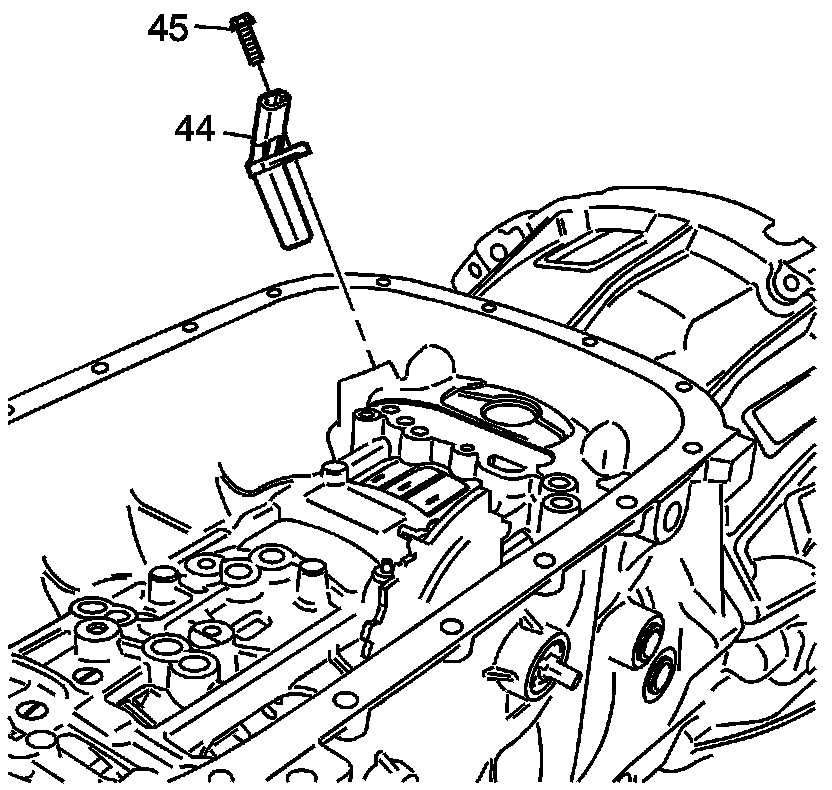

2. Install the input speed sensor (44) into the case.

Notice: Refer to Fastener Notice .

3. Install the input speed sensor bolt (45) into the case.

Tighten the input speed sensor bolt (45) to 11 N.m ( 8 lb ft).
