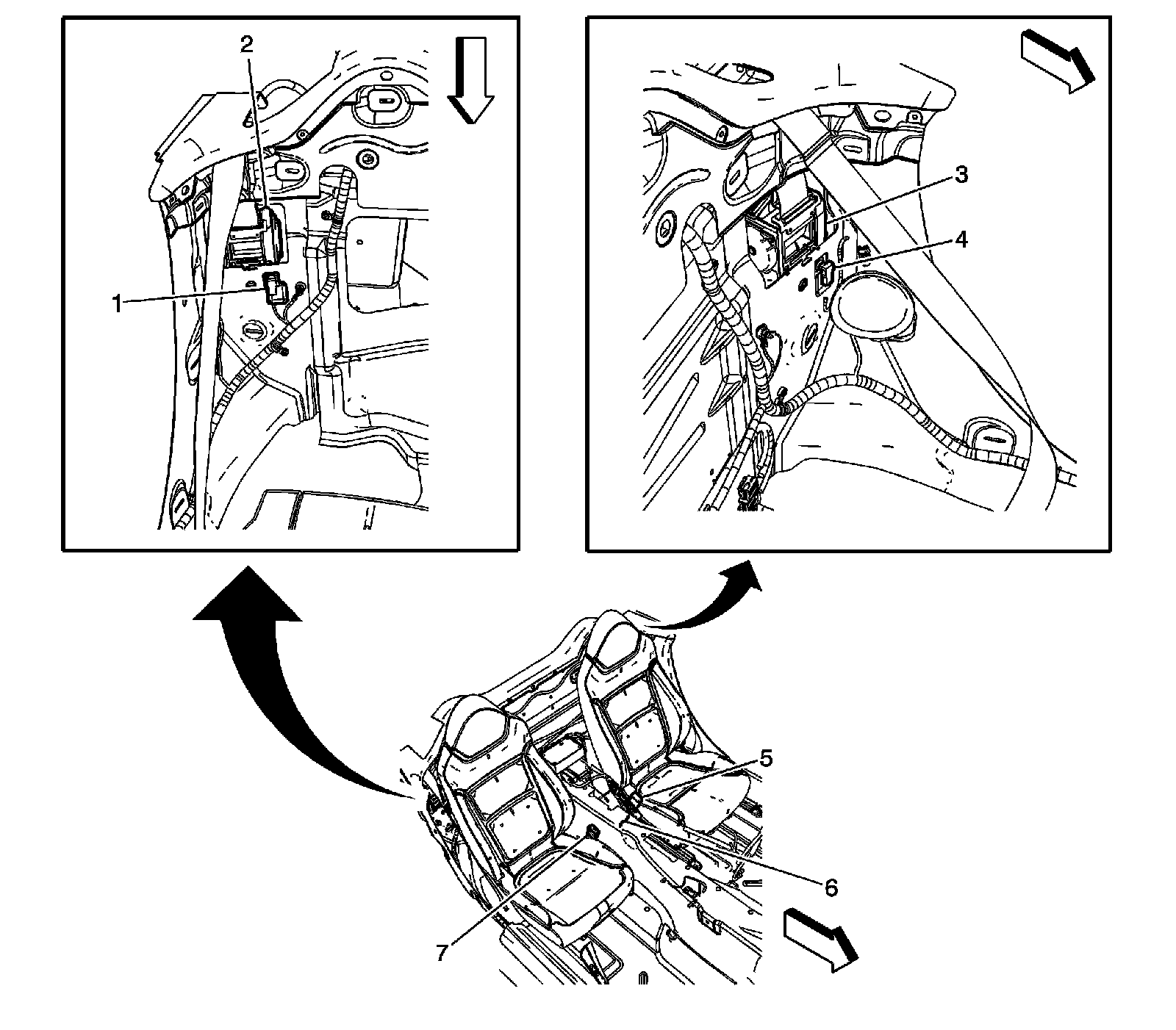

SIR Components

SIR Components




1 - Seat Belt Pretensioner - Passenger Connector
2 - Seat Belt Pretensioner - Passenger
3 - Seat Belt Pretensioner - Driver
4 - Seat Belt Pretensioner - Driver Connector
5 - Seat Belt Switch - Driver
6 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 - Seat Belt Switch - Passenger
