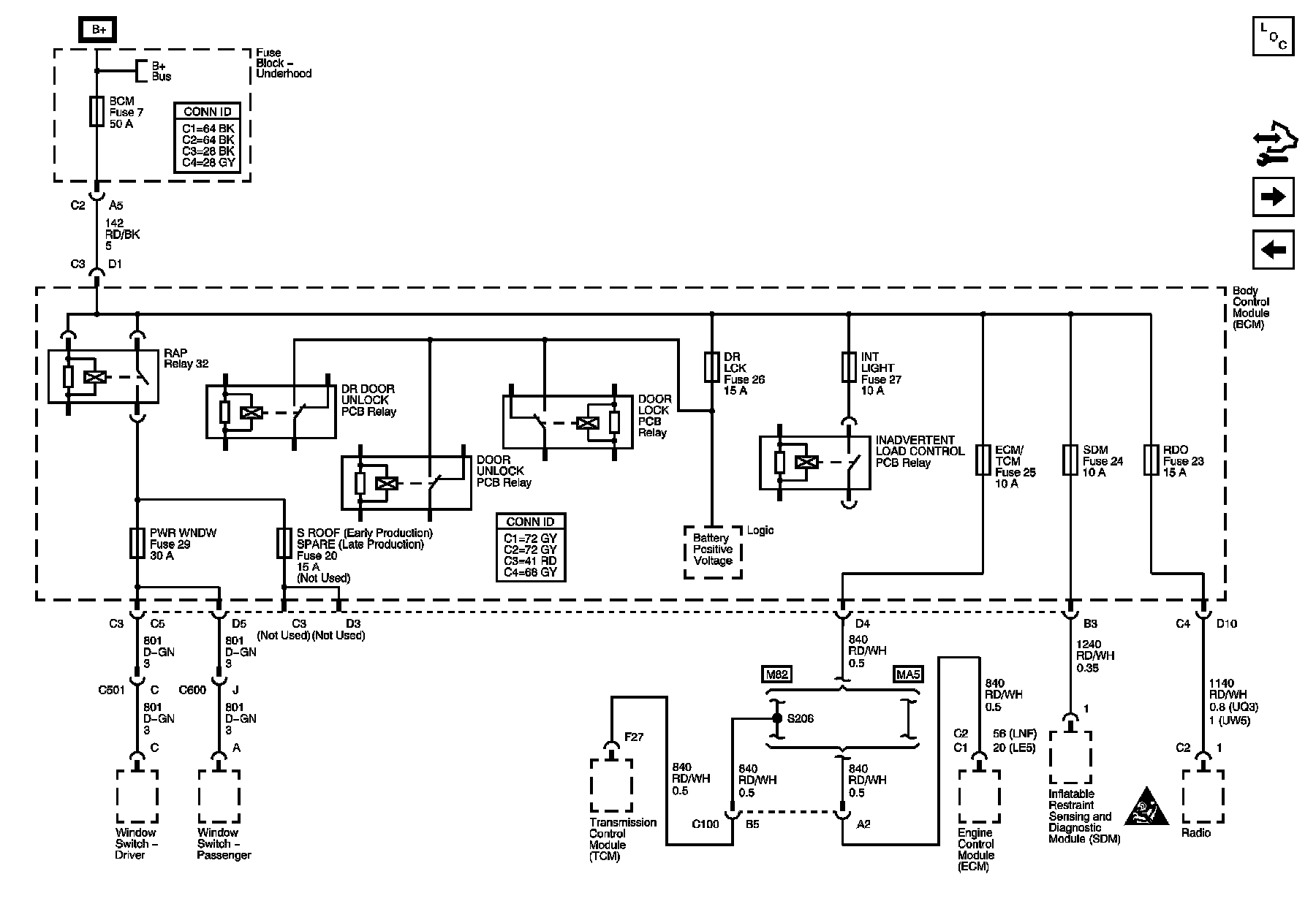

Home >> Pontiac >> 2008 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Power Distribution Diagram 7
