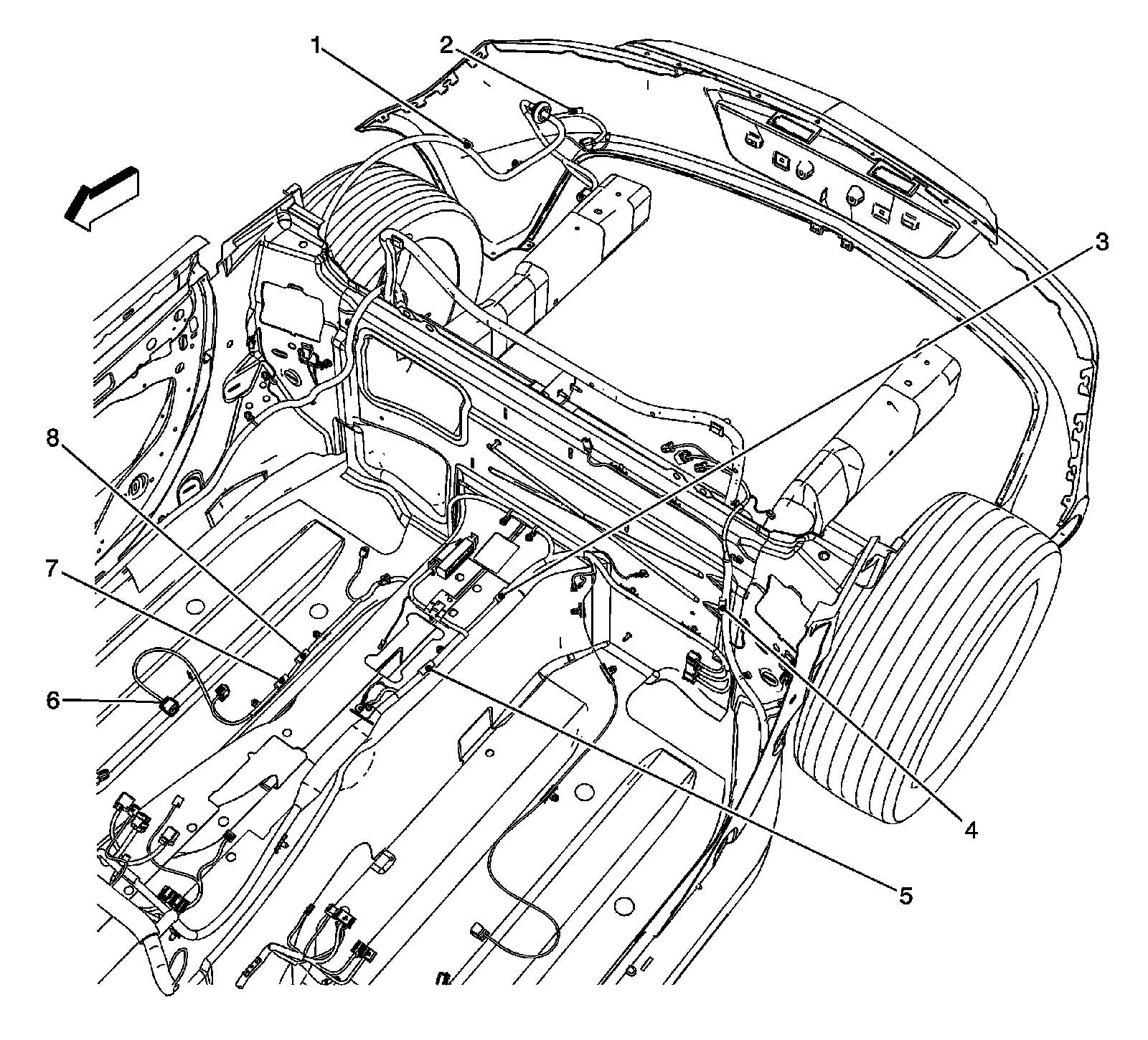

Instrument Panel Body Harness Splices - Rear Compartment Area

Instrument Panel Body Harness Splices - Rear Compartment Area






1 - J415
2 - J403
3 - J300
4 - J311
5 - J318
6 - X316
7 - J303 (JL4)
8 - J304 (JL4)
