Heating and Air Conditioning



HVAC Schematics

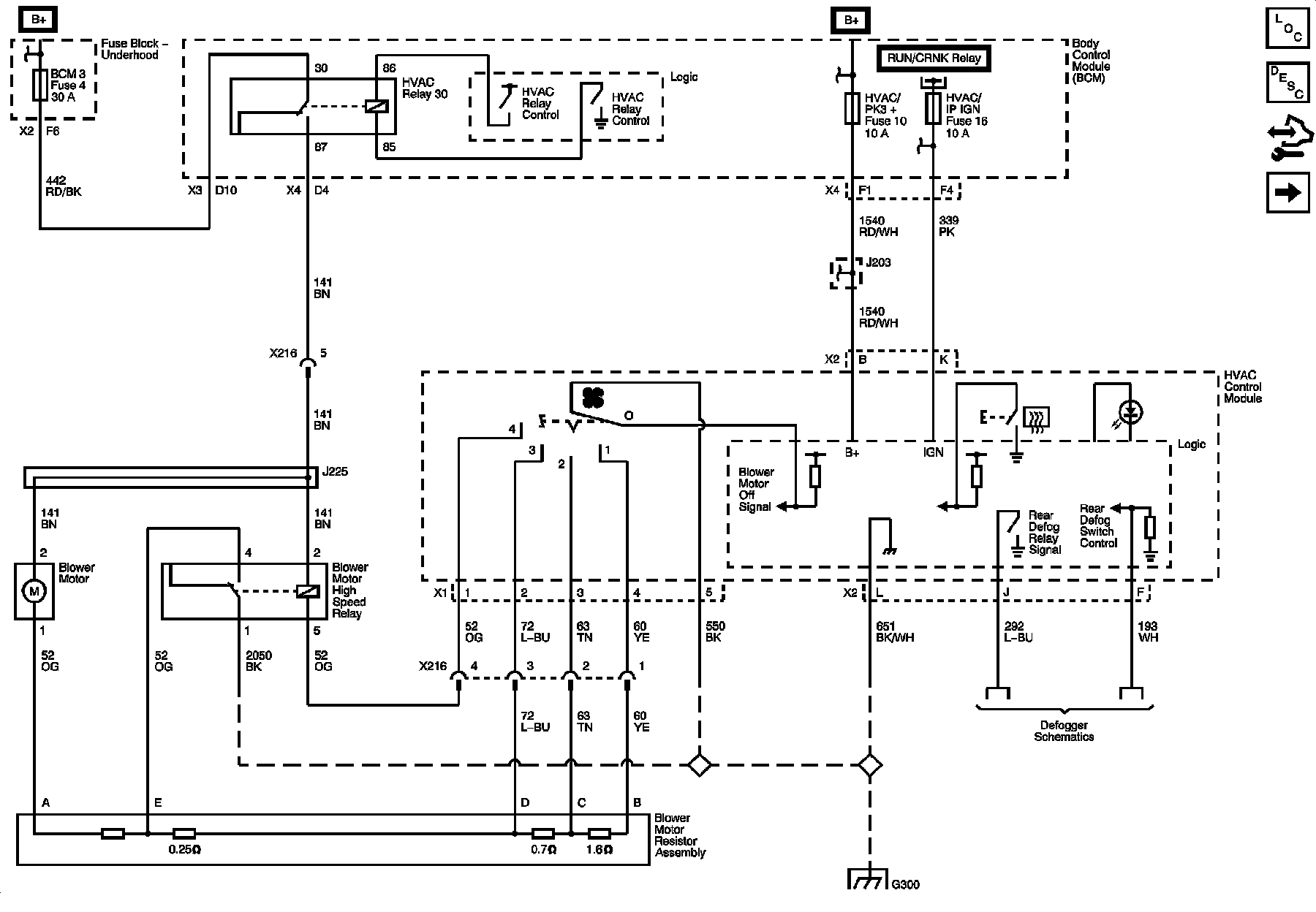

Ground, Power, and Blower Motor

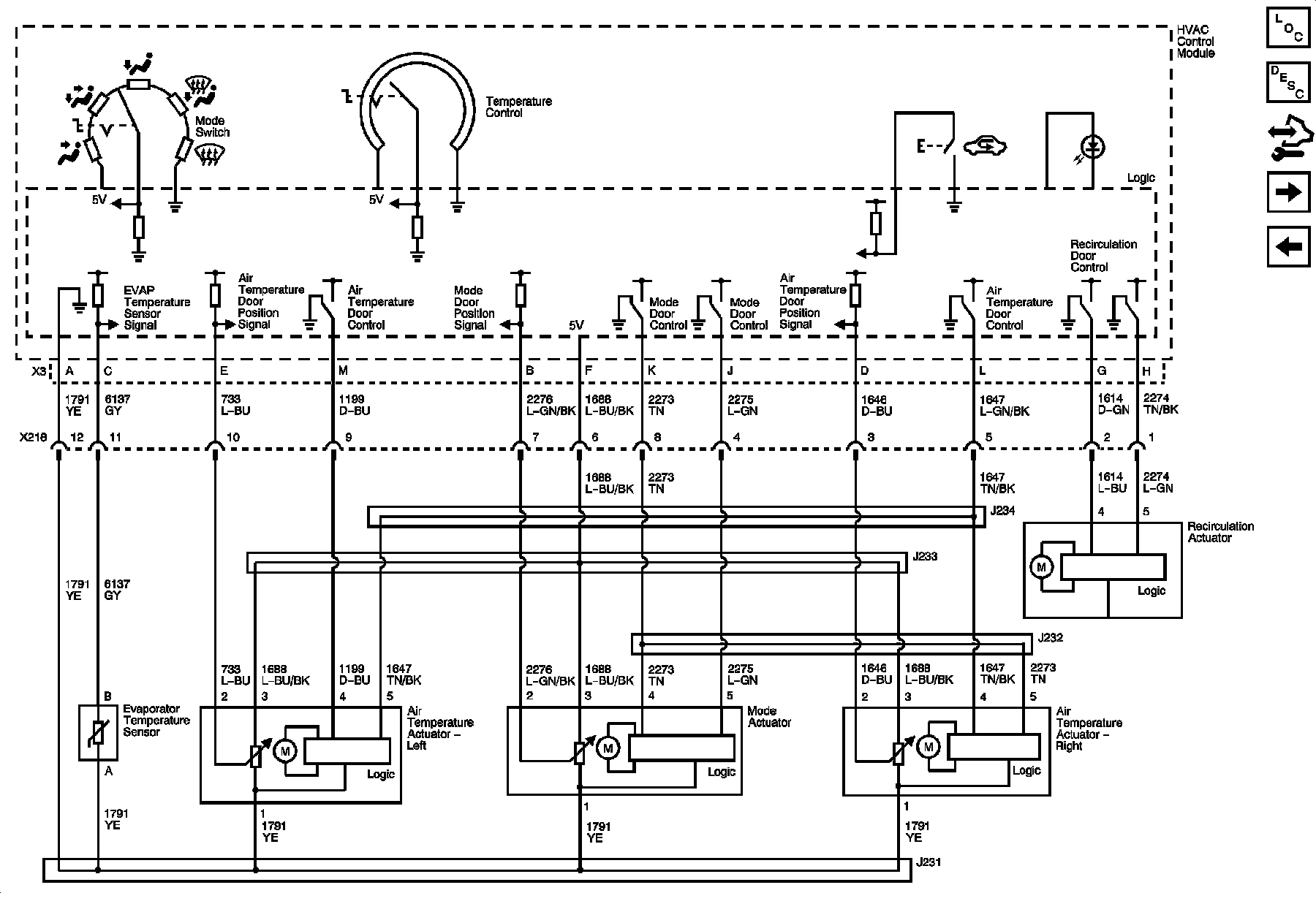

Air Delivery and Temperature Controls

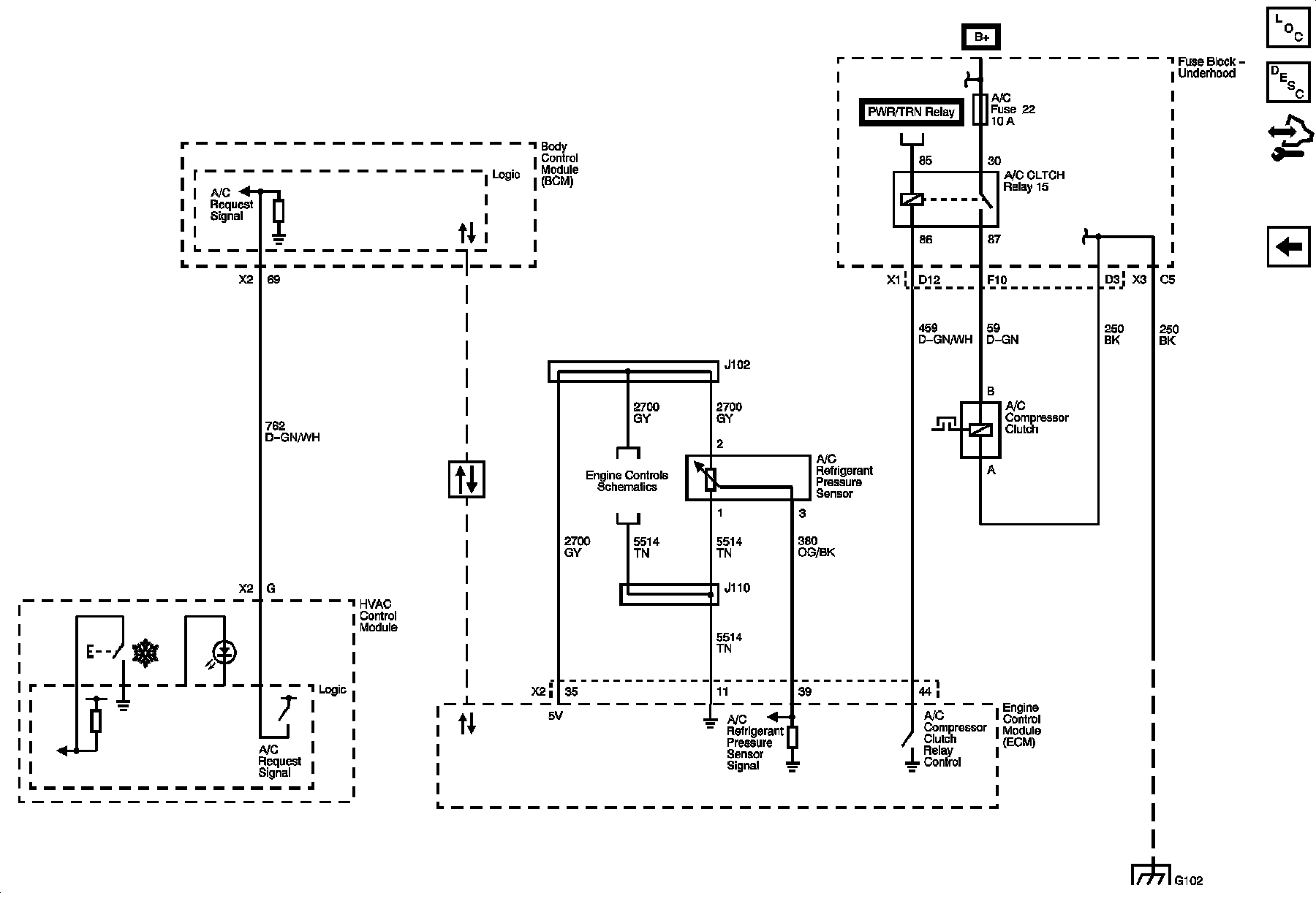

Compressor Controls
