Home
>>
Pontiac
>>
2008
>>
Solstice L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
Cooling System

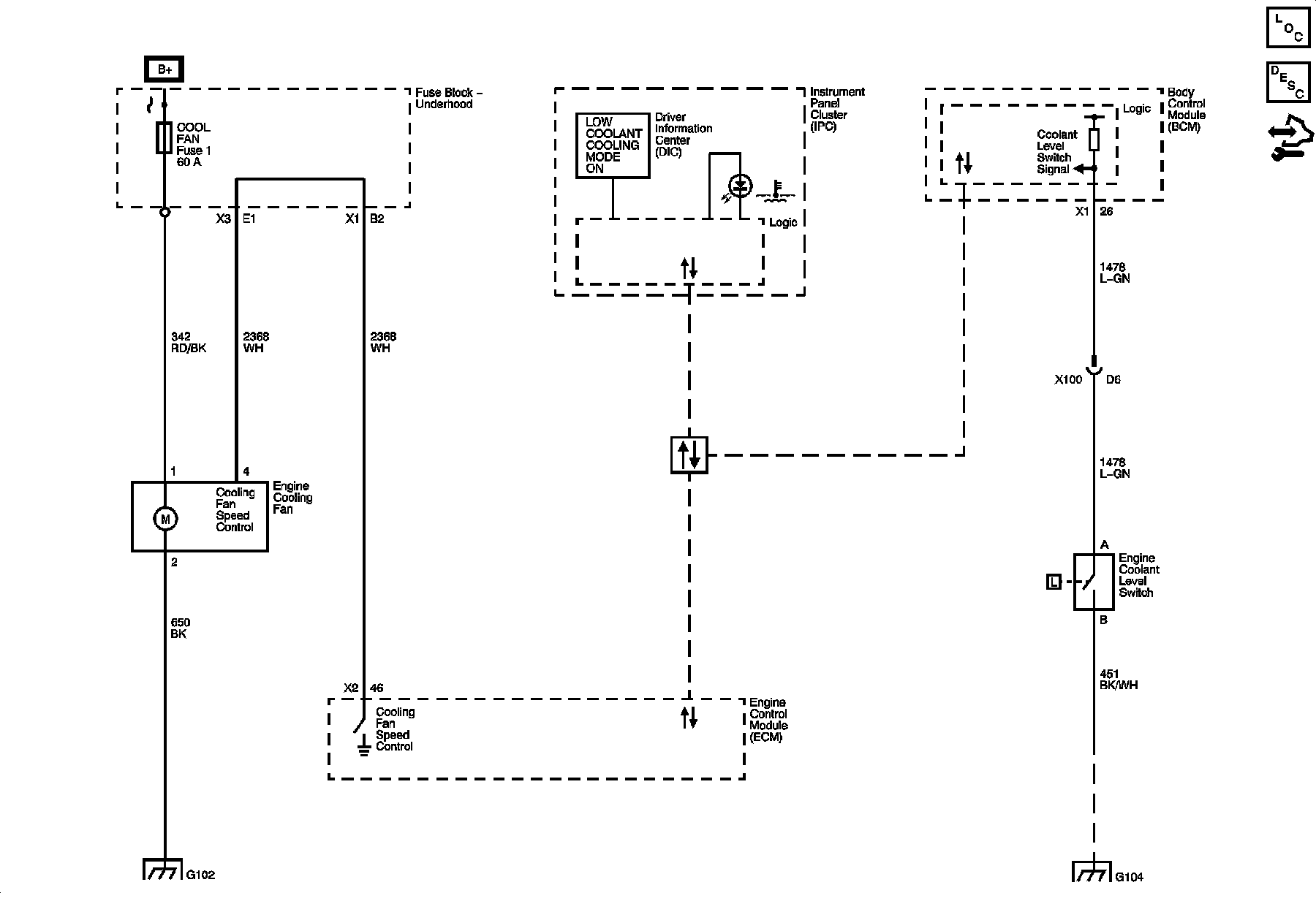

Engine Cooling Schematics (LNF)
