X316

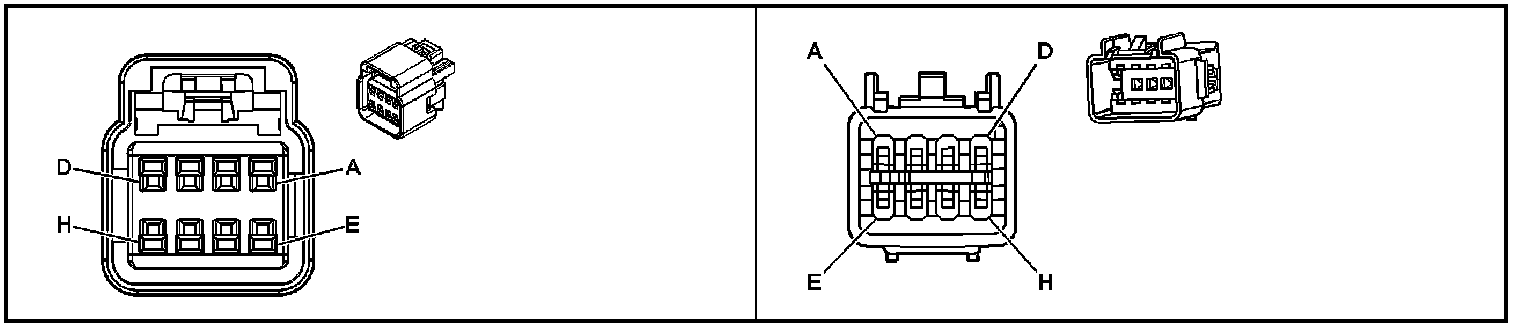

Inline Harness Connector End Views

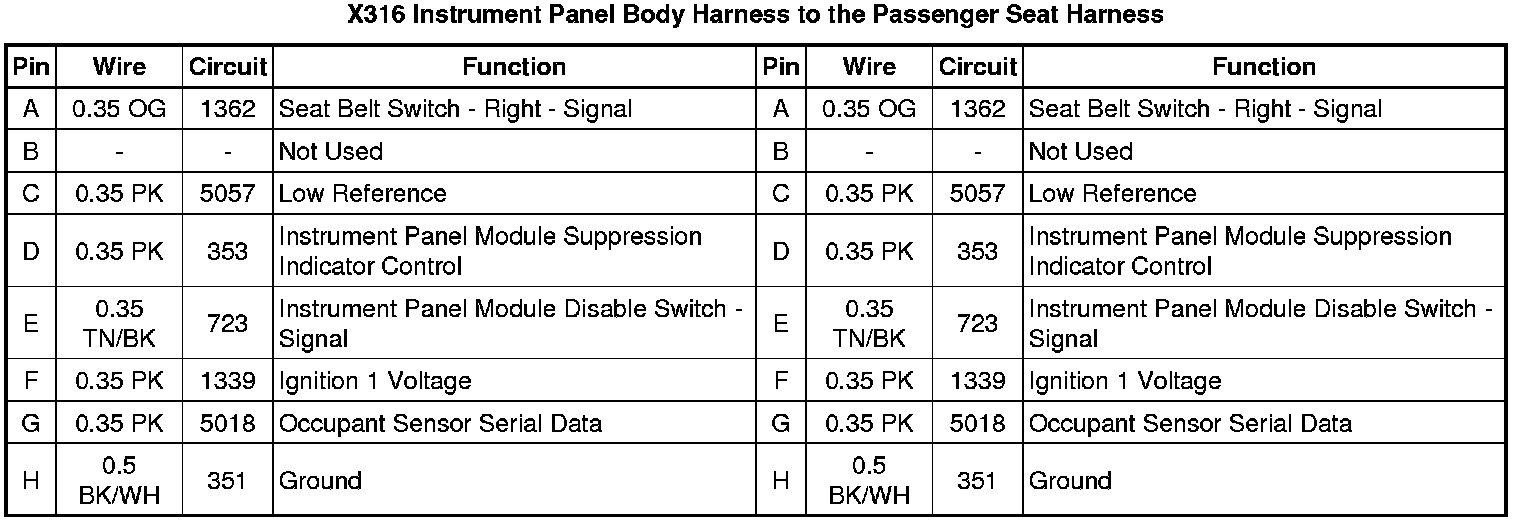

X316 Instrument Panel Body Harness to the Passenger Seat Harness
