X208

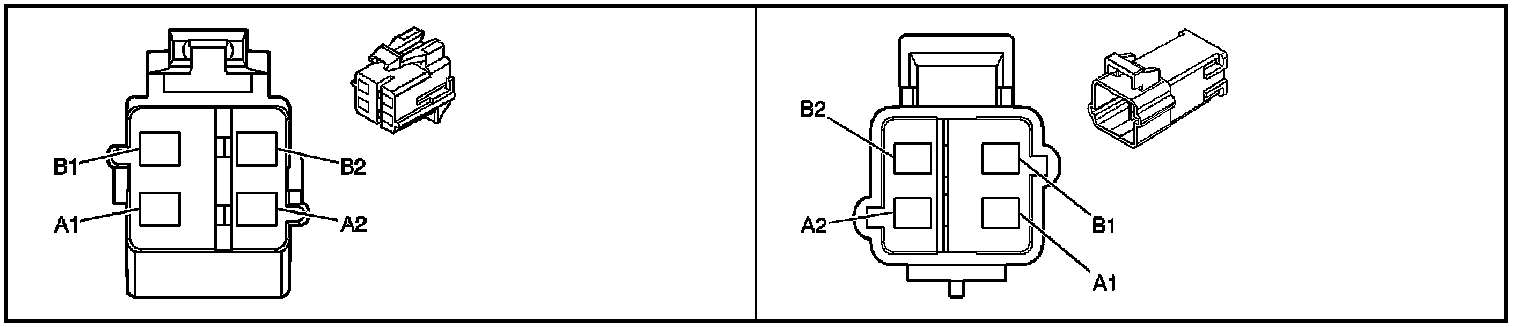

Inline Harness Connector End Views

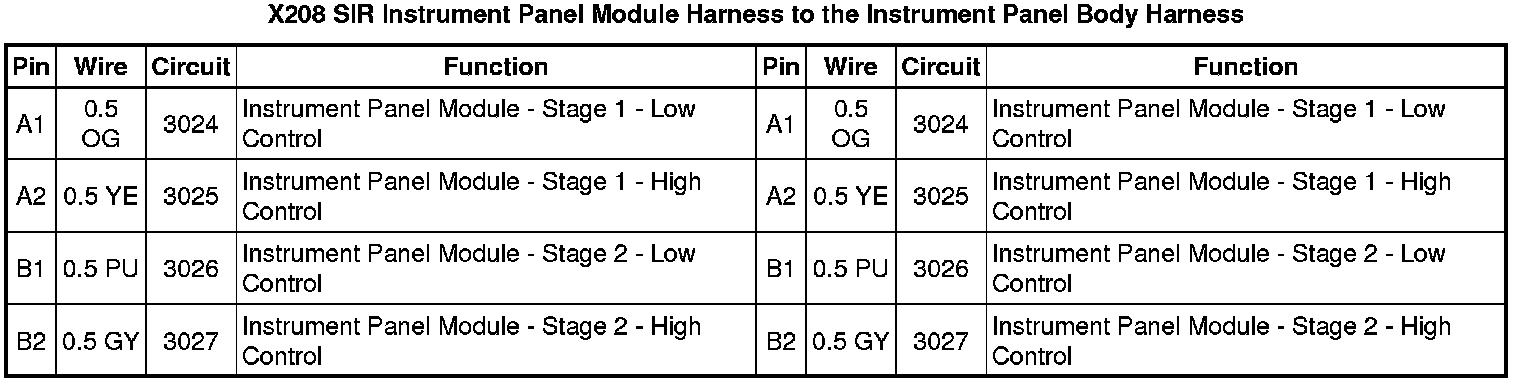

X208 SIR Instrument Panel Module Harness to the Instrument Panel Body Harness
