X500
X500

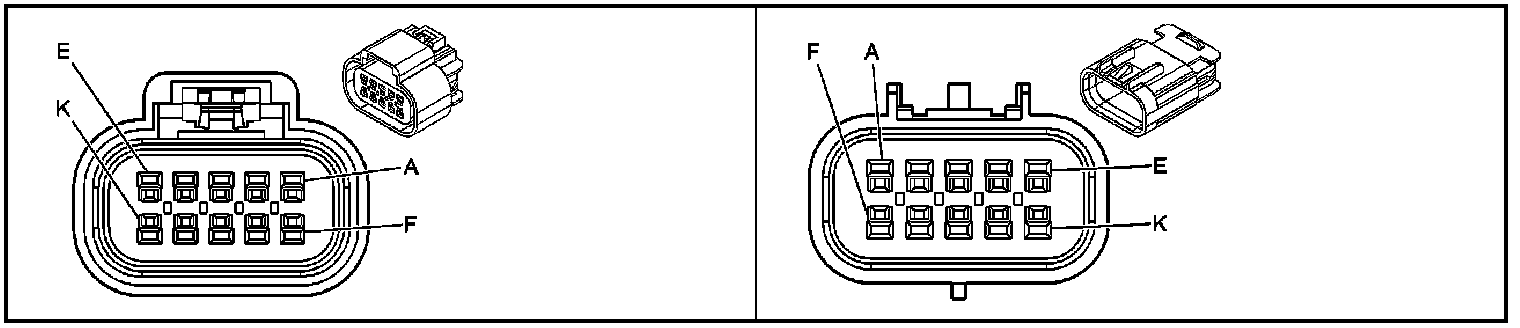

Inline Harness Connector End Views

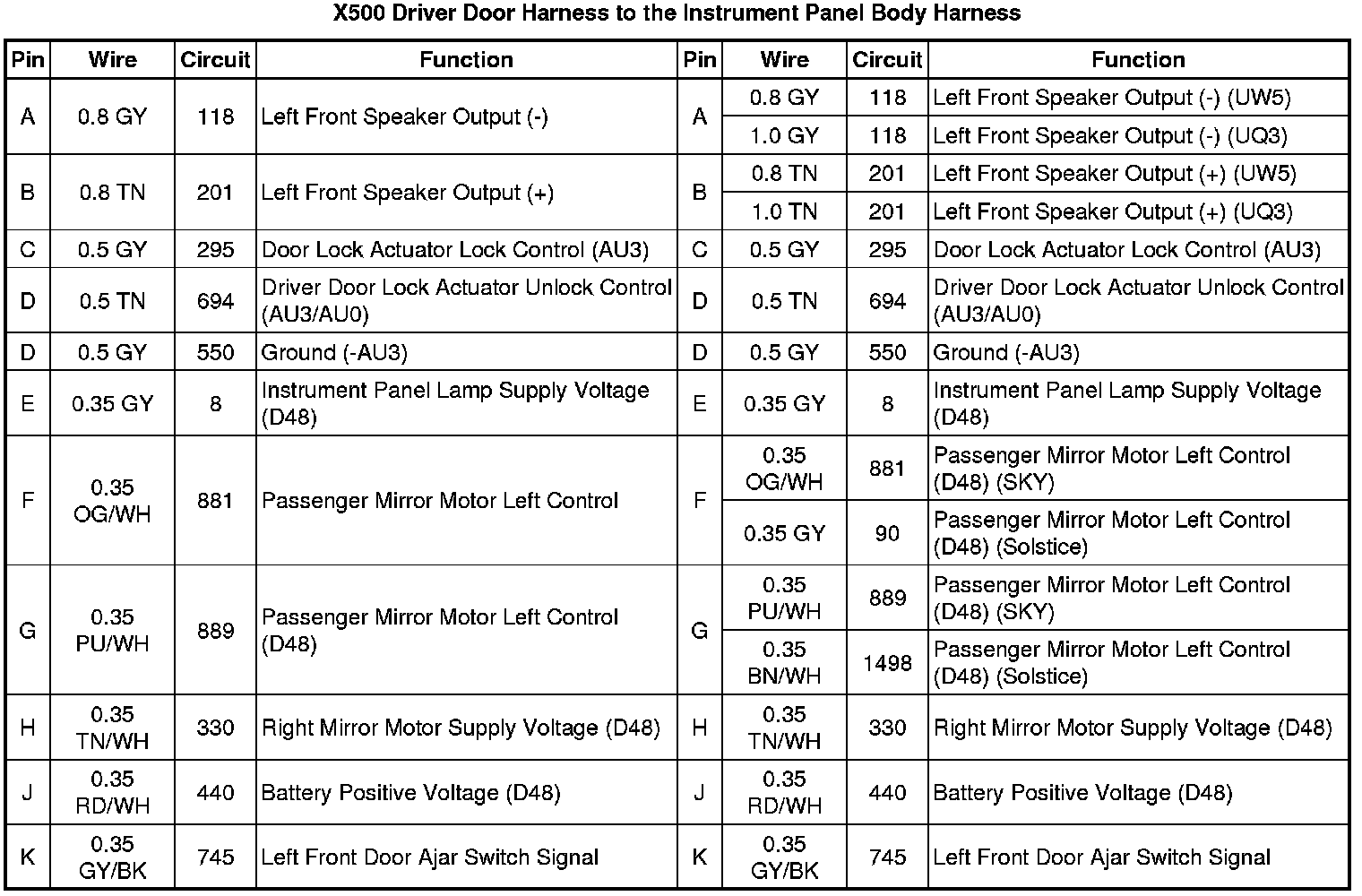

X500 Driver Door Harness to the Instrument Panel Body Harness
