X400
X400

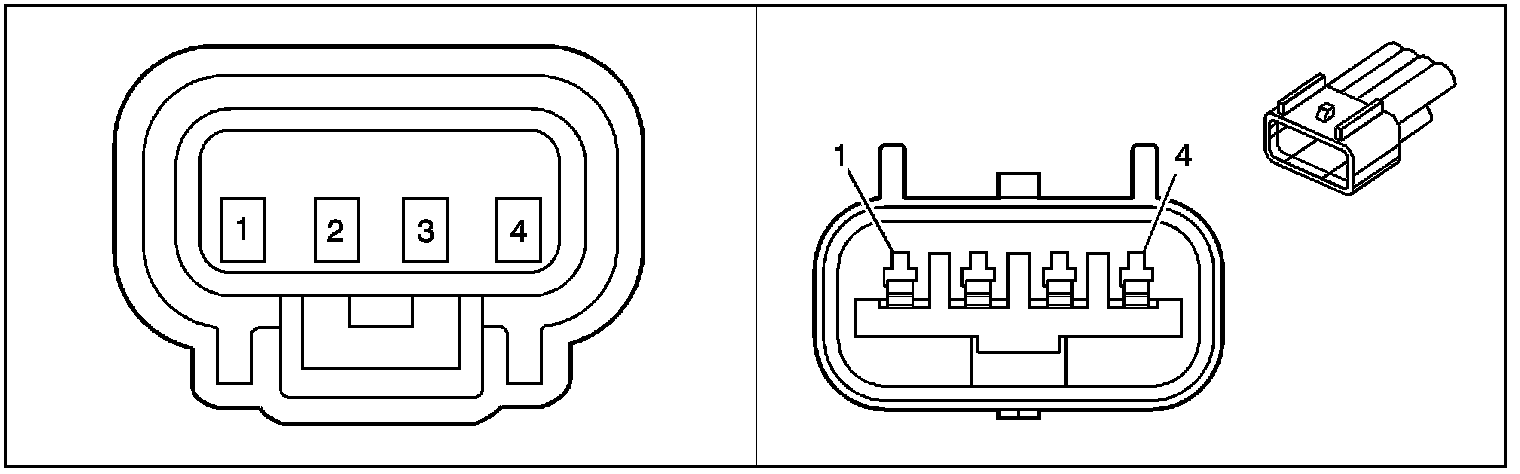

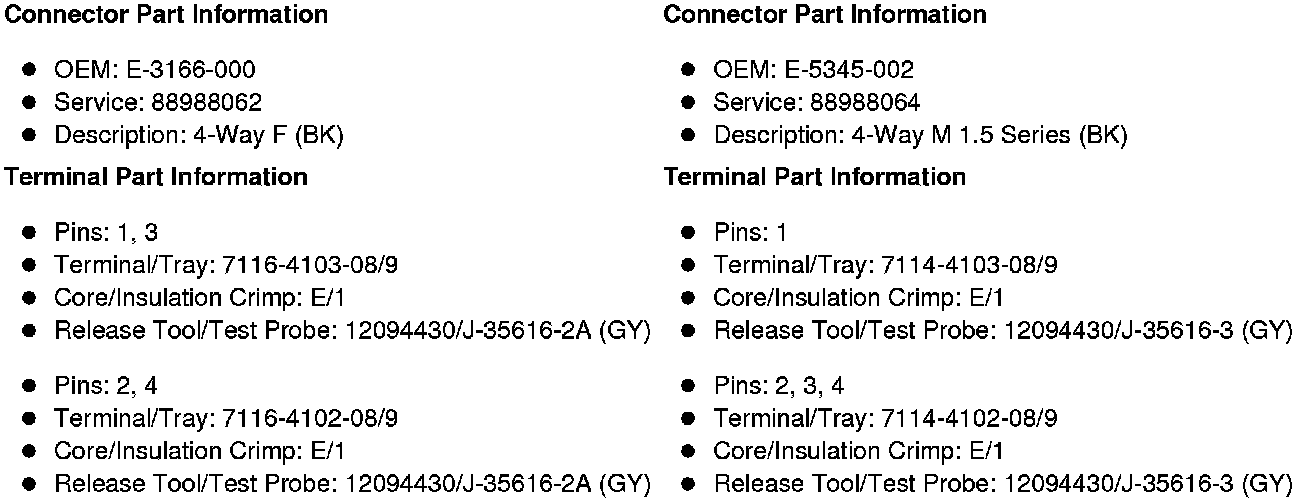

Inline Harness Connector End Views

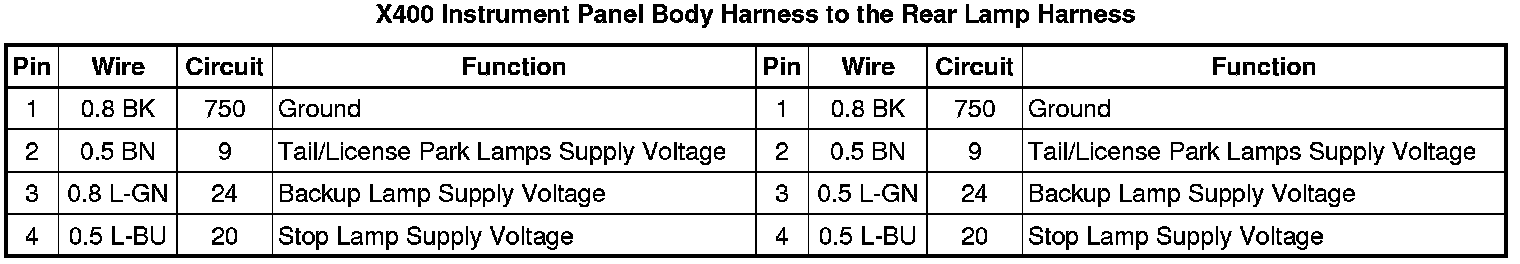

X400 Instrument Panel Body Harness to the Rear Lamp Harness
