X317
X317

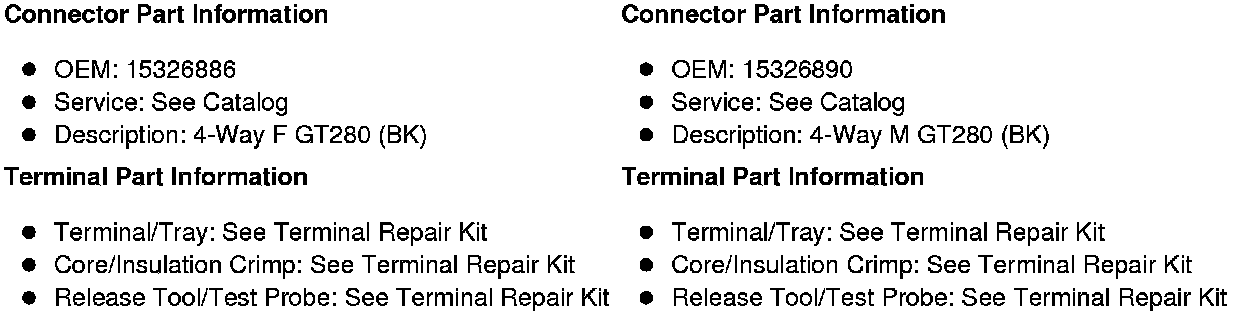

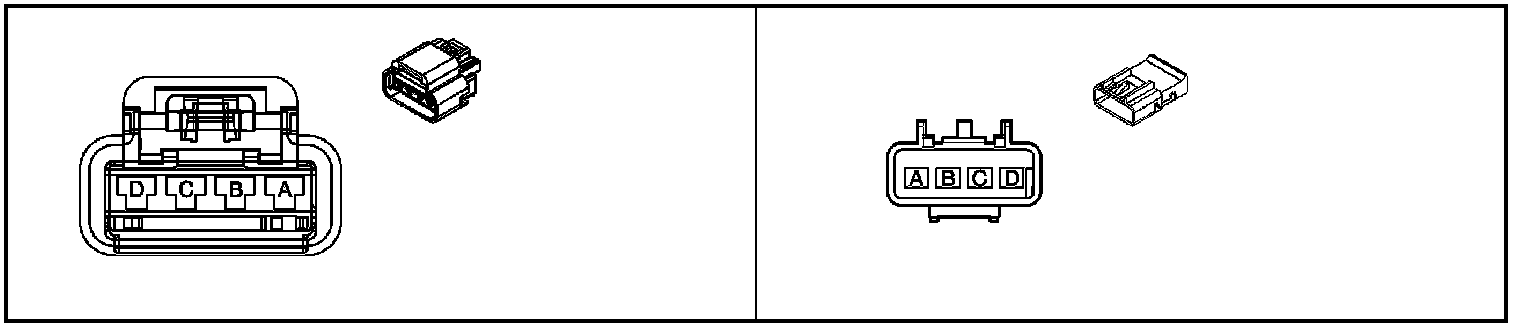

Inline Harness Connector End Views

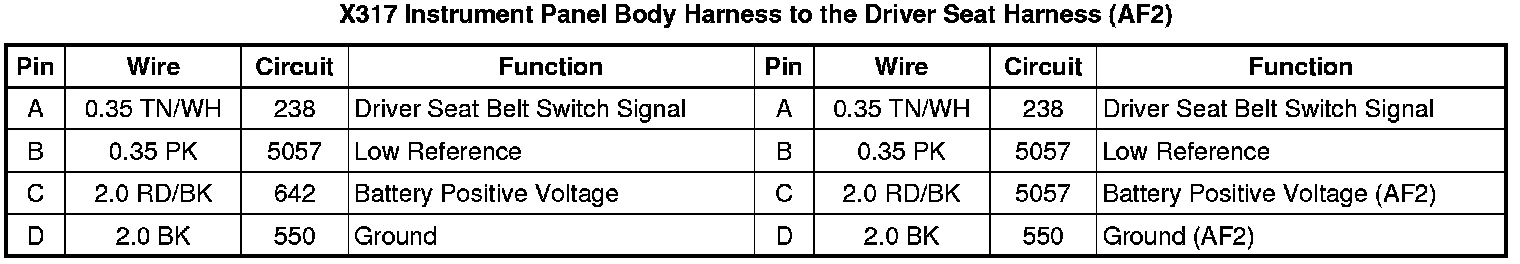

X317 Instrument Panel Body Harness to the Driver Seat Harness (AF2)
