X160

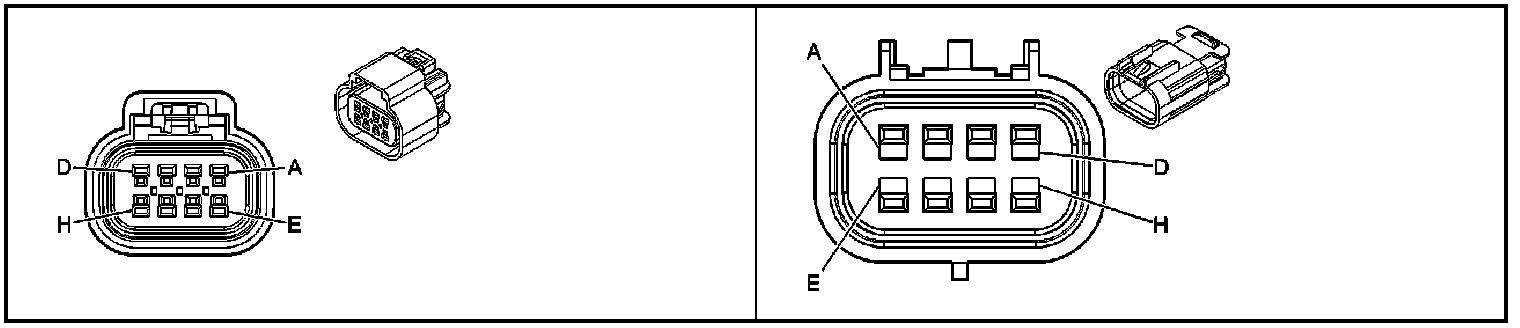

Inline Harness Connector End Views

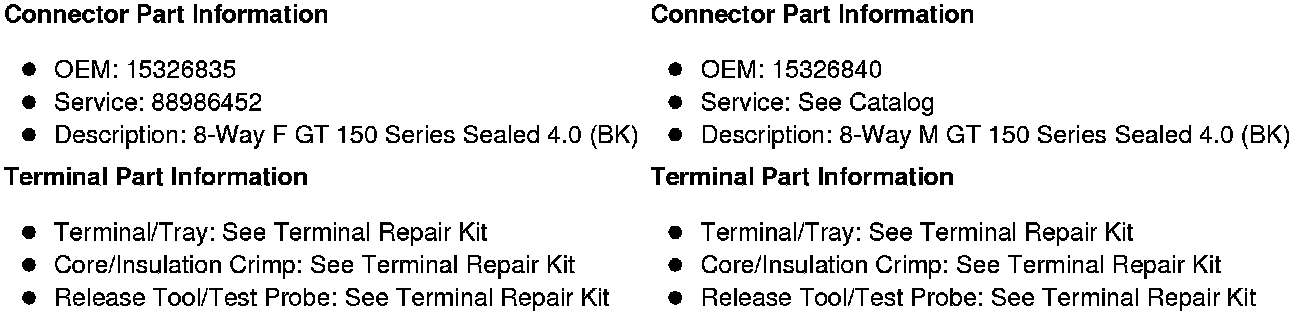

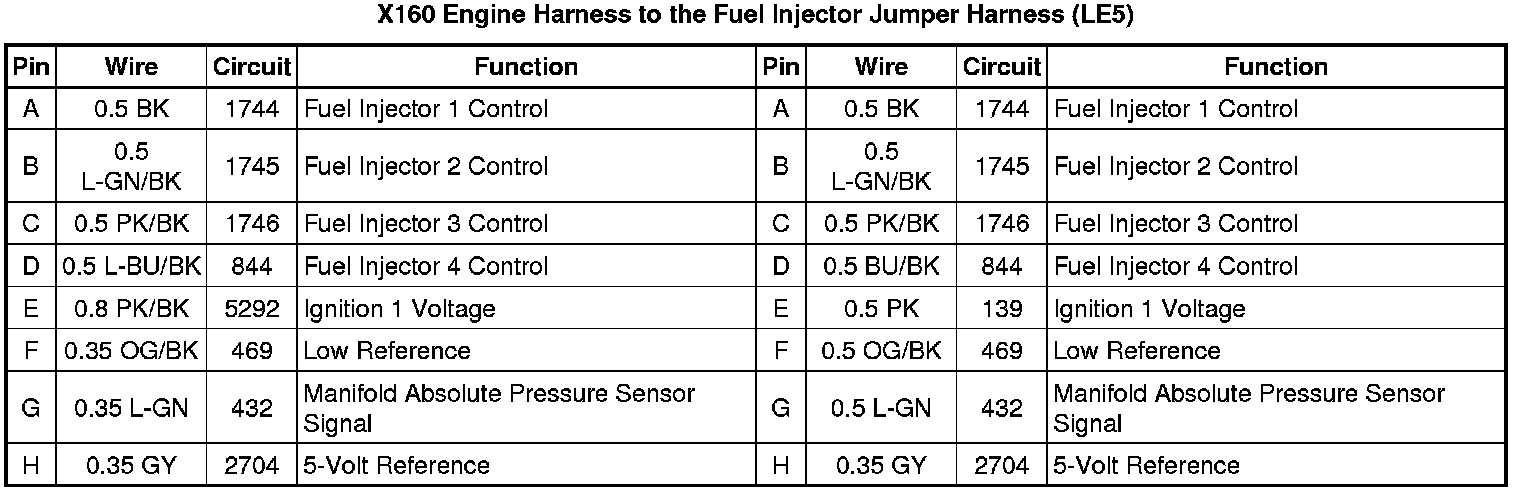

X160 Engine Harness to the Fuel Injector Jumper Harness (LE5)
