X111

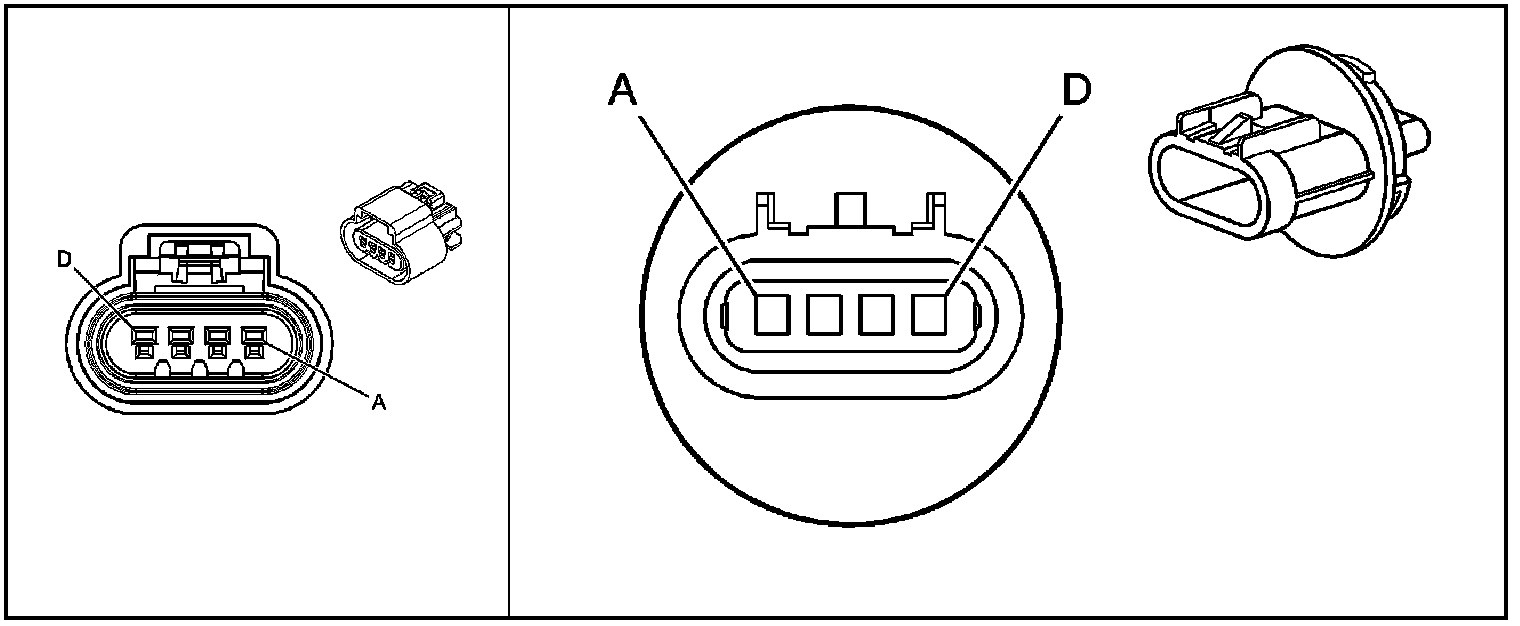

Inline Harness Connector End Views

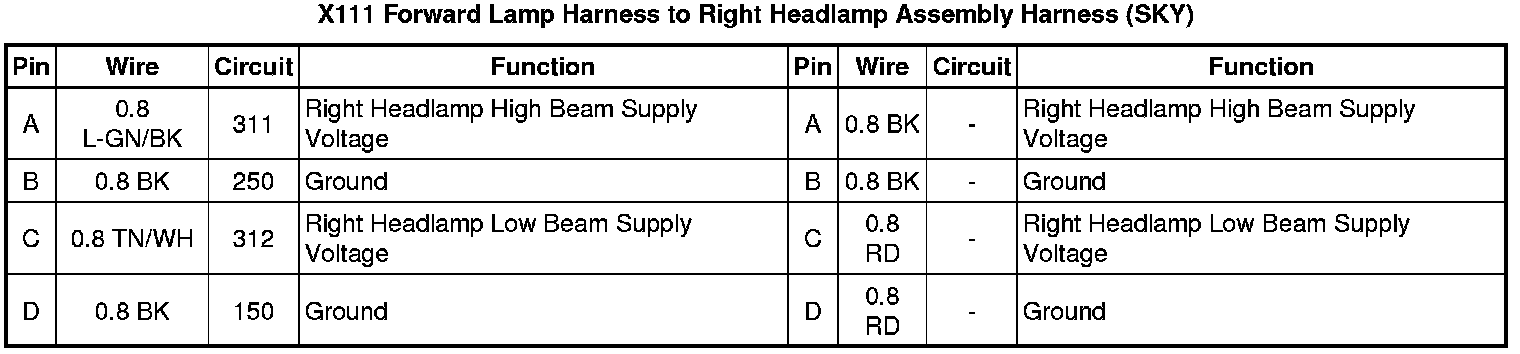

X111 Forward Lamp Harness to Right Headlamp Assembly Harness (SKY)
