X110

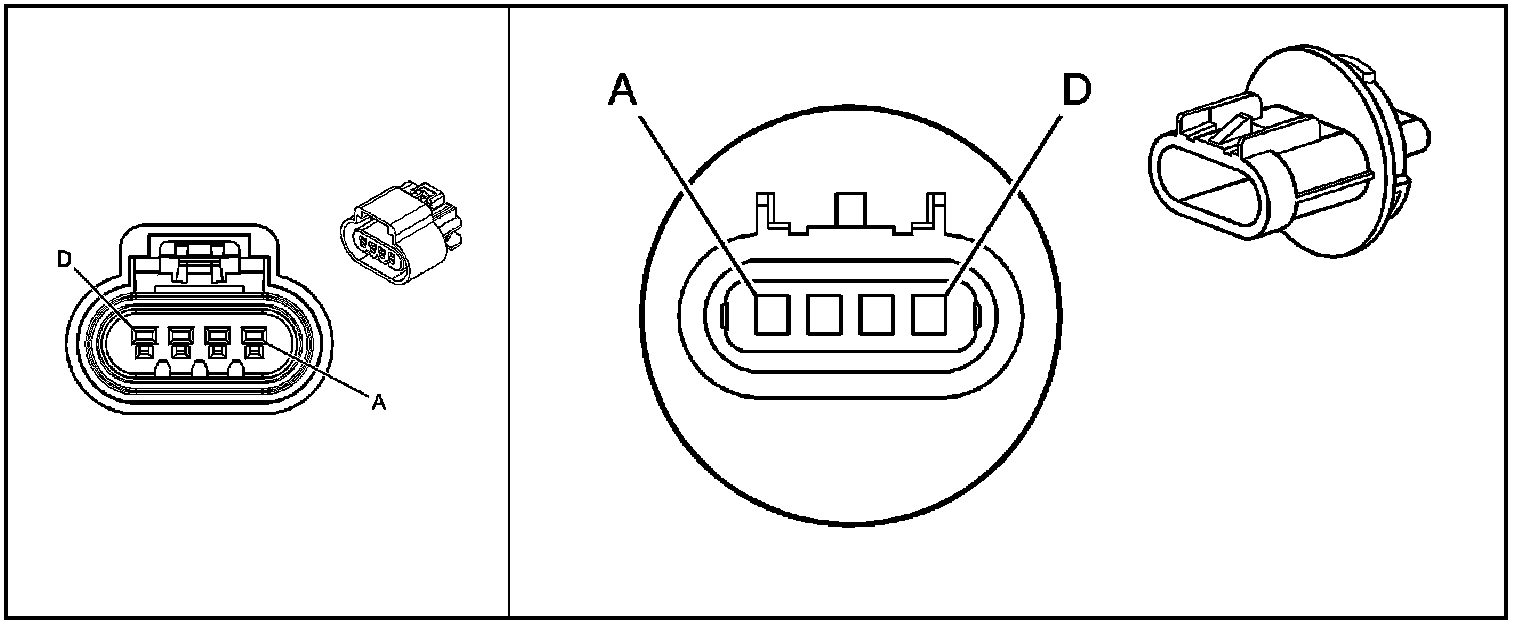

Inline Harness Connector End Views

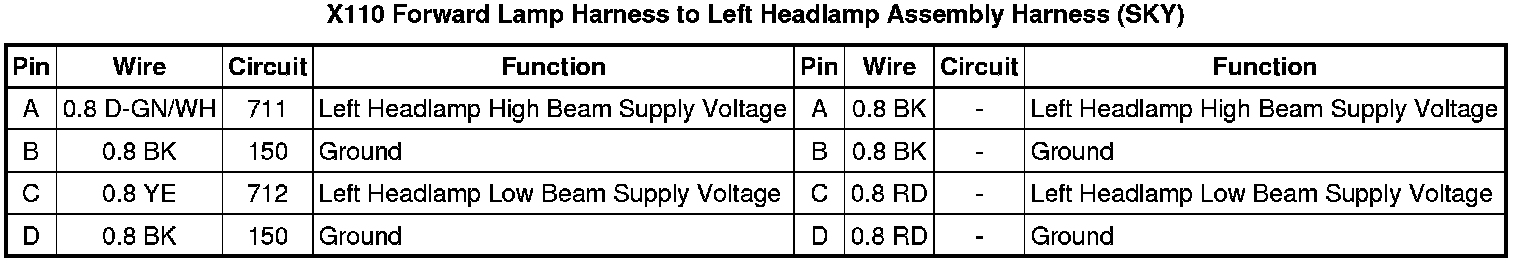

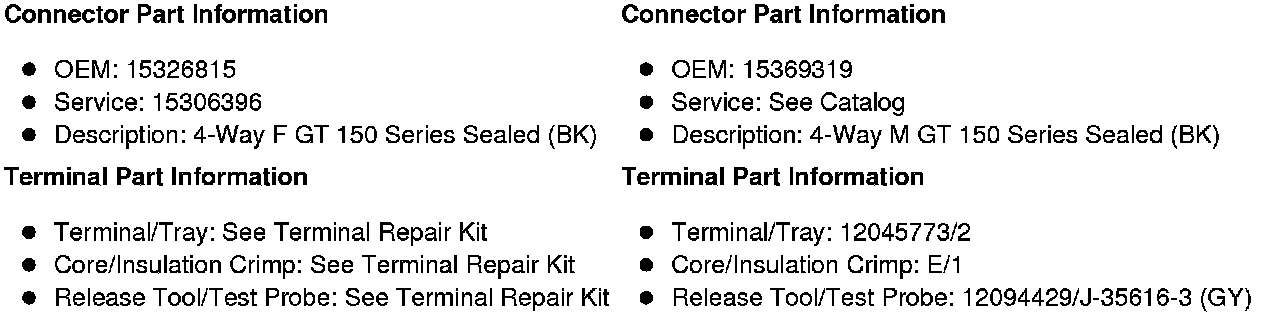

X110 Forward Lamp Harness to Left Headlamp Assembly Harness (SKY)
