X102

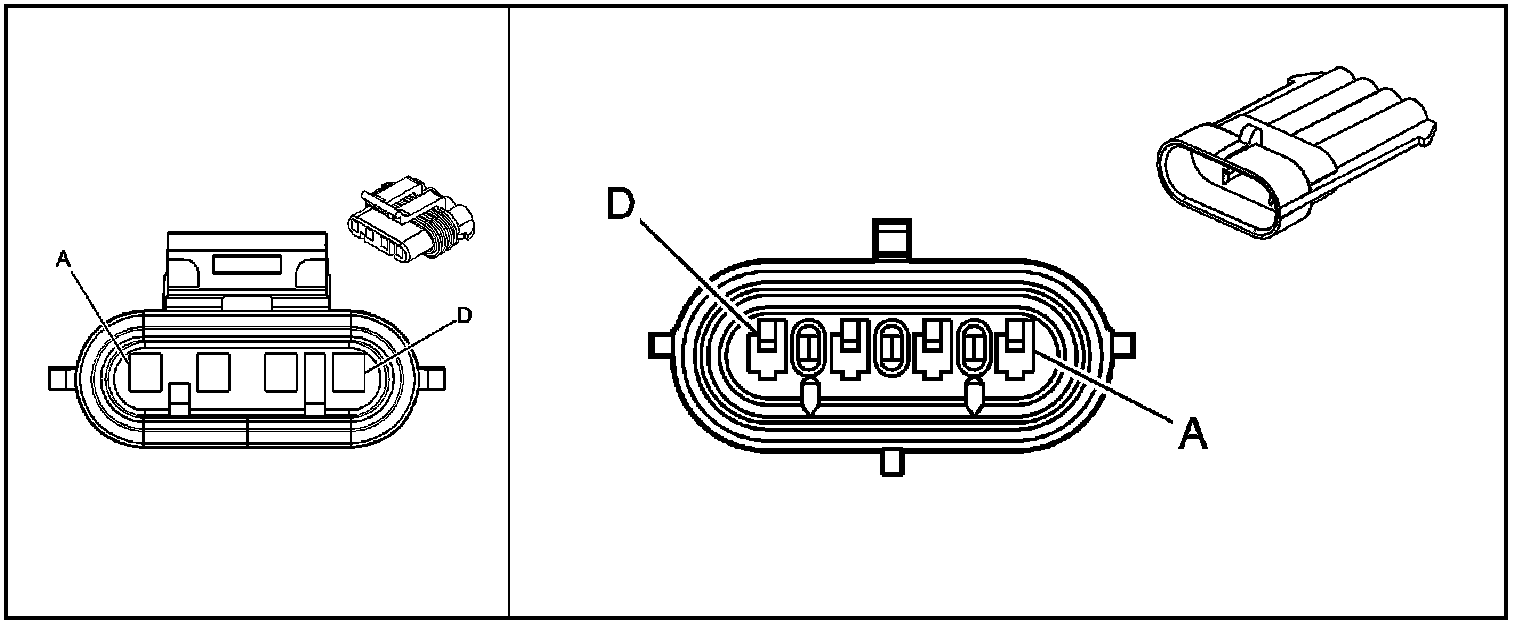

Inline Harness Connector End Views

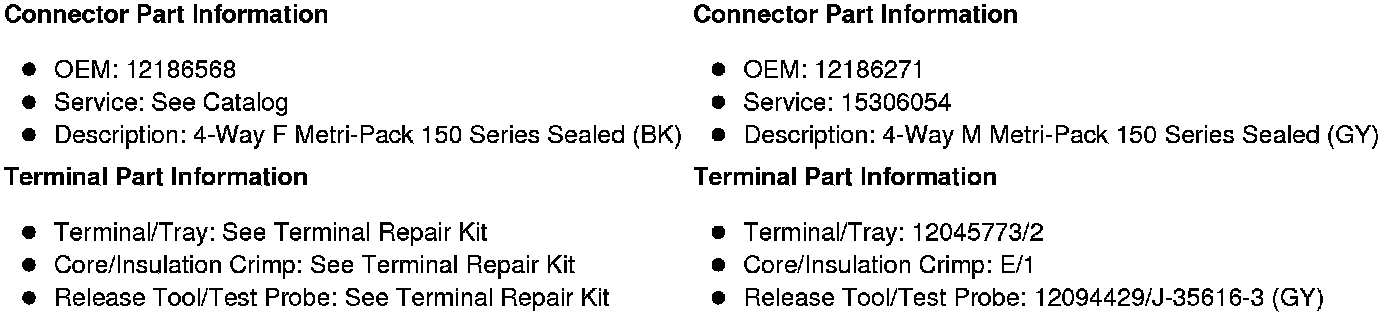

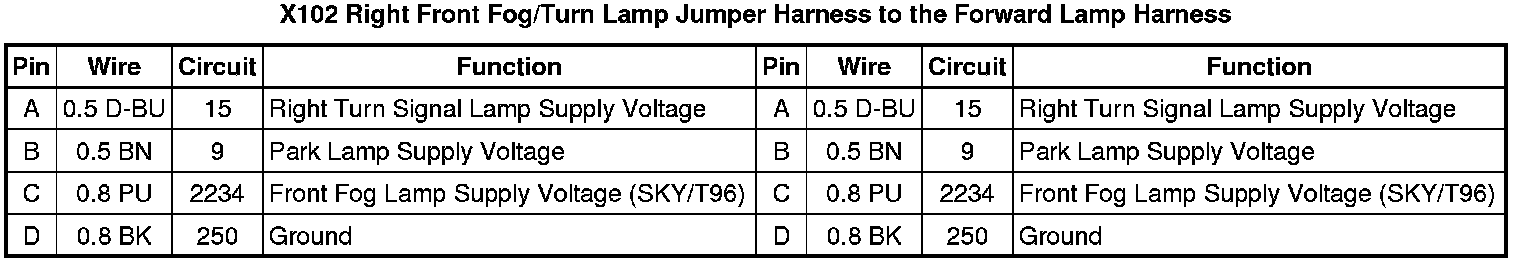

X102 Right Front Fog/Turn Lamp Jumper Harness to the Forward Lamp Harness
