Steering and Suspension



Component Connector End Views

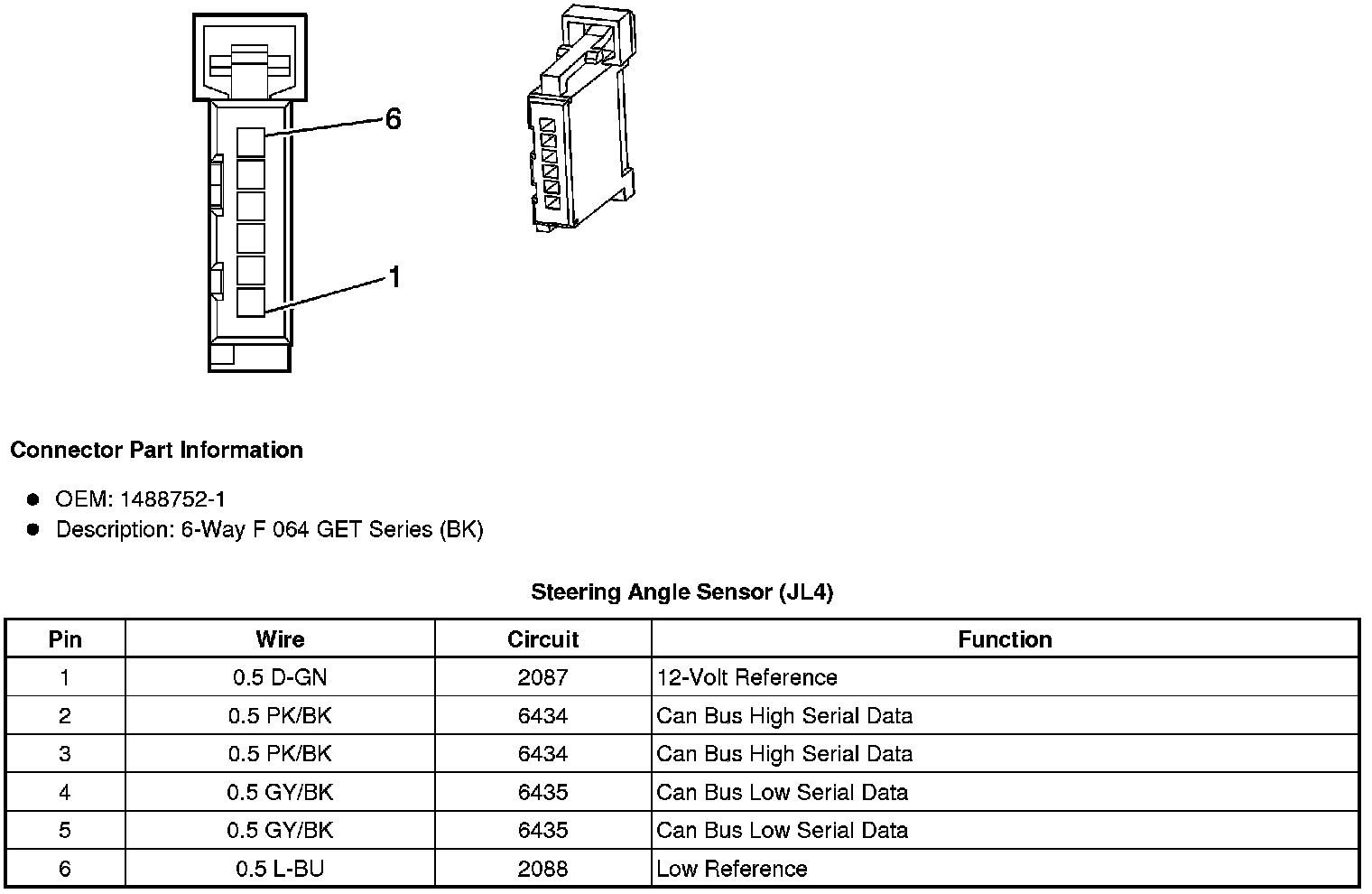

Steering Angle Sensor (JL4)

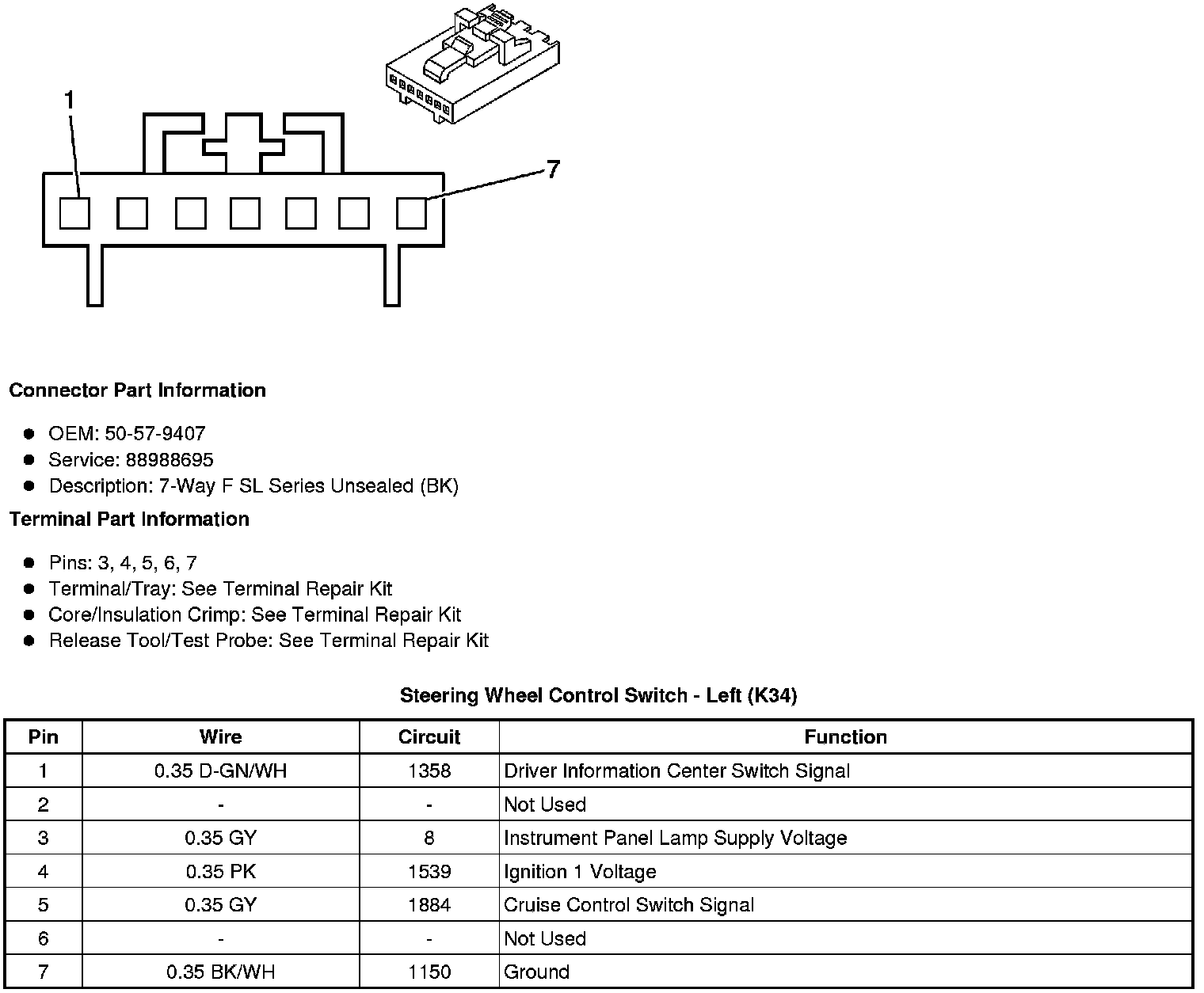

Steering Wheel Control Switch - Left (K34)

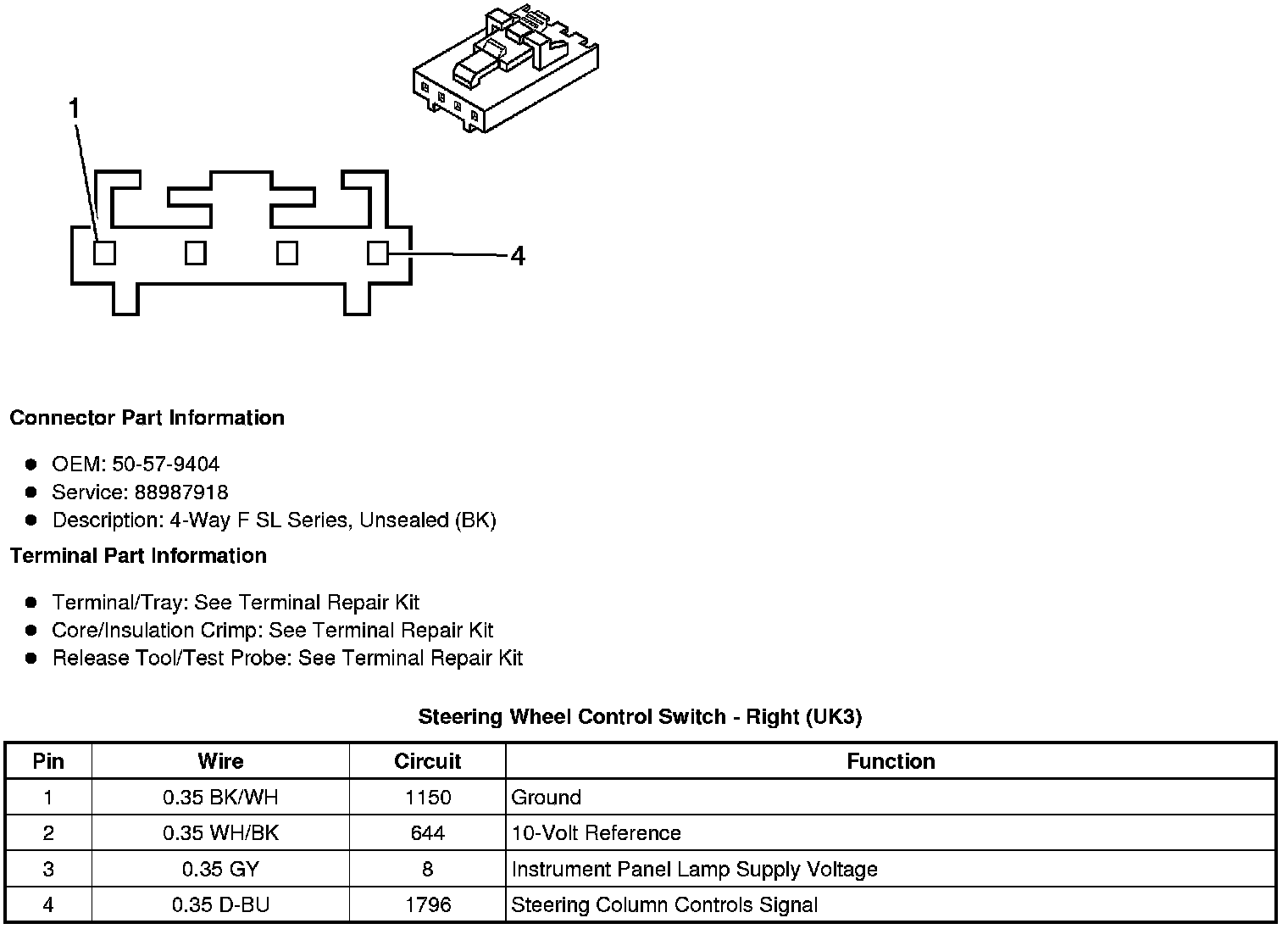

Steering Wheel Control Switch - Right (UK3)
