Engine, Cooling and Exhaust
Component Connector End Views

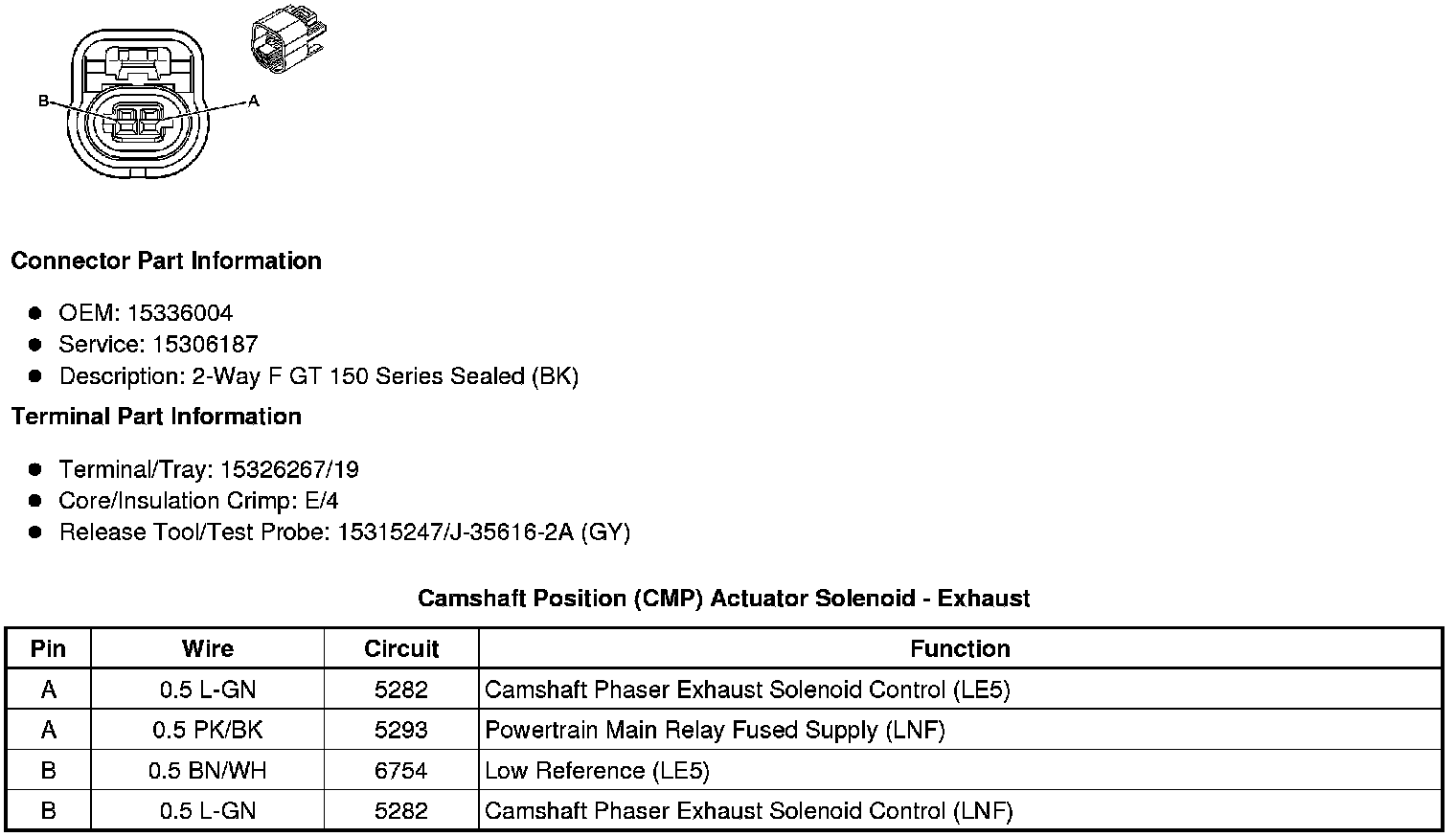

Camshaft Position (CMP) Actuator Solenoid - Exhaust

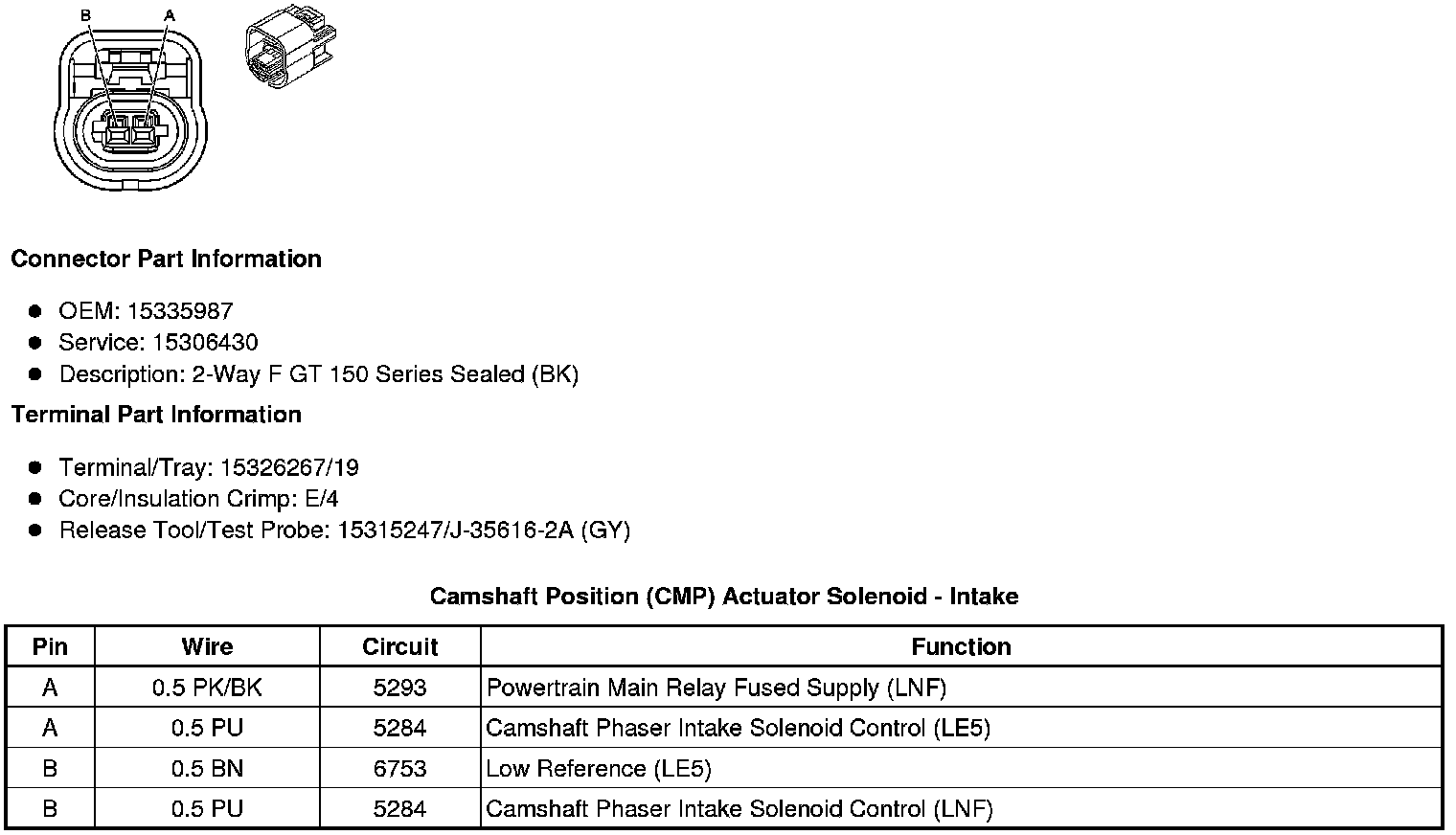

Camshaft Position (CMP) Actuator Solenoid - Intake

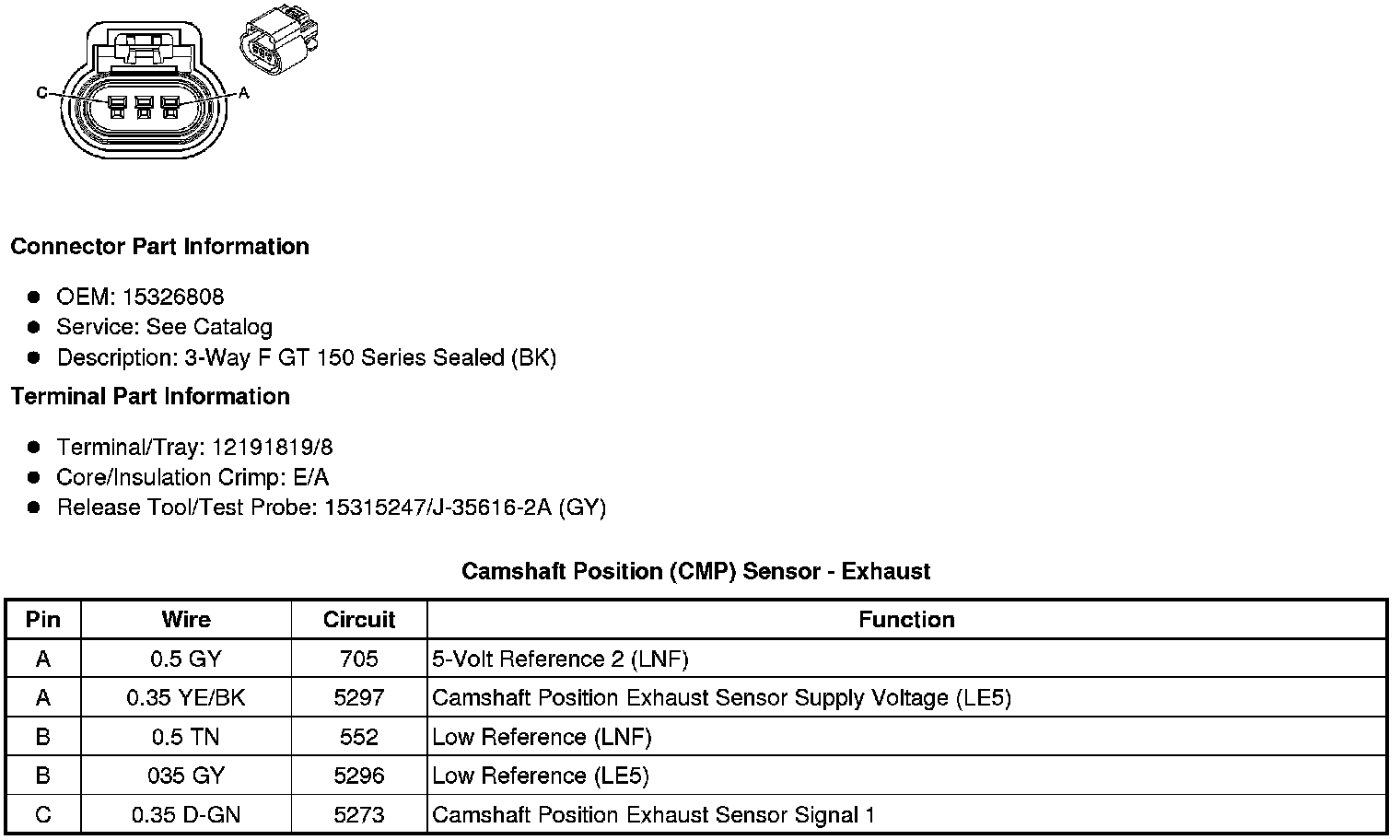

Camshaft Position (CMP) Sensor - Exhaust

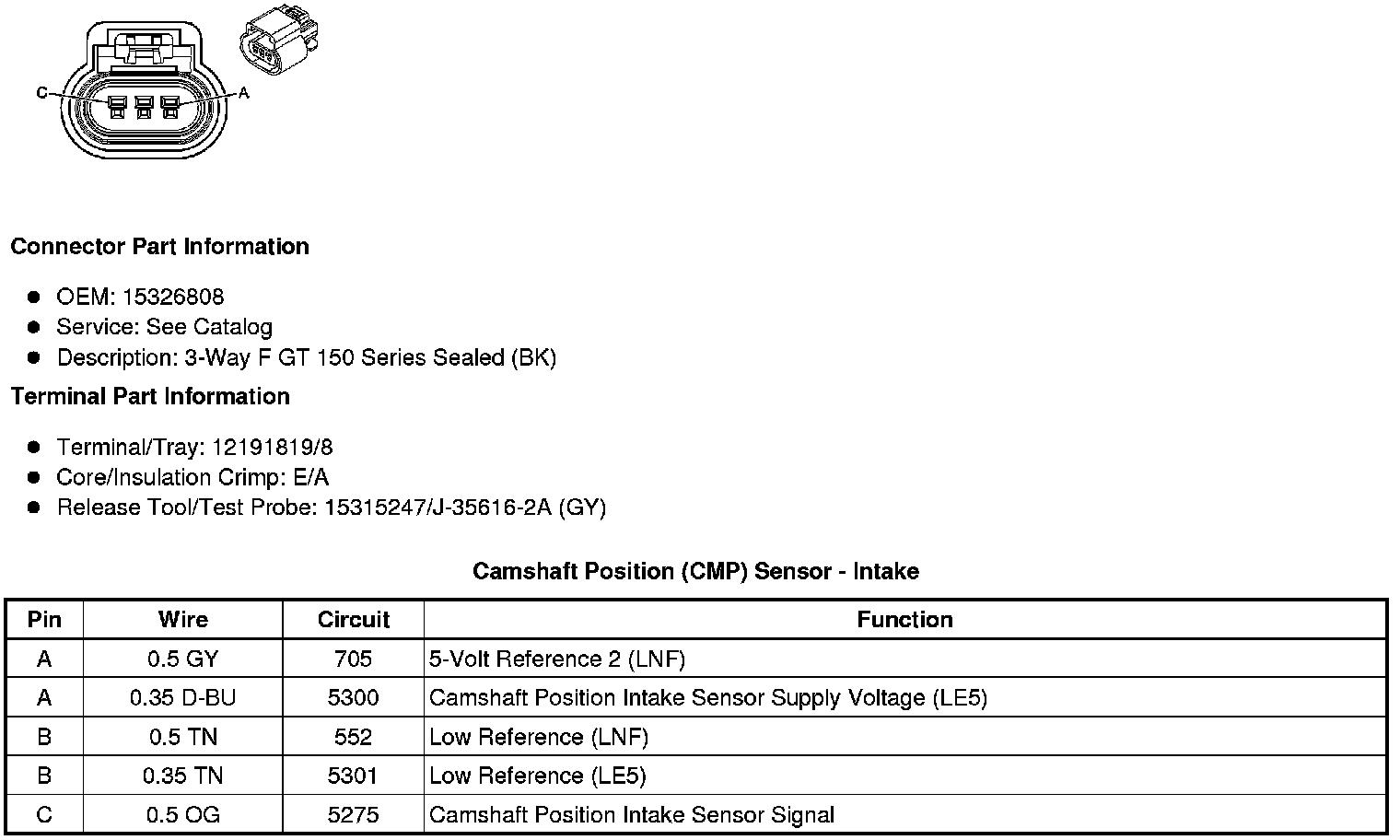

Camshaft Position (CMP) Sensor - Intake

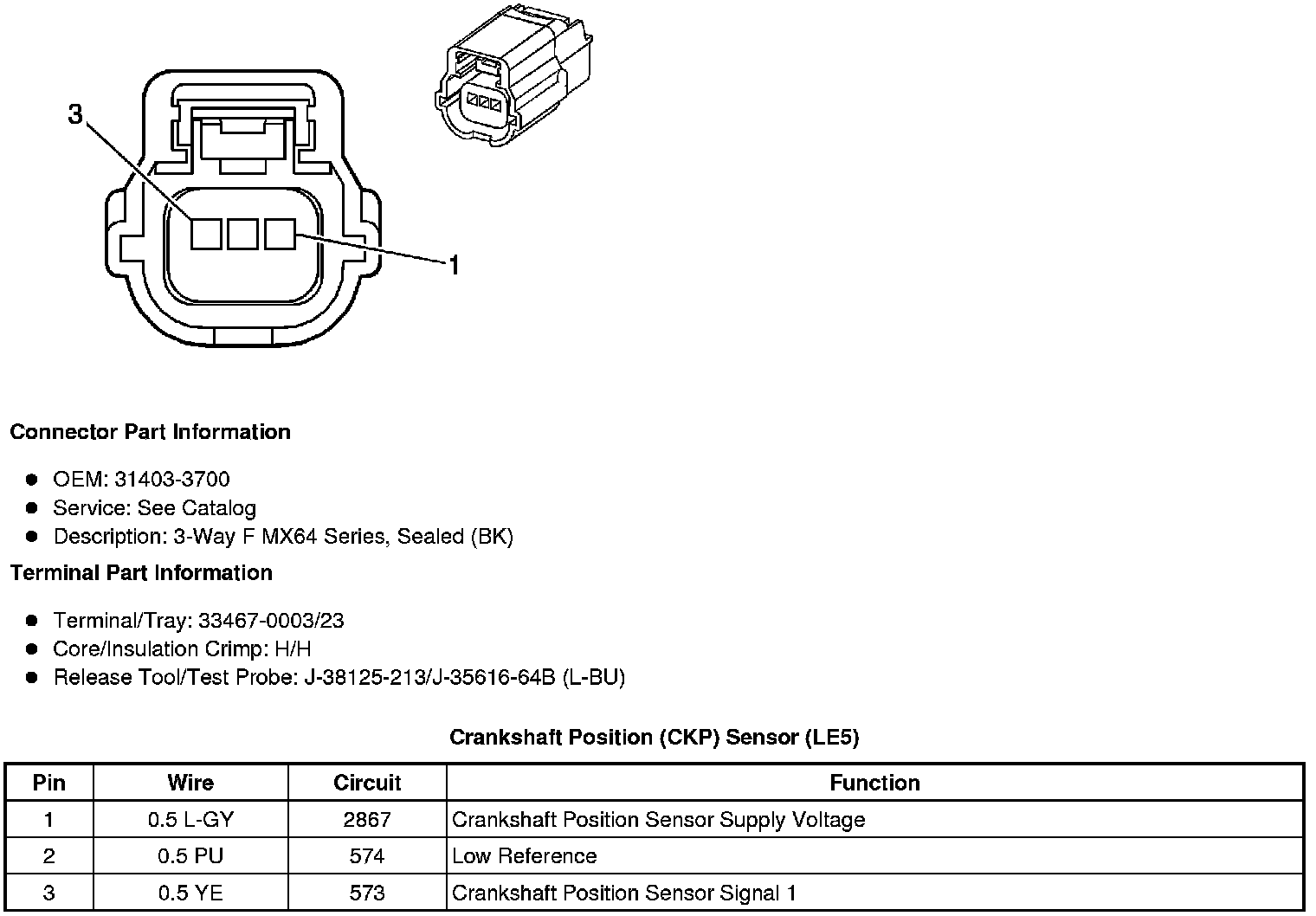

Crankshaft Position (CKP) Sensor (LE5)

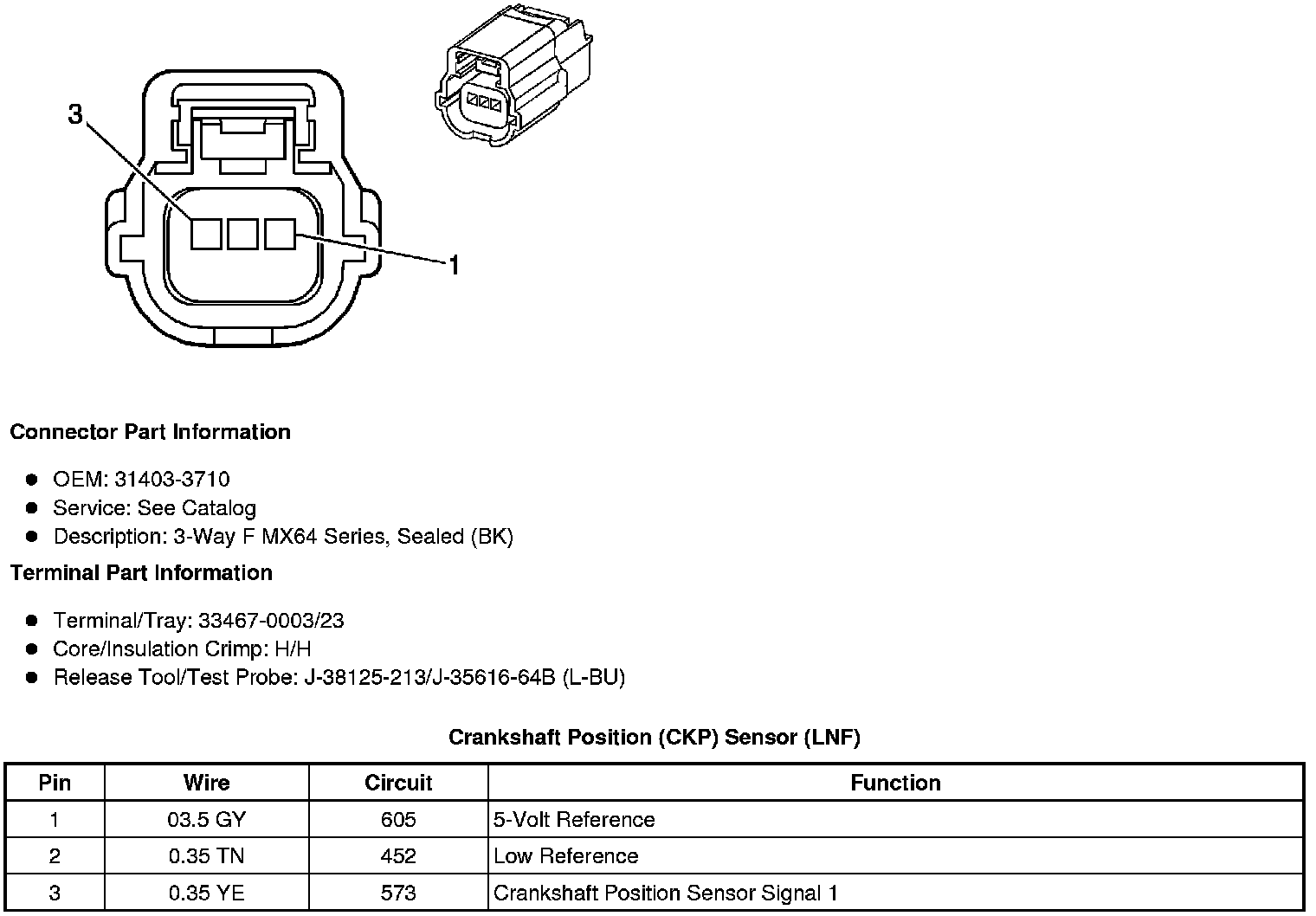

Crankshaft Position (CKP) Sensor (LNF)

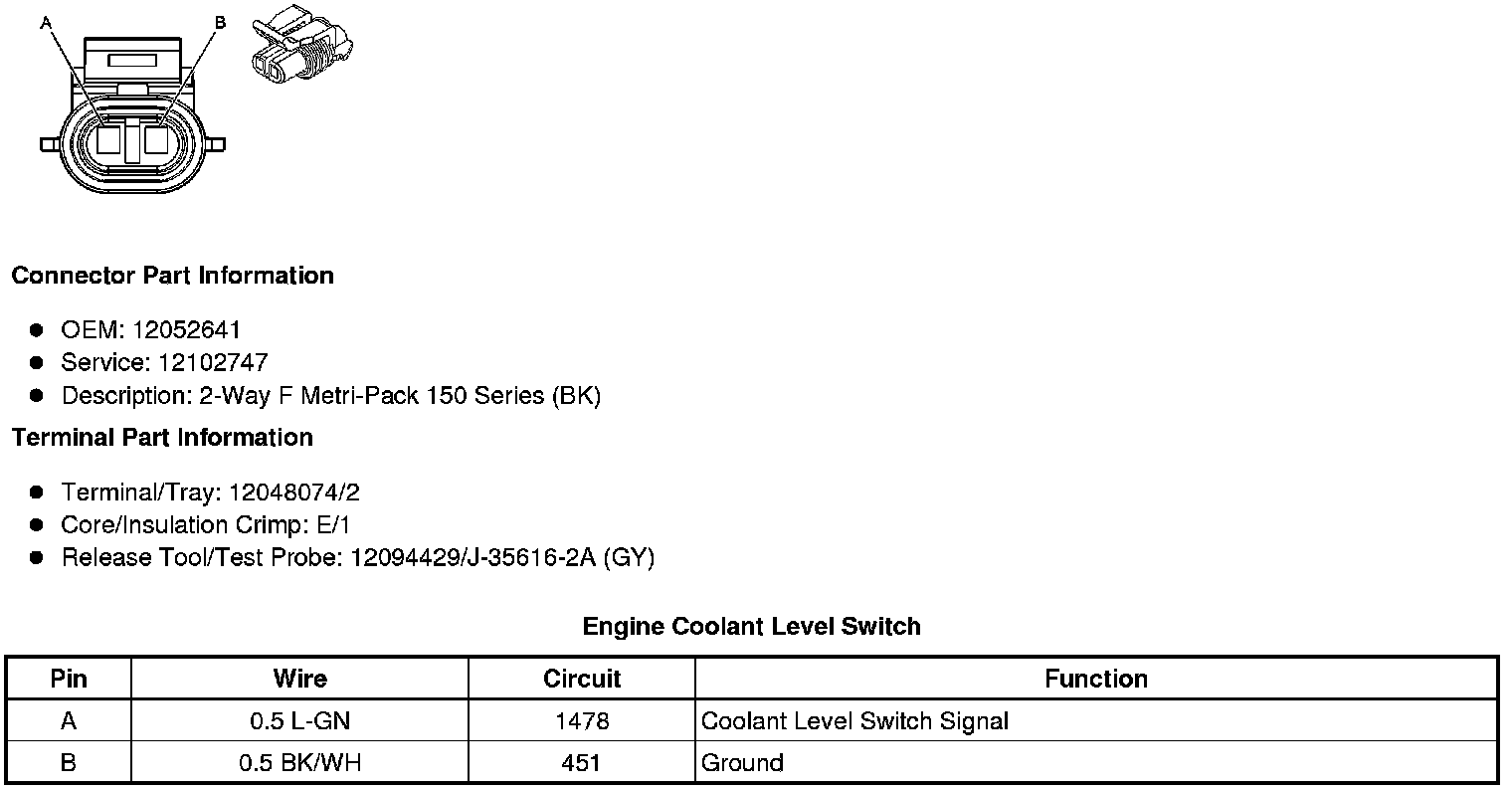

Engine Coolant Level Switch

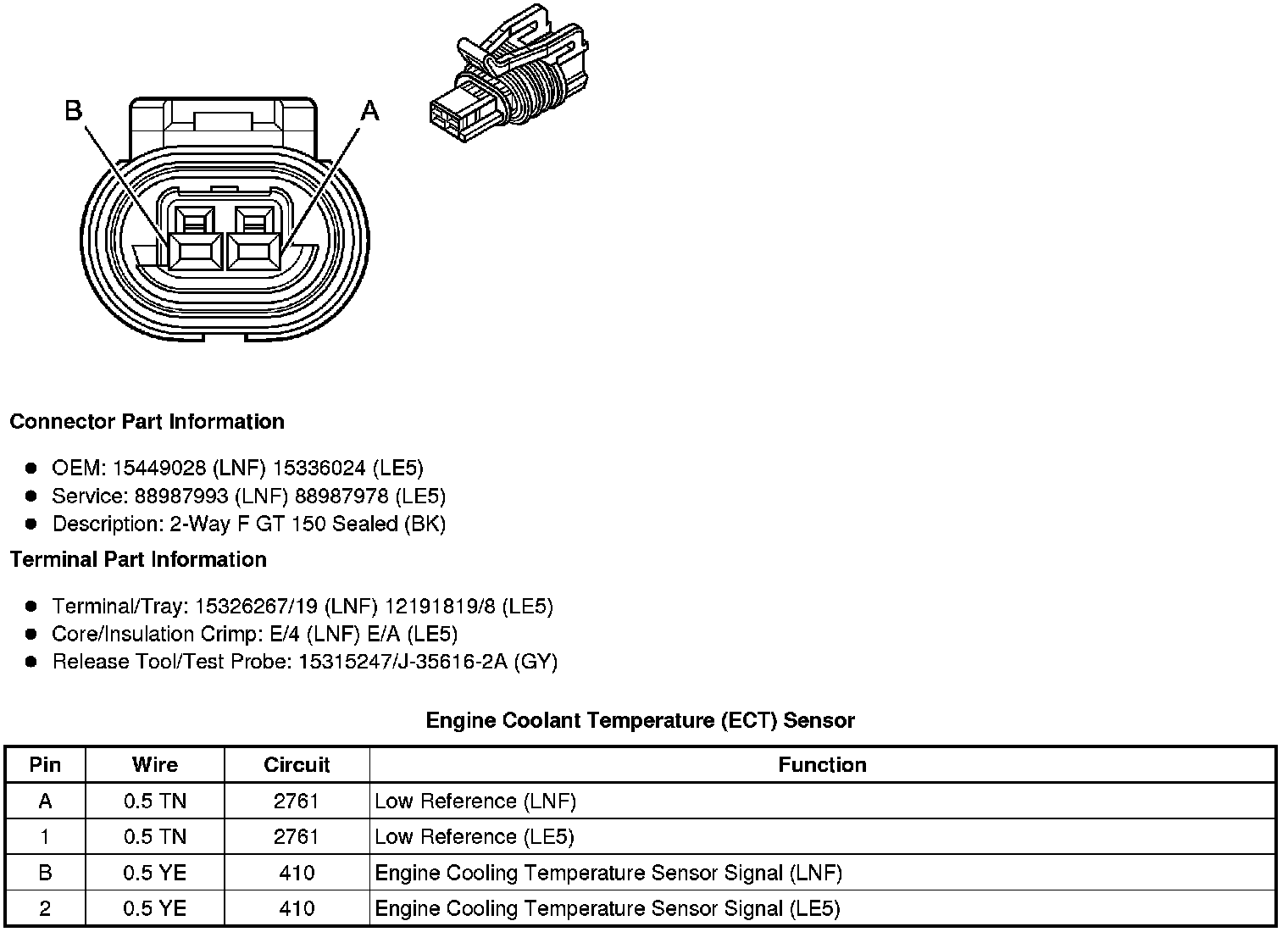

Engine Coolant Temperature (ECT) Sensor

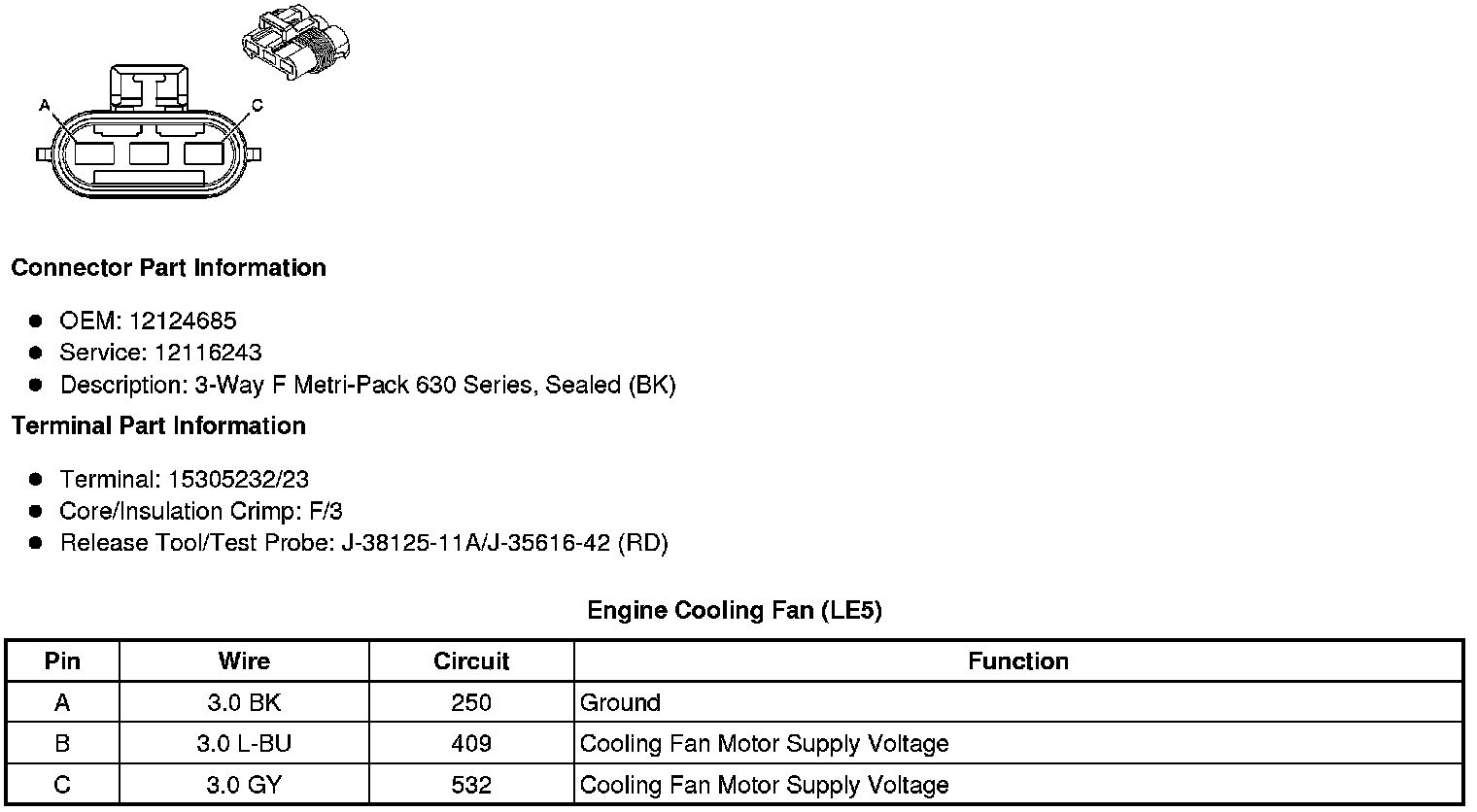

Engine Cooling Fan (LE5)

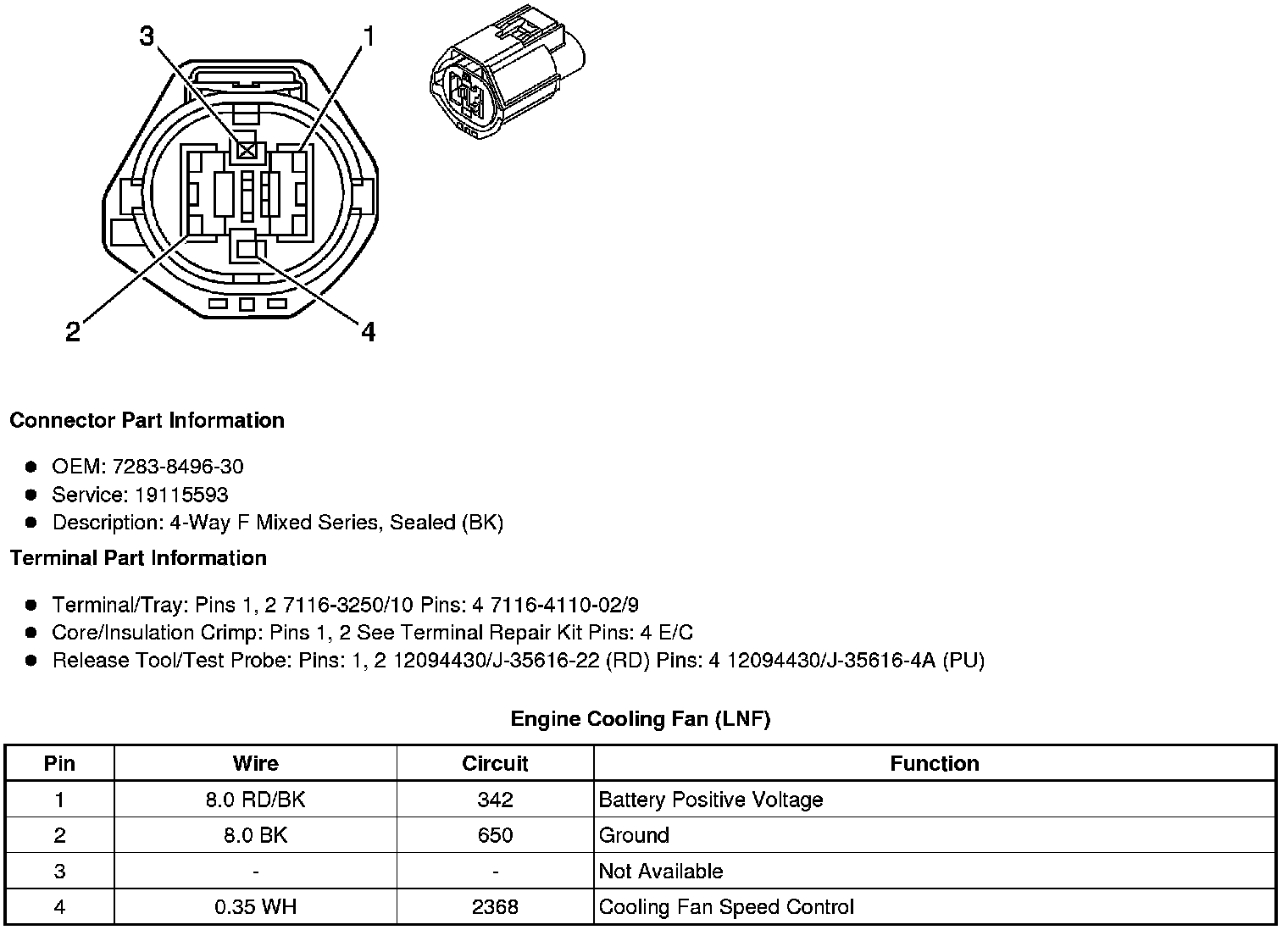

Engine Cooling Fan (LNF)

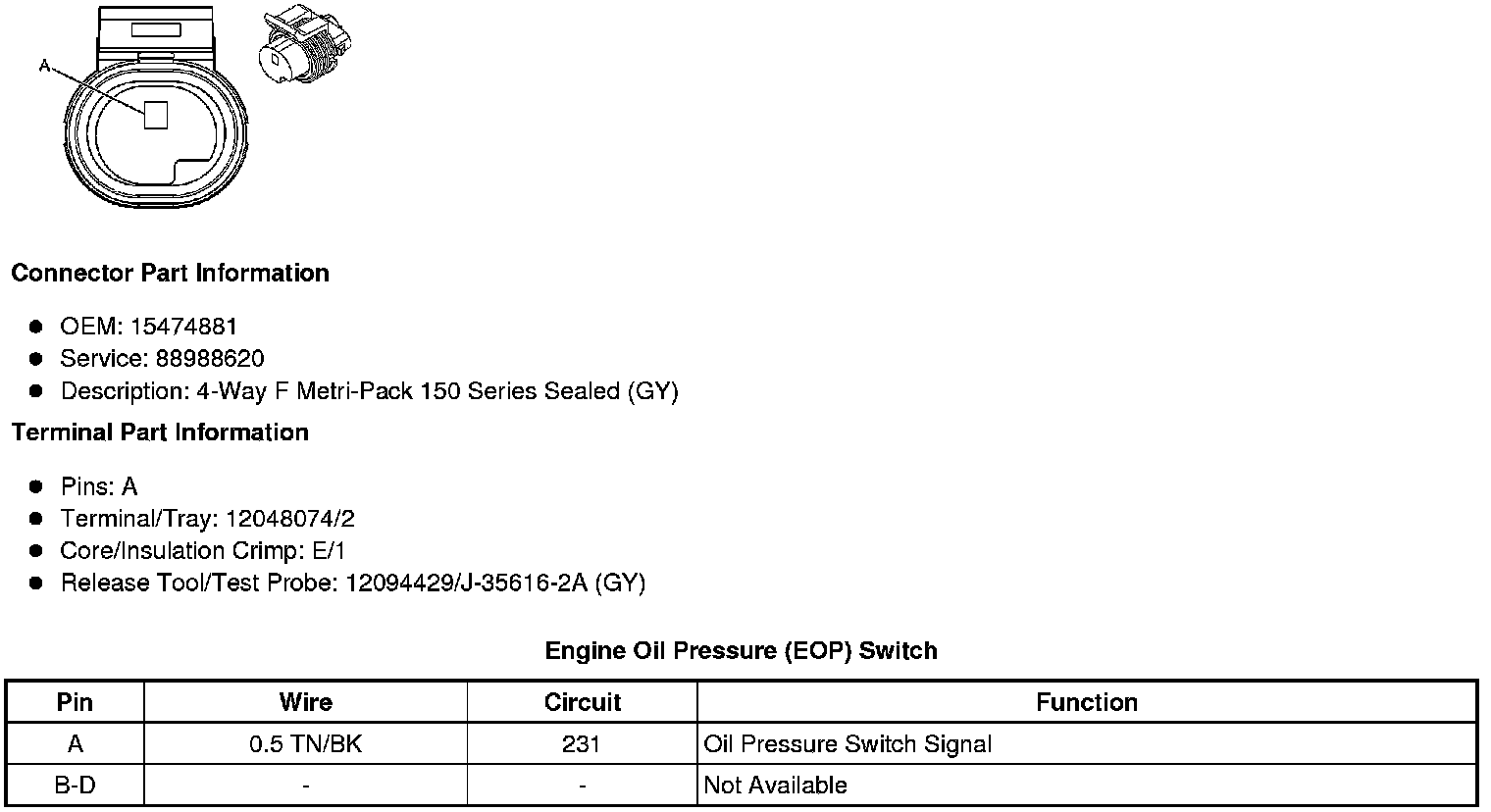

Engine Oil Pressure (EOP) Switch

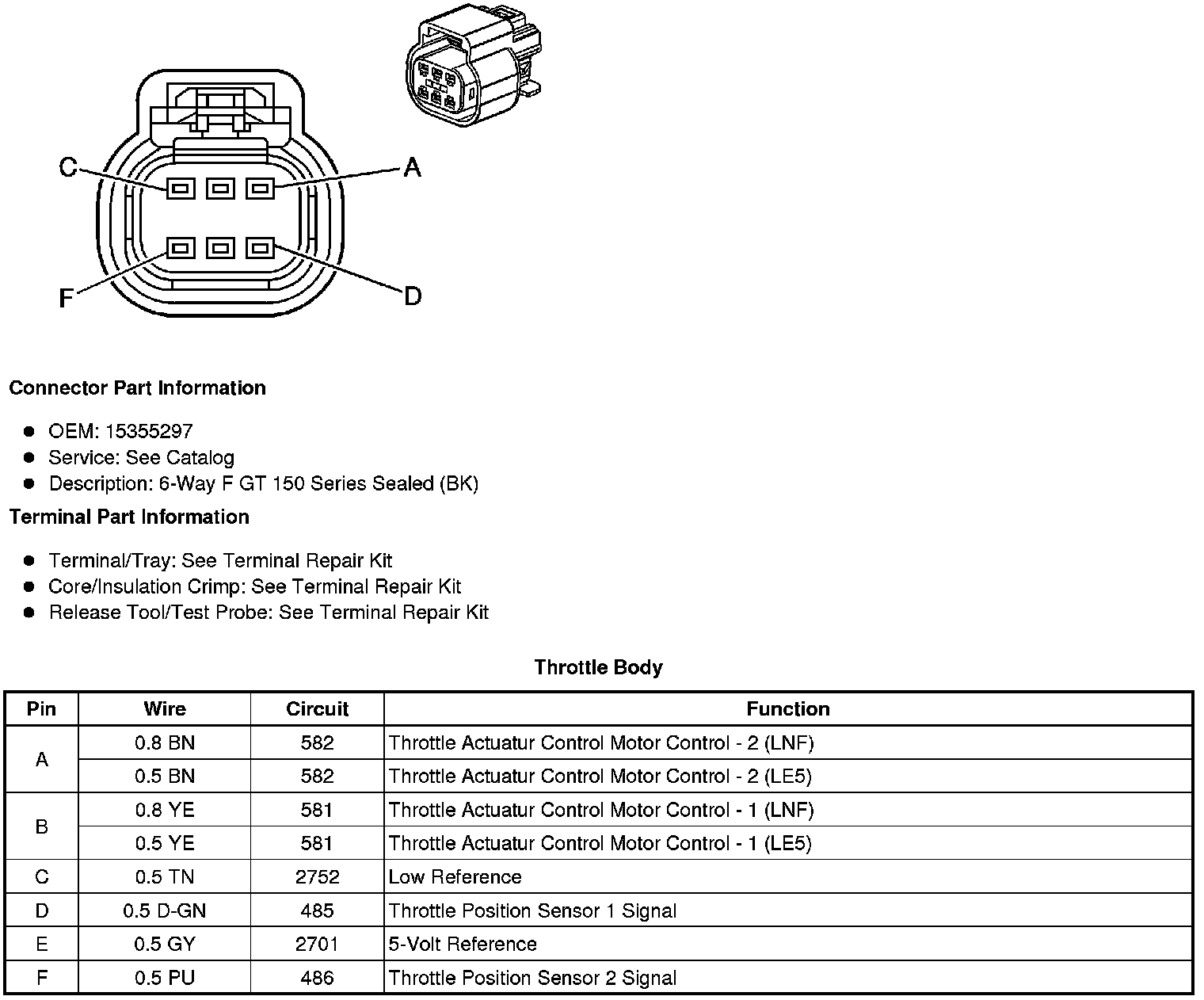

Throttle Body

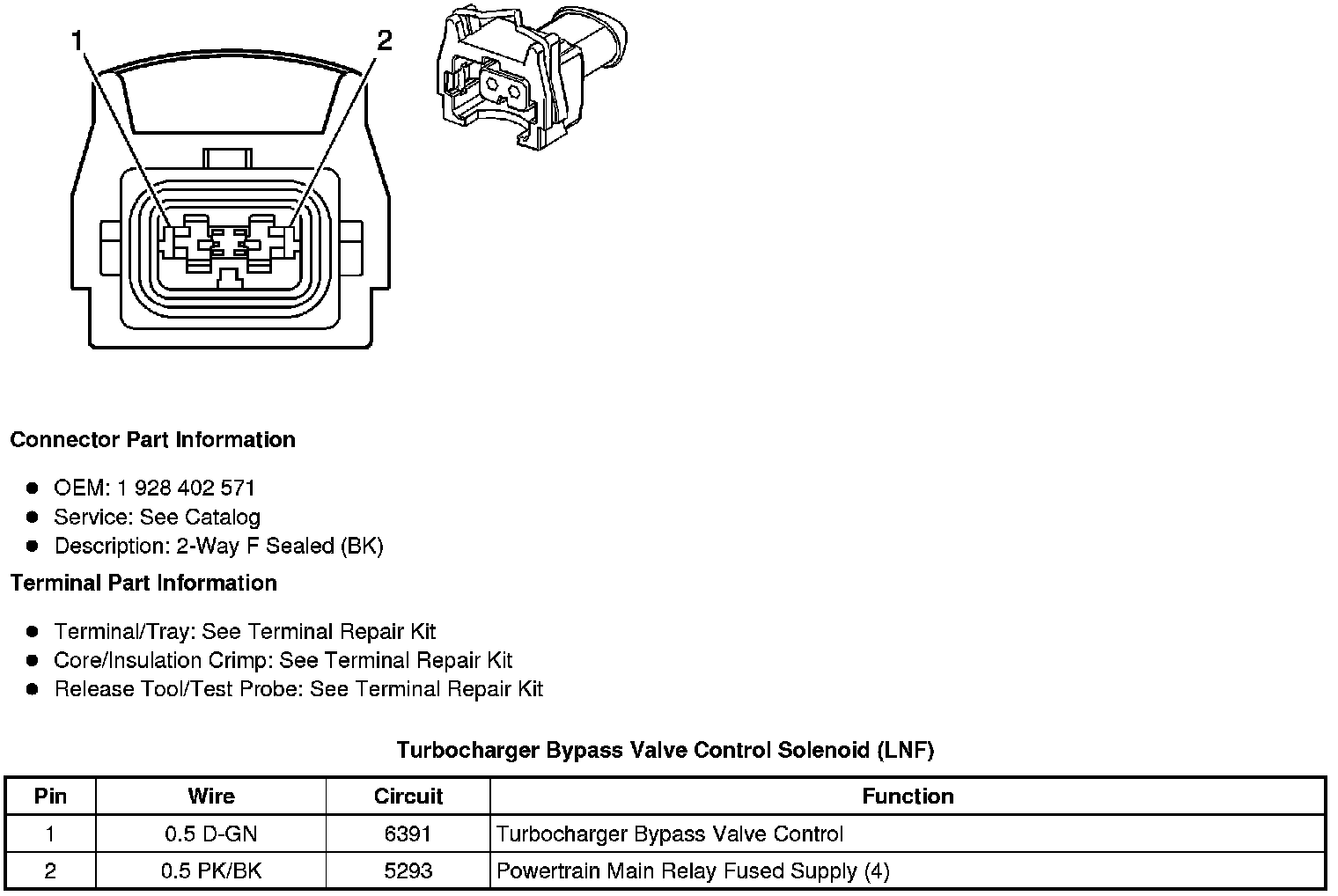

Turbocharger Bypass Valve Control Solenoid (LNF)

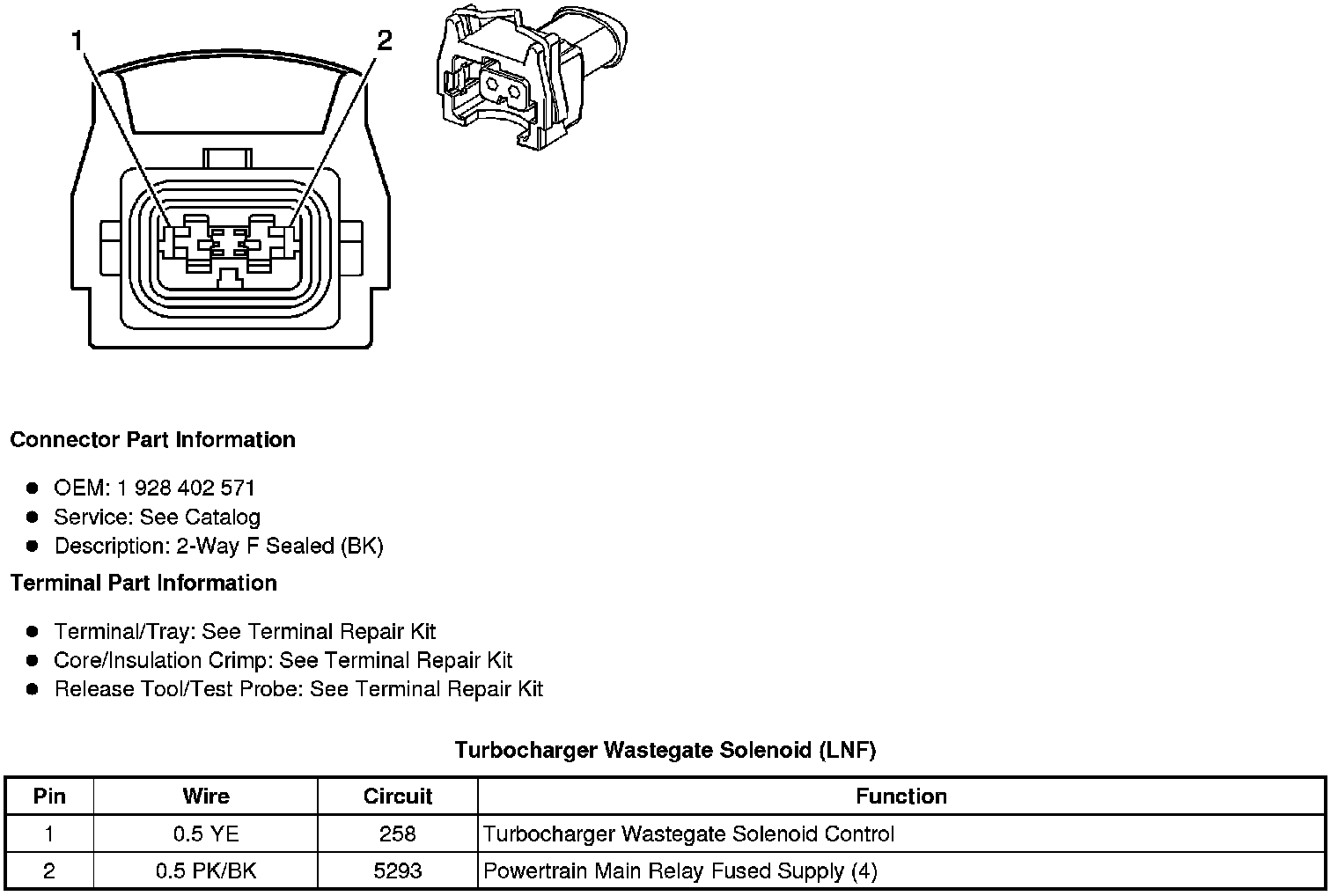

Turbocharger Wastegate Solenoid (LNF)
