Home >> Pontiac >> 2008 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Diagrams >> Electrical Diagrams >> Steering Wheel Secondary/Configurable Control Schematics

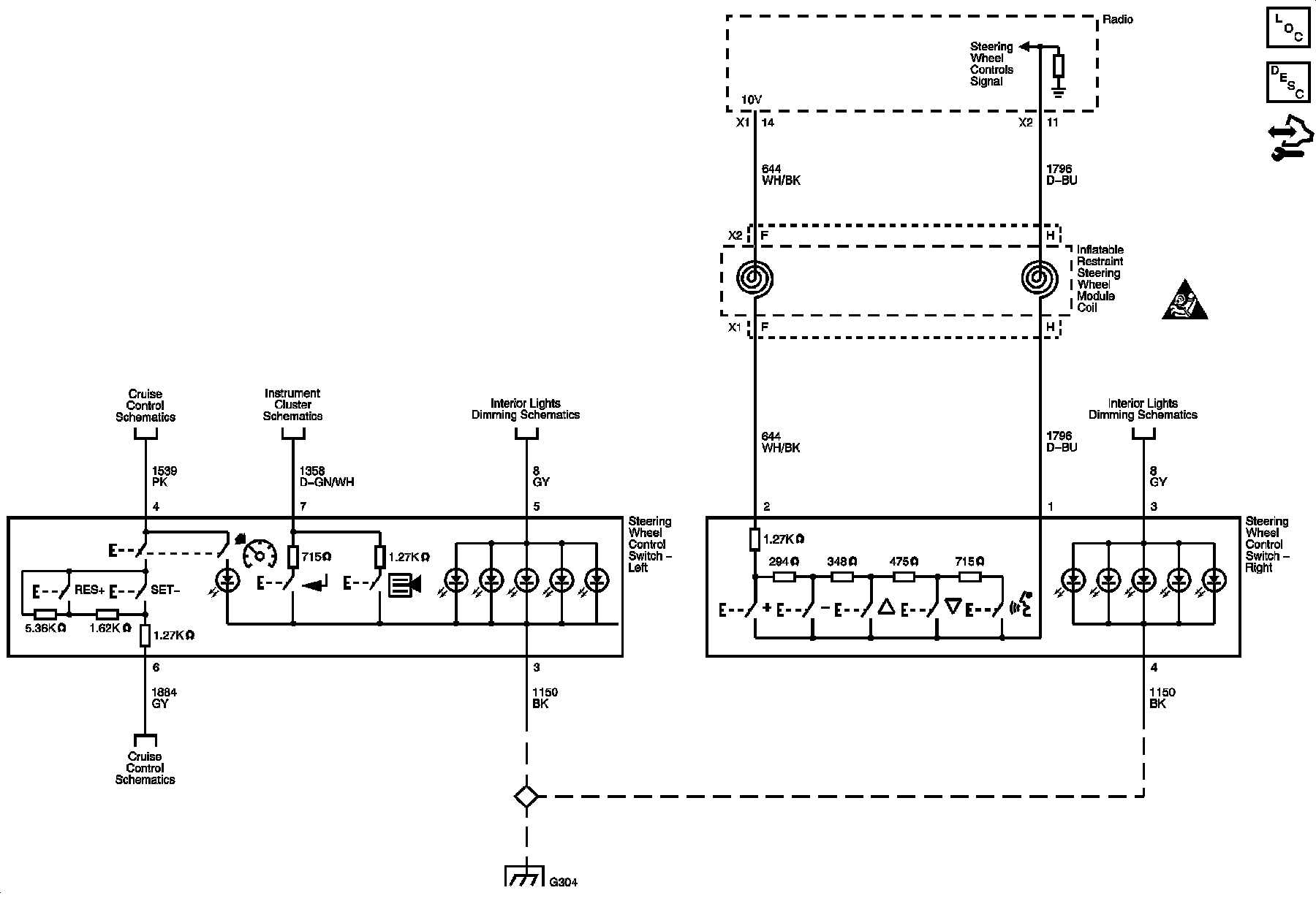

Steering Wheel Secondary/Configurable Control Schematics



Steering Wheel Secondary/Configurable Control Schematics
