Installation Procedure

  1. Install the heat shield to the hood latch cable.
  2. Attach the mechanic's wire to the exterior end of the cable.
  3. Using the mechanic's wire as an aid, guide the cable underneath the sound insulation and pass the exterior portion of the cable through the cowl panel.
  4. Install the cable to the release handle.
  5. Seat the cable grommet to the cowl panel.

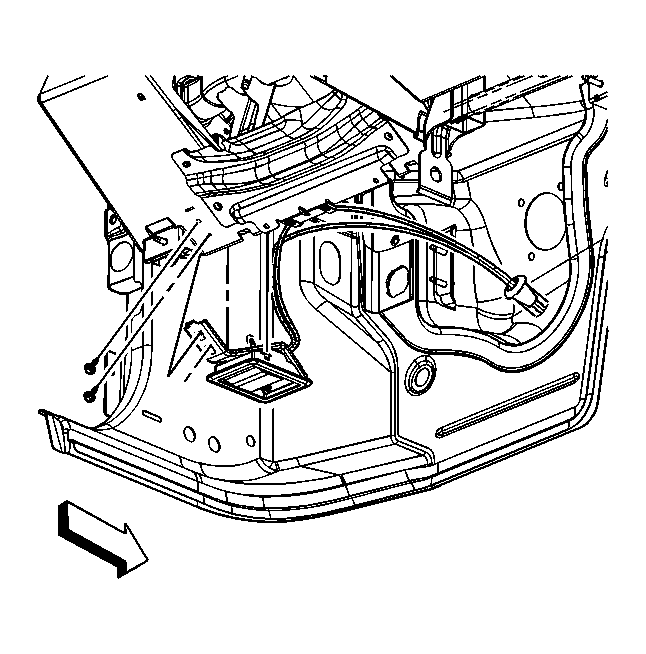

    6. Fig 1: View Of Hood Release Handle-To-Knee Bolster Screws
    GM1581458Courtesy of GENERAL MOTORS CORP.
  6. Install the release handle to the knee bolster.
    7. NOTE: Refer to Fastener Notice .
  7. Install the screws that retain the release handle to the knee bolster.

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).

    8. Fig 2: View Of Hood Latch Release Cable & Hood Latch Assembly
    GM1581456Courtesy of GENERAL MOTORS CORP.
  8. Route the cable as previously noted.
  9. Attach the cable to the retainers on the inner fender.
  10. Install the cable to the hood latch assembly.
  11. Install the hood latch. Refer to Hood Primary and Secondary Latch Replacement .
