Hood Primary Latch Release Cable Handle Replacement

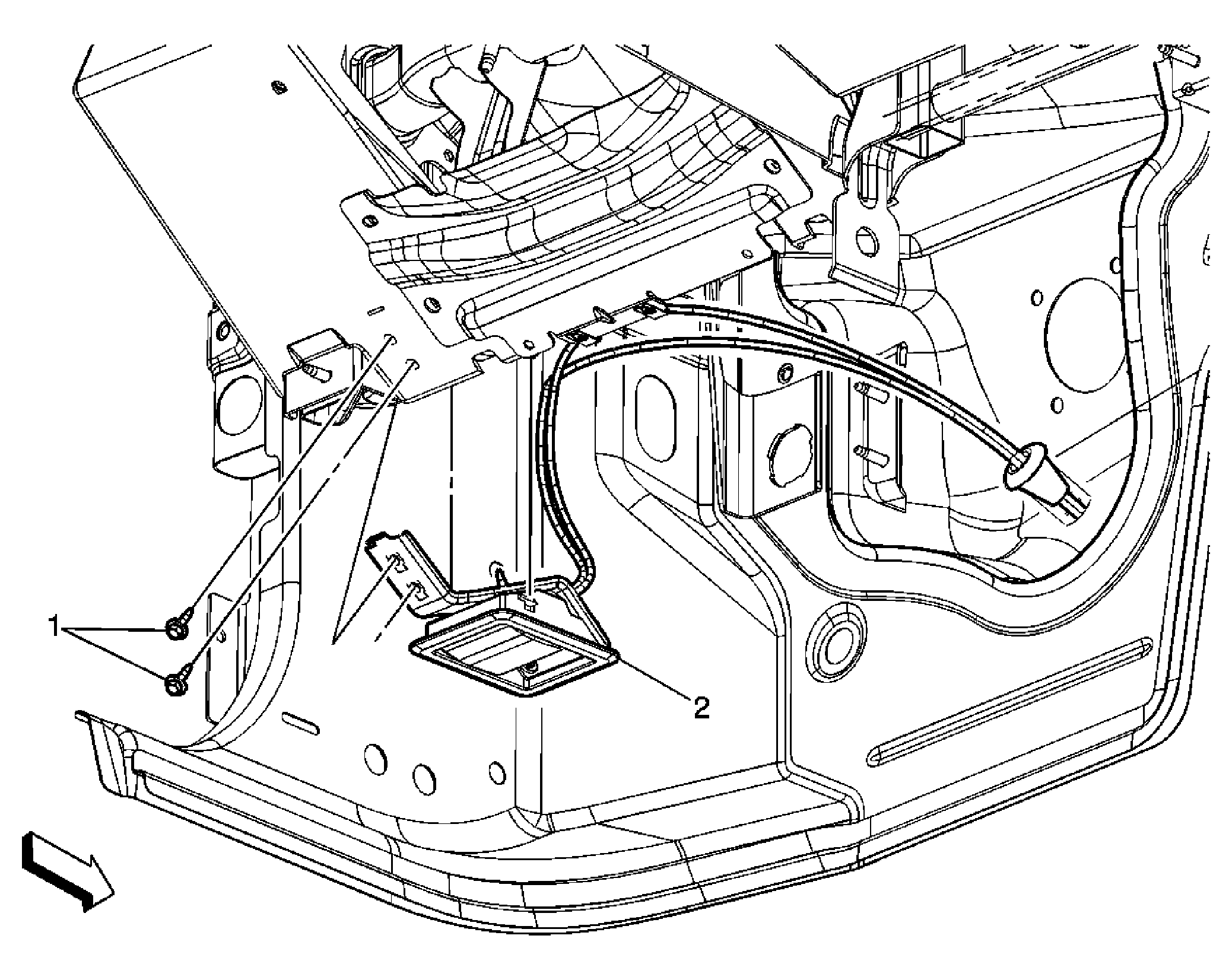

Fig 1: Hood Latch Release Handle & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Hood Latch Release Handle Screws (Qty: 2) Tighten:  10 N.m (89 lb in)
2	Hood Latch Release Handle Tip:  Disconnect release cable.
