Cross-Car Adjustment

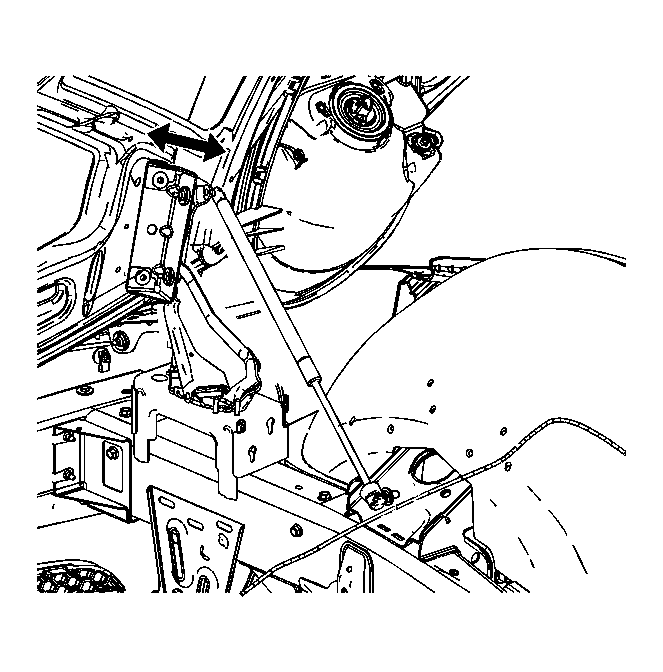

    Fig 1: View Of Cross-Car Adjustment Area
    GM1769807Courtesy of GENERAL MOTORS CORP.
  1. Determine the amount of adjustment needed.
  2. Open the hood.
  3. Loosen the hinge to hood hinge.
  4. Reposition the hinge.
  5. Tighten the hinge bolts.

    Tighten:  Tighten to 25 N.m (19 lb ft).

  6. Inspect the hood alignment.
