Fuel Tank Filler Pipe Housing Replacement

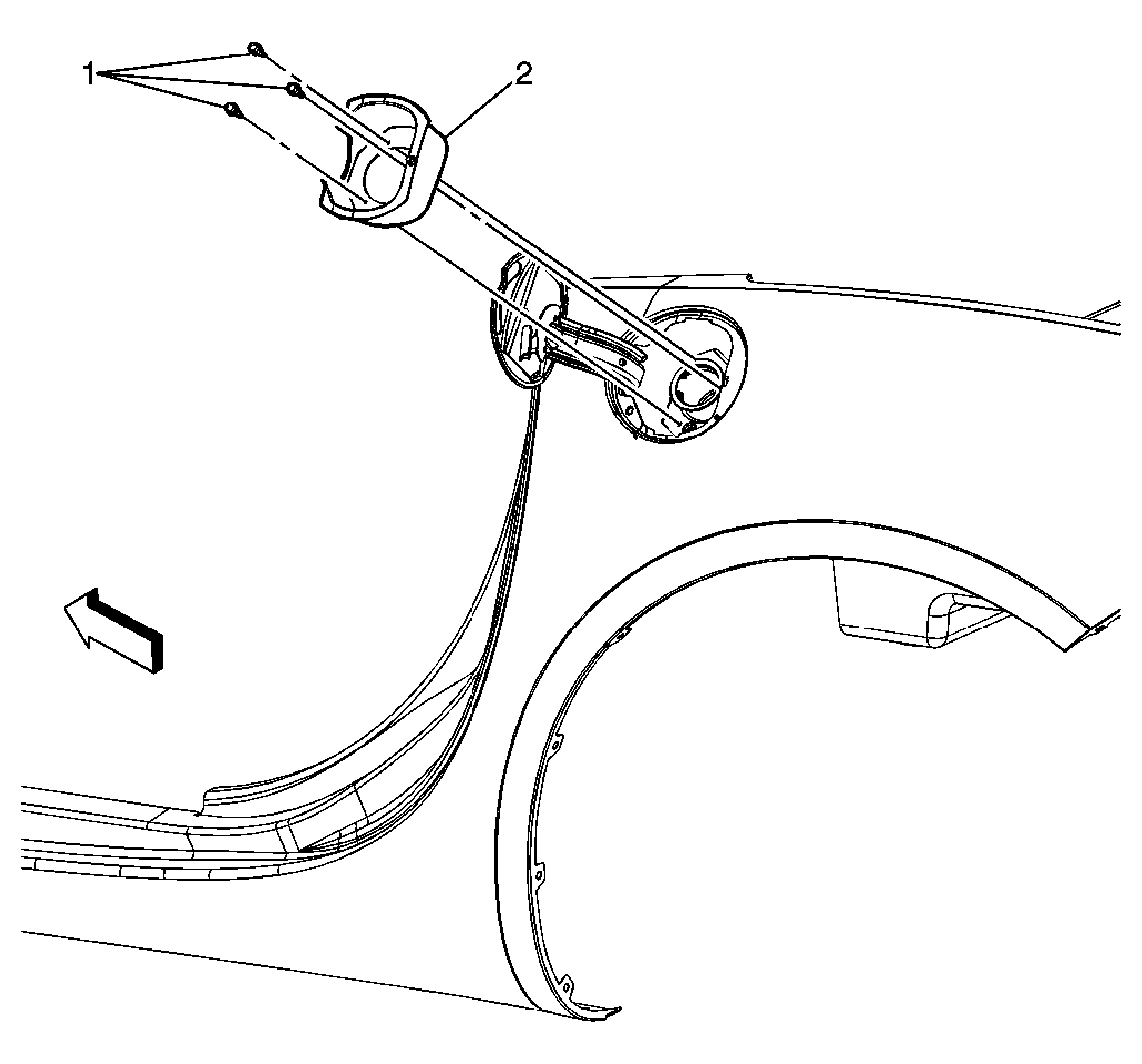

Fig 1: View Of Fuel Filler Pocket & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Filler Pocket Bolts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten:  10 N.m (89 lb in)
2	Fuel Filler Pocket
