Front Side Door Replacement

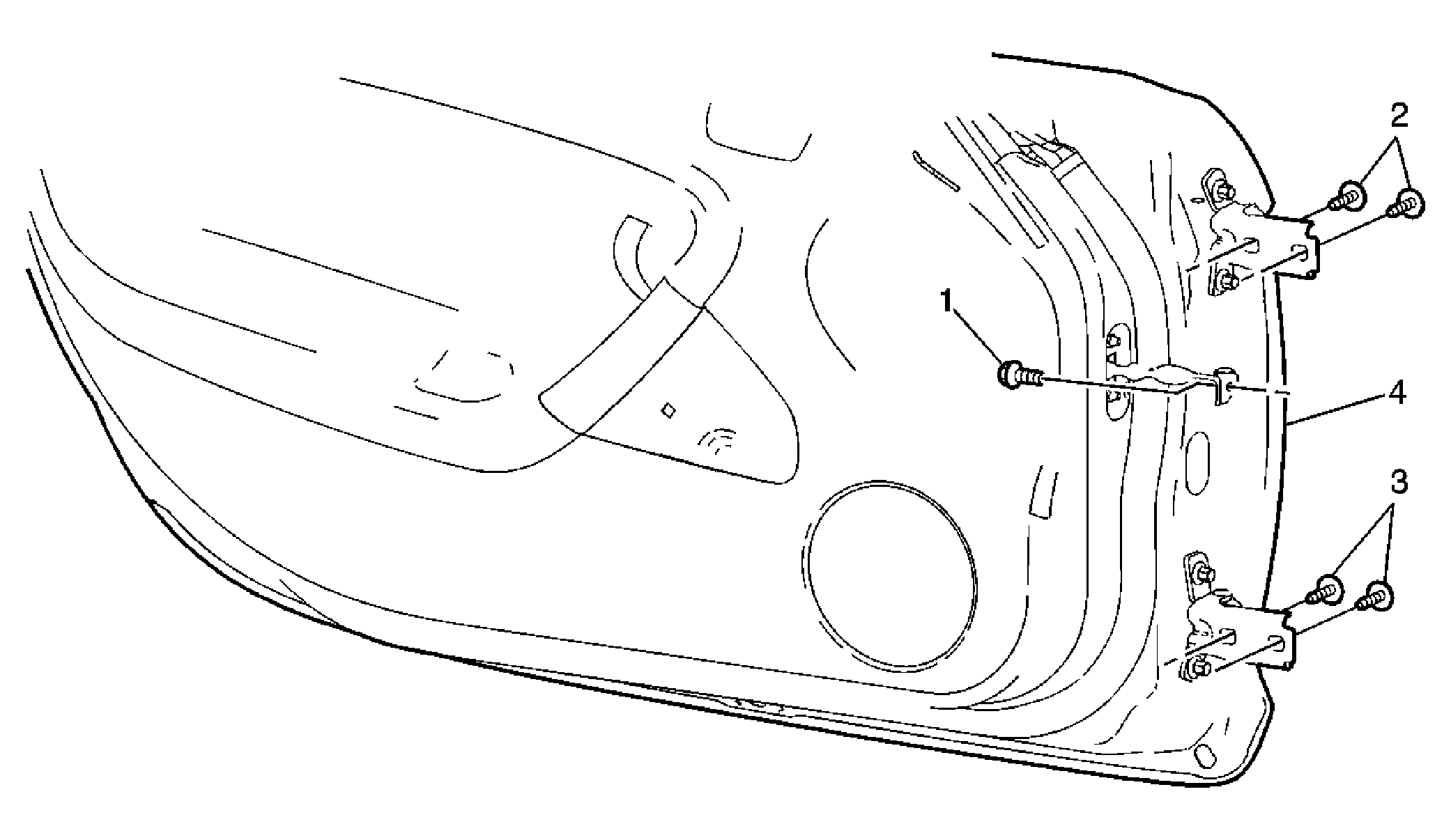

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the right or left front fender. Refer to Front Fender Replacement . |
|
| 1 | Front Side Door Check Link Bolt Tip: Support the door before removing the hinge bolts.
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) |
| 2 | Front Side Door Upper Hinge Bolt (Qty: 2) Tip: Disconnect the door electrical connector. Tighten: 30 N.m (22 lb ft) |
| 3 | Front Side Door Lower Hinge Bolt (Qty: 2) Tighten: 30 N.m (22 lb ft) |
| 4 | Front Side Door Assembly Tip: When replacing the door, it is necessary to transfer all of the internal components. |
