Front Side Door Hinge Replacement

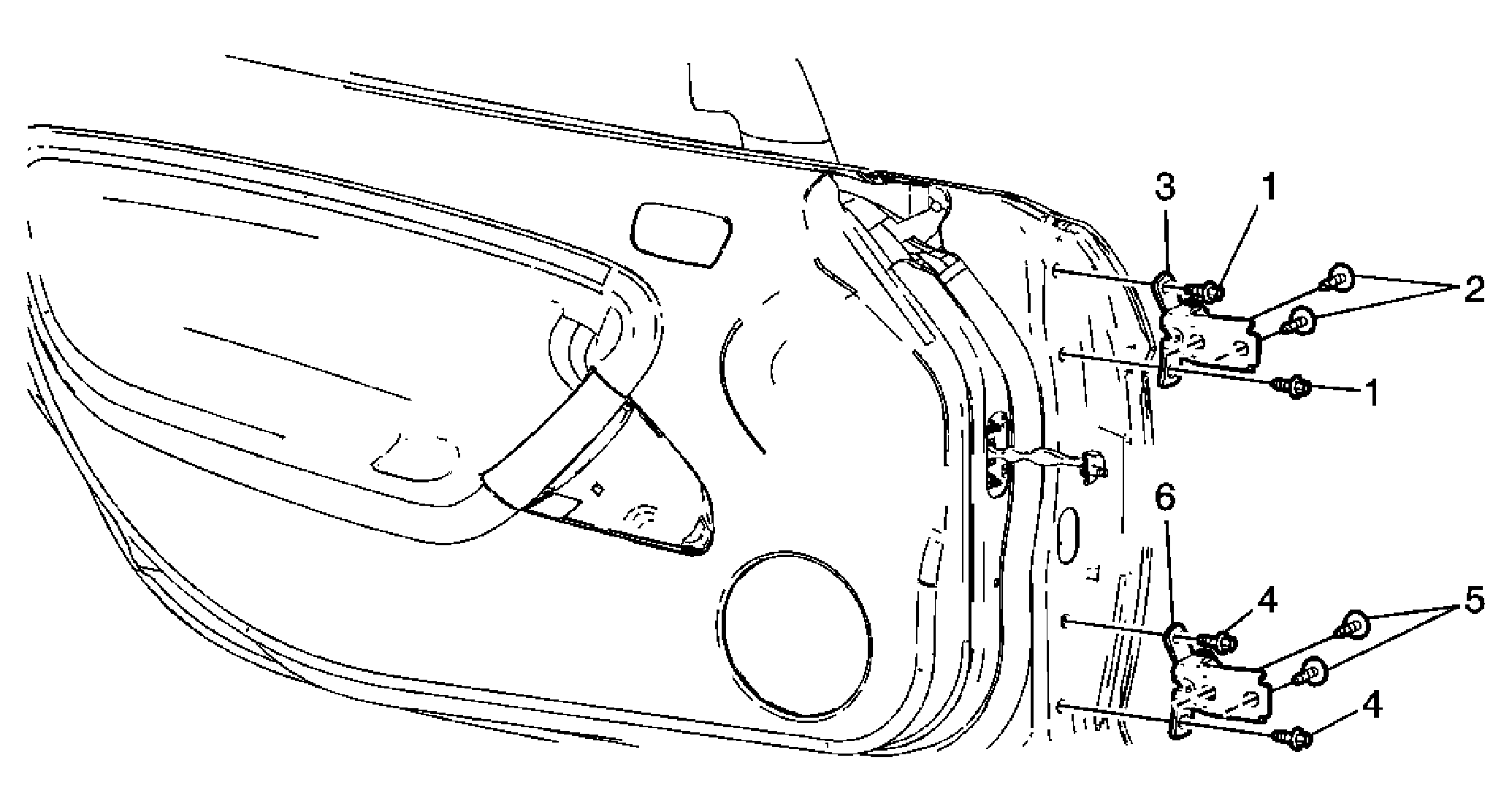

Fig 1: View Of Front Door Hinge & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Front Side Door Upper Hinge Assembly Replacement
1	Front Side Door Hinge Upper Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tip: Replace only one hinge at a time. Tighten: 35 N.m (26 lb ft)
2	Front Side Door Hinge Upper Bolt (Qty: 2) Tighten: 25 N.m (18 lb ft)
3	Front Side Door Upper Hinge Assembly NOTE: Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary.
Front Side Door Lower Hinge Assembly Replacement
4	Front Side Door Hinge Lower Bolt (Qty: 2) Tip: Replace only one hinge at a time. Tighten: 35 N.m (26 lb ft)
5	Front Side Door Hinge Lower Bolt (Qty: 2) Tighten: 25 N.m (18 lb ft)
6	Front Side Door Lower Hinge Assembly NOTE: Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary.
