Instrument Cluster Replacement (Solstice)

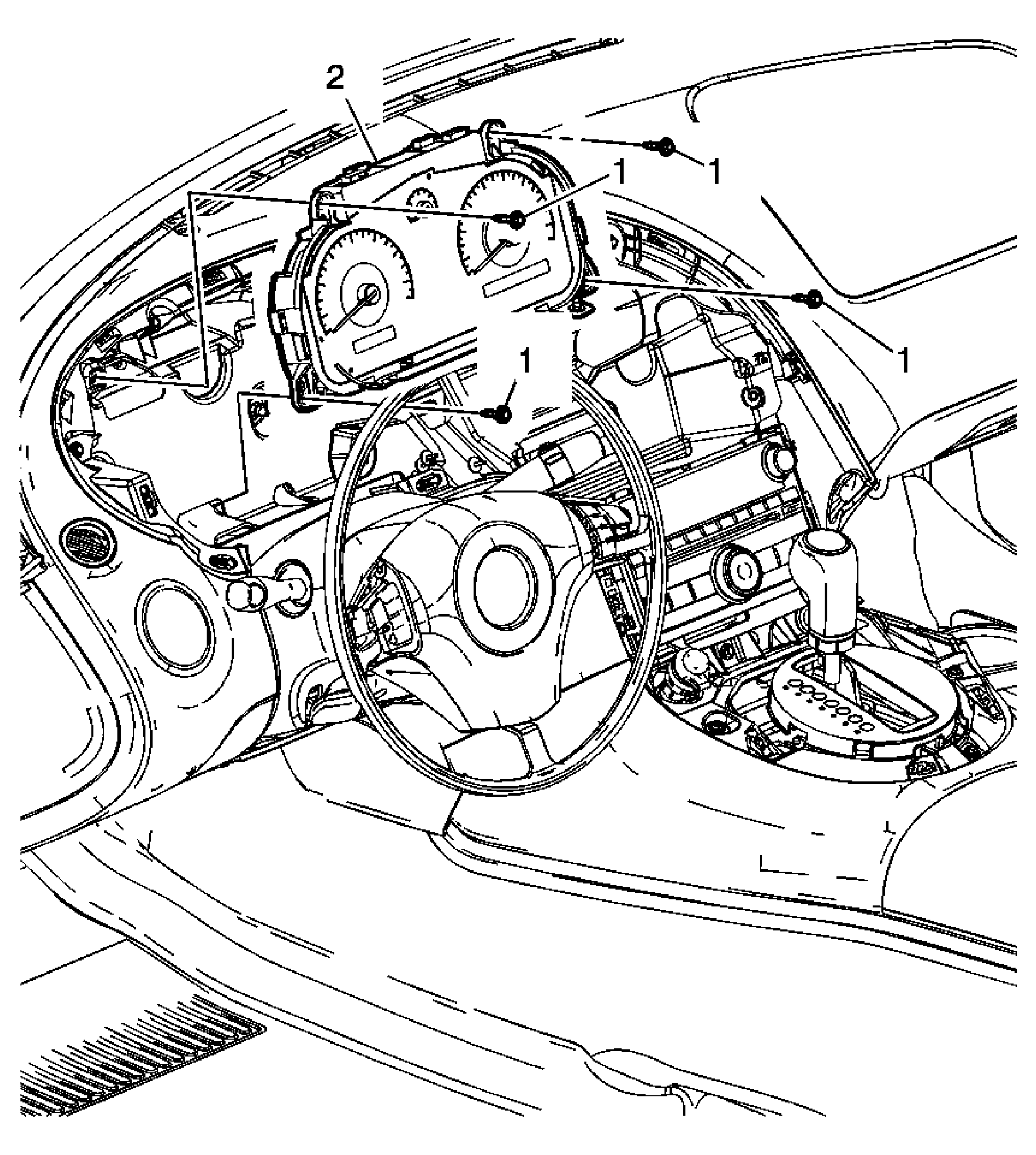

Fig 1: View Of Instrument Panel Cluster & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the instrument panel (I/P) cluster Bezel. Refer to Instrument Cluster Trim Panel Replacement (Solstice) .
1	I/P Cluster Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
2	I/P Cluster Assembly Tip:  Refer to Control Module References for programming and setup information.
