Rear Compartment Front Trim Panel Replacement

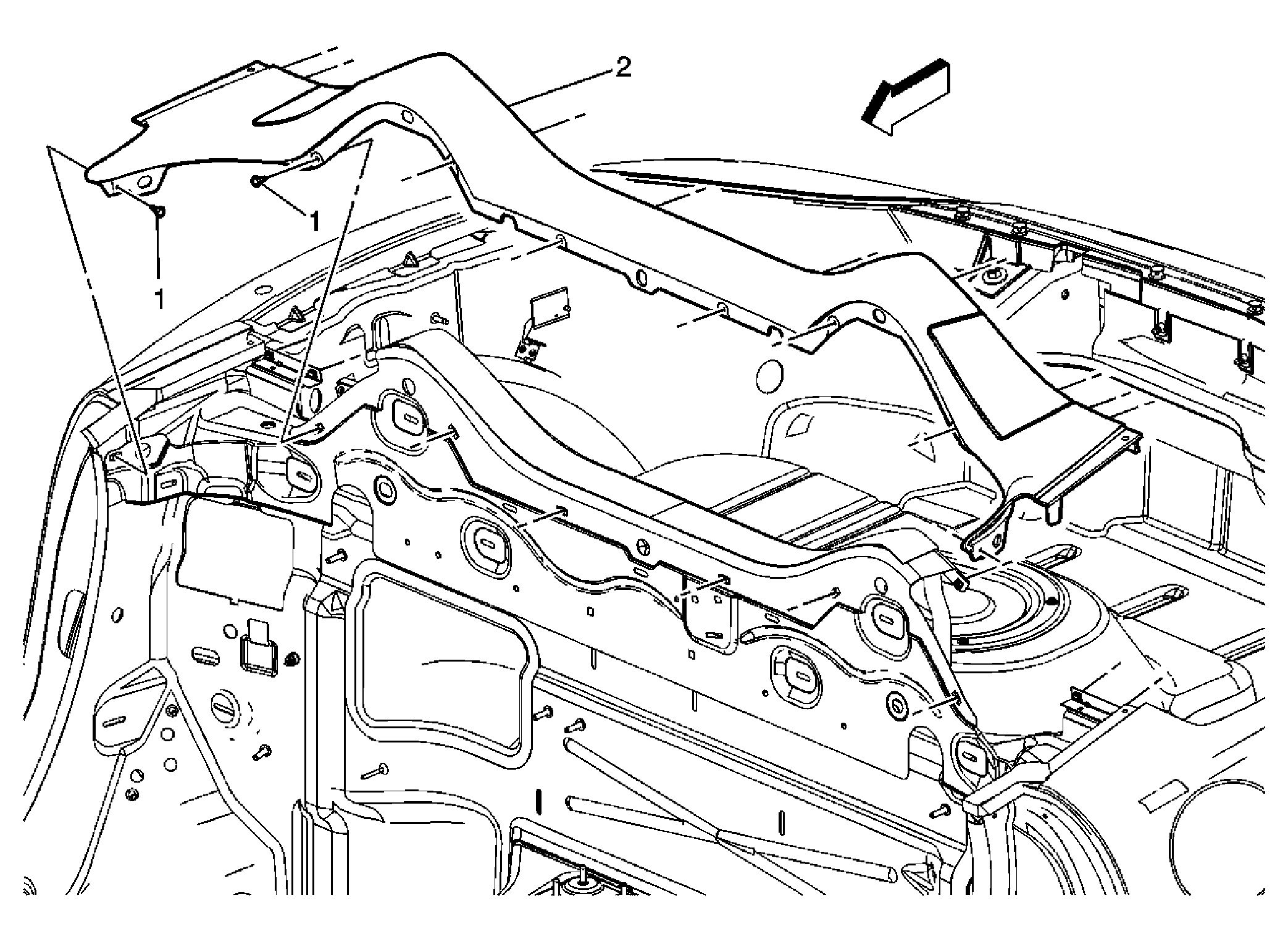

Fig 1: View Of Rear Compartment Front Trim Panel & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Slide front seats forward and tilt seat back down. Remove door sill trim. Refer to Door Sill Plate Replacement . Remove lock pillar trim panel. Refer to Body Lock Pillar Trim Panel Replacement . Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement . Remove the front side door rear weatherstrip. Refer to Front Side Door Rear Weatherstrip Replacement .
1	Rear Compartment Front Trim Panel Screw (Qty: 16) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Rear Compartment Front Trim Panel Assembly

Callout

Component Name

Preliminary Procedure

Slide front seats forward and tilt seat back down.
Remove door sill trim. Refer to Door Sill Plate Replacement .
Remove lock pillar trim panel. Refer to Body Lock Pillar Trim Panel Replacement .
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .
Remove the front side door rear weatherstrip. Refer to Front Side Door Rear Weatherstrip Replacement .

Rear Compartment Front Trim Panel Screw (Qty: 16)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Rear Compartment Front Trim Panel Assembly
