Instrument Panel Accessory Trim Plate Replacement (SKY)
Instrument Panel Accessory Trim Plate Replacement (SKY)

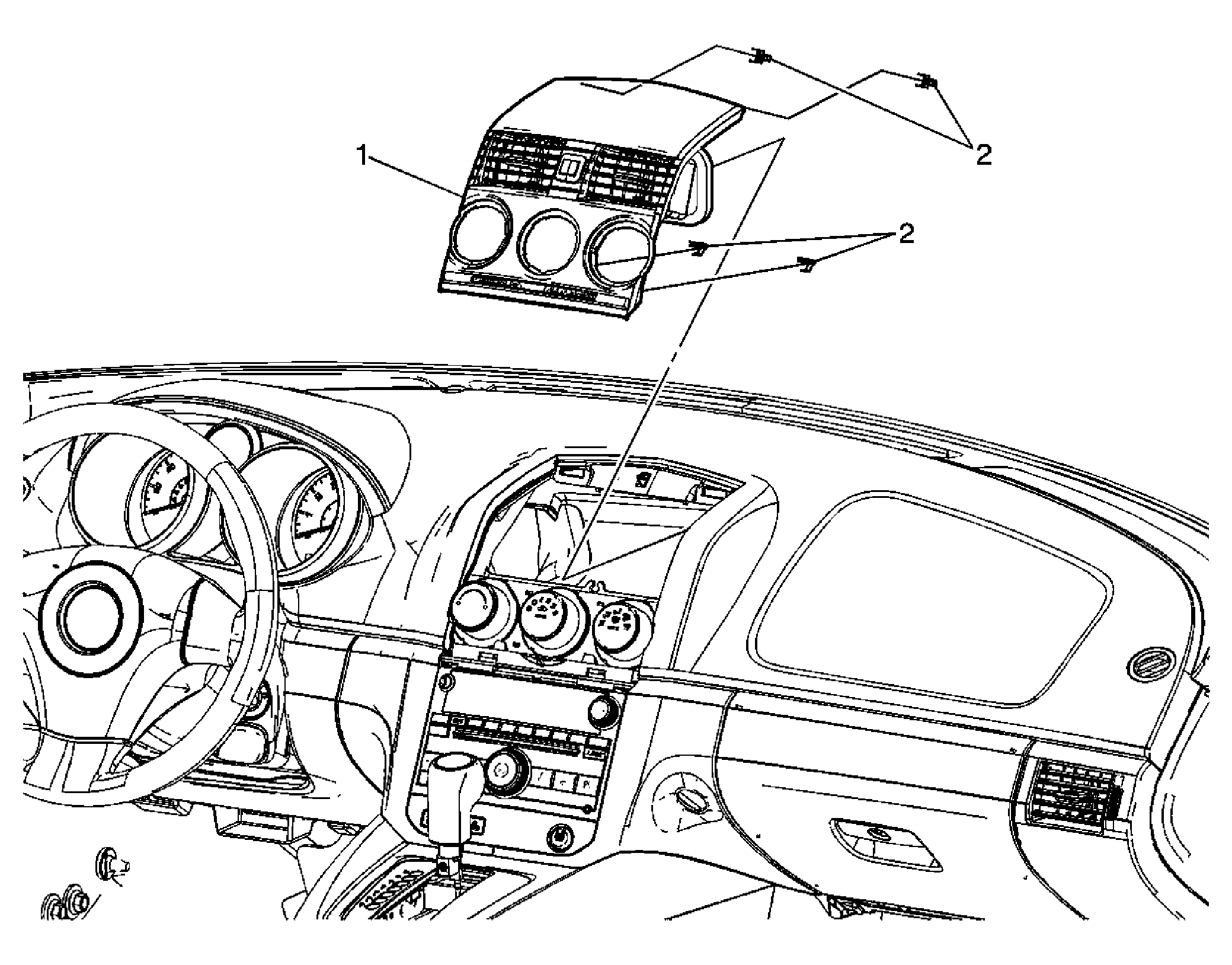

Fig 1: View Of Instrument Panel Accessory Trim Plate & Retainer Clips
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Instrument Panel (I/P) Accessory Trim Plate Assembly
Procedures
Disconnect the electrical connectors.
When replacing the accessory trim plate, transfer all necessary components.
2
Retainer Clip (Qty: 4)
