Rear Compartment Courtesy Lamp Replacement

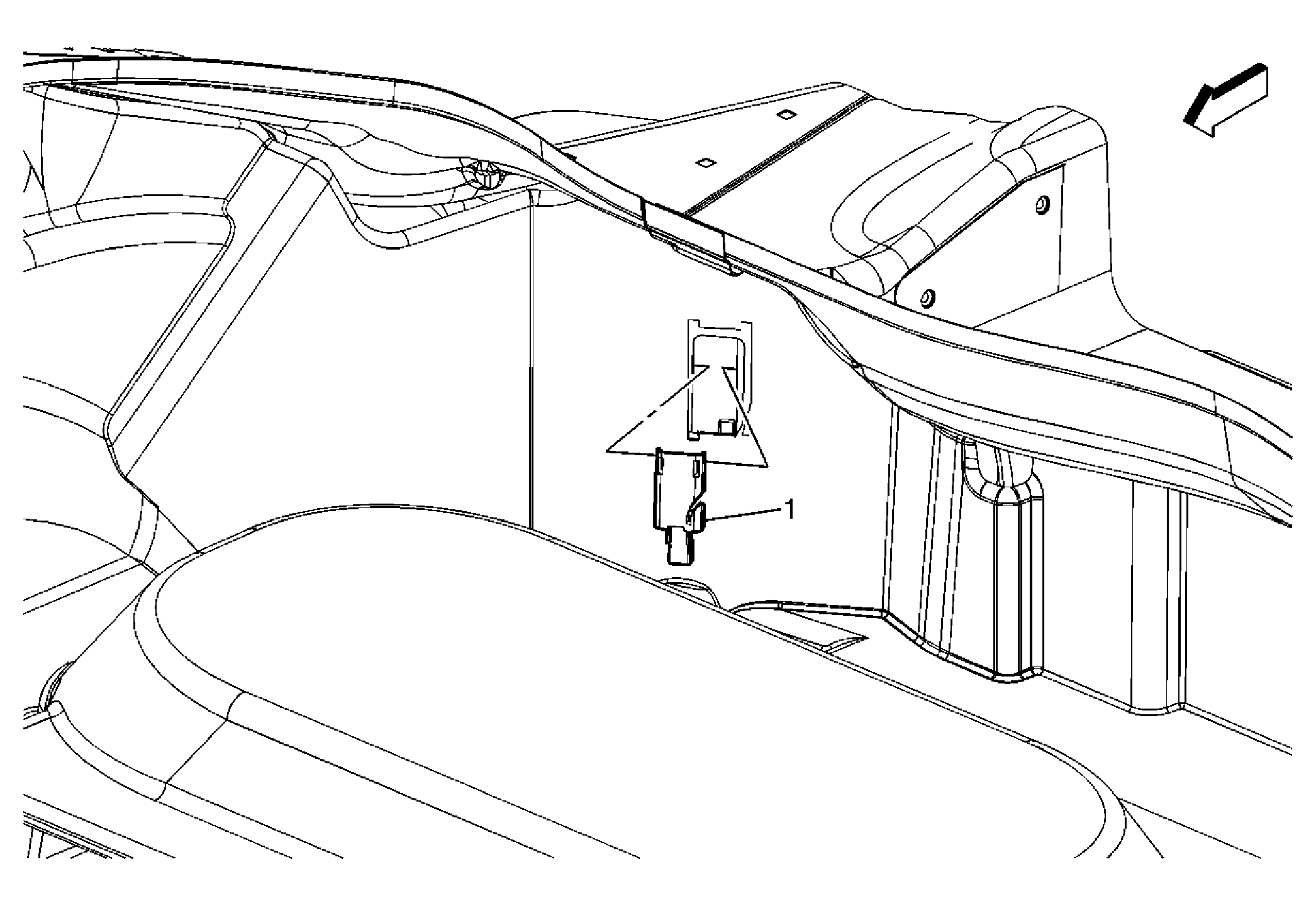

Fig 1: View Of Rear Compartment Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Rear Compartment Lamp Tip:  Use a small flat-bladed tool to release the lamp assembly from the rear compartment. Disconnect the electrical connector. The bulb can be removed without removing the lamp assembly.
