Removal Procedure

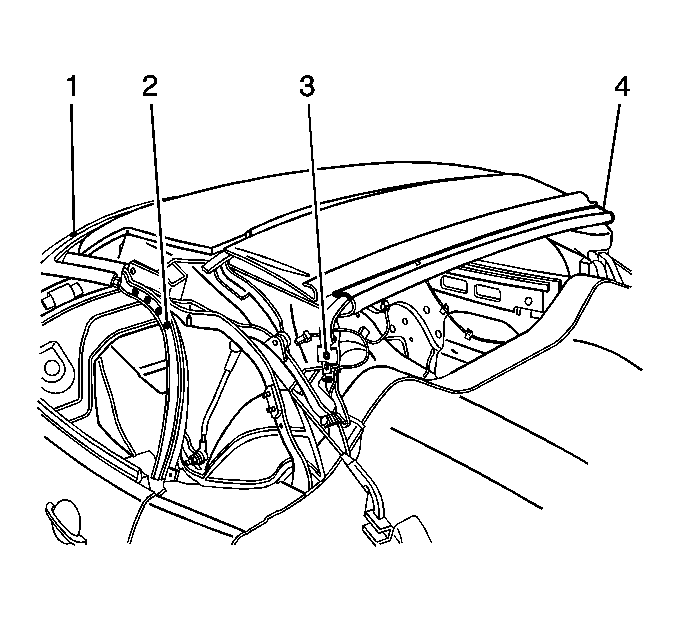

    Fig 1: Identifying Folding Top Components
    GM1810181Courtesy of GENERAL MOTORS CORP.
  1. Remove the folding top cover. Refer to Folding Top Cover Replacement .
  2. Drill out the rivets as follows:
    1. Rear rail seal retainer support panel, 4 rivets per side (2).
    2. Number 4 bow, one rivet per side (3).

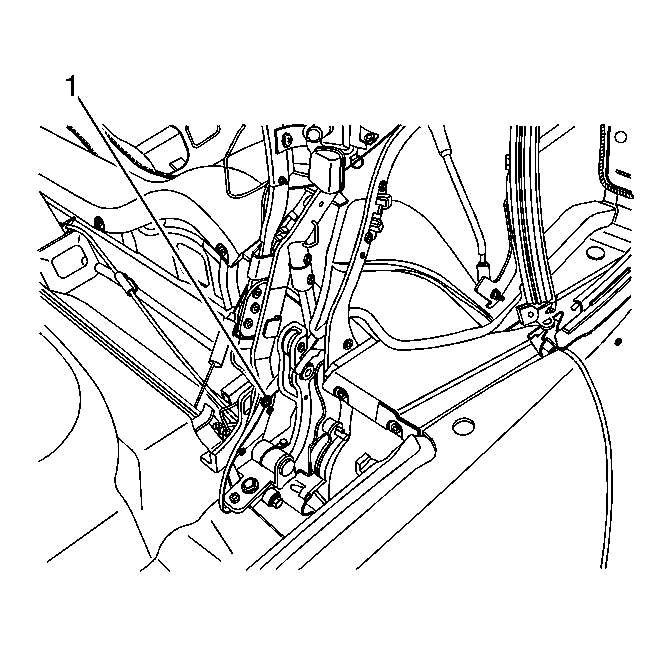

    3. Fig 2: Identifying Balance Link Rivet
    GM1810183Courtesy of GENERAL MOTORS CORP.
  3. Remove the rivet from the balance link, one per side (1).
  4. Remove the headliner screws from the number 1 bow.
  5. Disengage the J-hooks from the number 3 and 4 bows of the headliner.
  6. Remove the plastic retainer to the number 4 bow.
